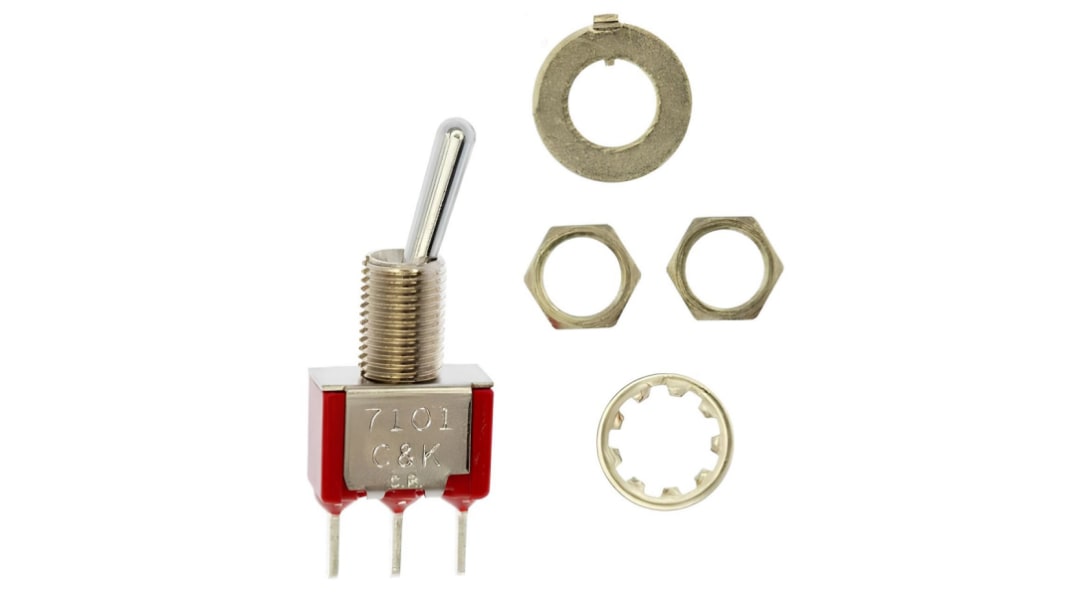

C & K Toggle Switch, PCB Mount, On-On, SPDT, Solder Pin Terminal
- RS Stock No.:
- 257-0599
- Distrelec Article No.:
- 302-59-097
- Mfr. Part No.:
- 7101SYCQE
- Brand:
- C & K
Bulk discount available
Subtotal (1 unit)*
$14.26
(exc. GST)
$15.69
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 143 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | $14.26 |
| 10 - 49 | $13.15 |
| 50 - 99 | $12.31 |
| 100 - 249 | $11.73 |
| 250 + | $11.16 |
*price indicative
- RS Stock No.:
- 257-0599
- Distrelec Article No.:
- 302-59-097
- Mfr. Part No.:
- 7101SYCQE
- Brand:
- C & K
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Contact Configuration | SPDT | |
| Product Type | Toggle Switch | |
| Switch Operation | On-On | |
| Switch Contact Current | 5A | |
| Mount Type | PCB | |
| Terminal Type | Solder Pin | |
| IP Rating | IP67 | |
| Illuminated | No | |
| Minimum Operating Temperature | -30°C | |
| Actuator Length | 10.67mm | |
| Actuator Material | Brass Chrome Plated | |
| Maximum Operating Temperature | 85°C | |
| Series | 7000 | |
| Length | 28.45mm | |
| Height | 12.7mm | |
| Standards/Approvals | CSA, UL, RoHS | |
| Width | 6.86mm | |
| Mechanical Life | 100000Cycles | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Contact Configuration SPDT | ||
Product Type Toggle Switch | ||
Switch Operation On-On | ||
Switch Contact Current 5A | ||
Mount Type PCB | ||
Terminal Type Solder Pin | ||
IP Rating IP67 | ||
Illuminated No | ||
Minimum Operating Temperature -30°C | ||
Actuator Length 10.67mm | ||
Actuator Material Brass Chrome Plated | ||
Maximum Operating Temperature 85°C | ||
Series 7000 | ||
Length 28.45mm | ||
Height 12.7mm | ||
Standards/Approvals CSA, UL, RoHS | ||
Width 6.86mm | ||
Mechanical Life 100000Cycles | ||
The C & K toggle switch has 5 A current rating and 120 V voltage rating, SPDT contact configuration with panel mounting type.
Epoxy terminal-seal compatible with bottom wash cleaning
Wide variety of actuator and termination options
RoHS compliant models available
