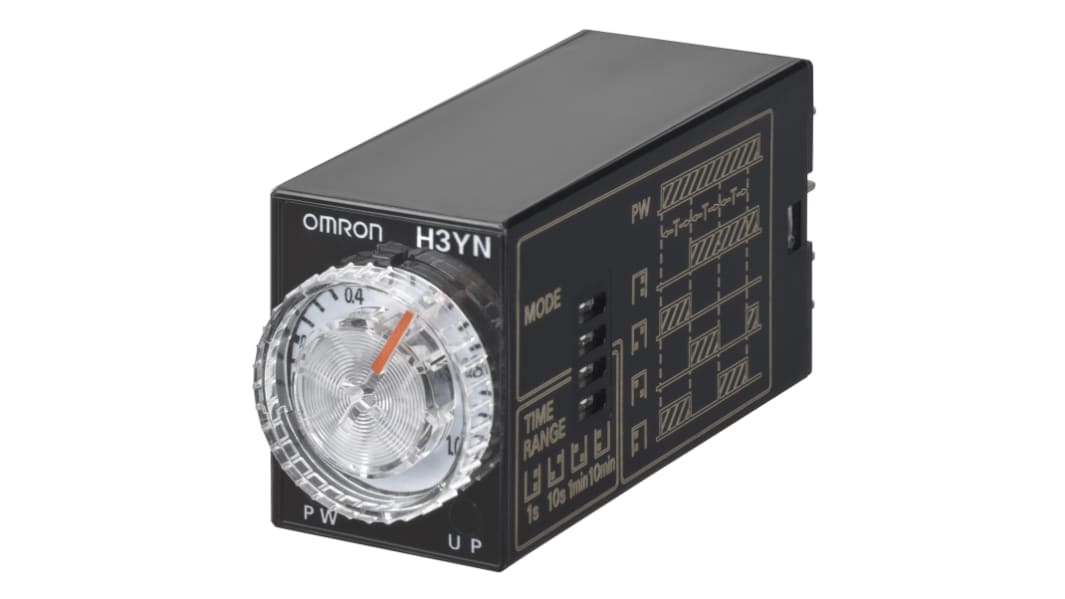

Omron H3YN Series Panel Timer Relay, 4-Contact, 125 V dc 24V ac, 0.1 min to 10 h, Multifunction-Function, 4PDT Switch

RS Stock No.:: 106-6266
Mfr. Part No.:: H3YN-41-B AC24
Brand:: Omron

Omron H3YN Series Panel Timer Relay, 4-Contact, 125 V dc 24V ac, 0.1 min to 10 h, Multifunction-Function, 4PDT Switch

Subtotal (1 unit)*

$165.77

(exc. GST)

$182.35

(inc. GST)

FREE delivery for orders over $80.00 ex GST

Temporarily out of stock

Shipping from 31 August 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$165.77

*price indicative

RS Stock No.:: 106-6266
Mfr. Part No.:: H3YN-41-B AC24
Brand:: Omron

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Product Type	Timer Relay
	Mount Type	Panel
	Function	Multifunction
	Time Range	0.1 min to 10 h
	Number of Contacts	4
	Switching Voltage	250V ac
	Number of Timer Functions	Multifunction
	Contact Configuration	4PDT
	IP Rating	IP40
	Supply AC Voltage	24V ac
	Supply DC Voltage	125 V dc
	Contact Current	5A
	Minimum Operating Temperature	-10°C
	Terminal Type	Push-in
	Maximum Operating Temperature	55°C
	Standards/Approvals	EN 61812-1, CCC, UL 508, IEC 60664-1, Lloyds, CE, CSA C22.2 No. 14
	Width	56.6mm
	Length	21.5mm
	Height	28mm
	Series	H3YN

	Select all
	Brand Omron
	Product Type Timer Relay
	Mount Type Panel
	Function Multifunction
	Time Range 0.1 min to 10 h
	Number of Contacts 4
	Switching Voltage 250V ac
	Number of Timer Functions Multifunction
	Contact Configuration 4PDT
	IP Rating IP40
	Supply AC Voltage 24V ac
	Supply DC Voltage 125 V dc
	Contact Current 5A
	Minimum Operating Temperature -10°C
	Terminal Type Push-in
	Maximum Operating Temperature 55°C
	Standards/Approvals EN 61812-1, CCC, UL 508, IEC 60664-1, Lloyds, CE, CSA C22.2 No. 14
	Width 56.6mm
	Length 21.5mm
	Height 28mm
	Series H3YN

Datasheet

COO (Country of Origin):: CN

Omron H3YN Series Timer Relay, 24V AC Supply Voltage, 0.1min to 10h Time Range - H3YN-41-B AC24

This timer relay provides adjustable timing control for automation and control panels, delivering multifunction timing capabilities for a range of industrial tasks. It is designed for panel mounting and intended for use in electrical, mechanical and electronics systems where selectable timing behaviour and multiple changeover contacts are required.

Features and Benefits:

• Four independent changeover contacts supporting 5A switching capability • Broad timing adjustment from 0.1min to 10h for varied cycle requirements • Push-in terminals for Faster wiring and reduced installation time • Rated switching up to 250V AC to handle common control voltages • Operates between -10°C and 55°C for typical industrial environments • Complies with EN 61812-1 and multiple international approvals for system compatibility

Applications

• Suitable for sequencing control in manufacturing machinery • Ideal for timed control of conveyor and material handling systems • Used with motor starters for delayed start and stop functions • Can be used for lamp and indicator timing in control cabinets • Suitable for retrofit of legacy panel controllers requiring multifunction timing

What supply options are available for this device?

It accepts a 24V AC supply and also supports 125V DC input for installations with different control supplies.

How is the device mounted and connected within a control panel?

It is designed for panel mounting and uses push-in style terminals to simplify connecting conductors without additional ferrules.

What contact arrangement does it provide for control circuits?

The unit provides four changeover contacts configured to enable multiple independent switching circuits with 5A current capability.

Which environmental protection level does it offer?

The enclosure has an IP40 rating suitable for use in enclosed panels where protection from large solid objects is required.
