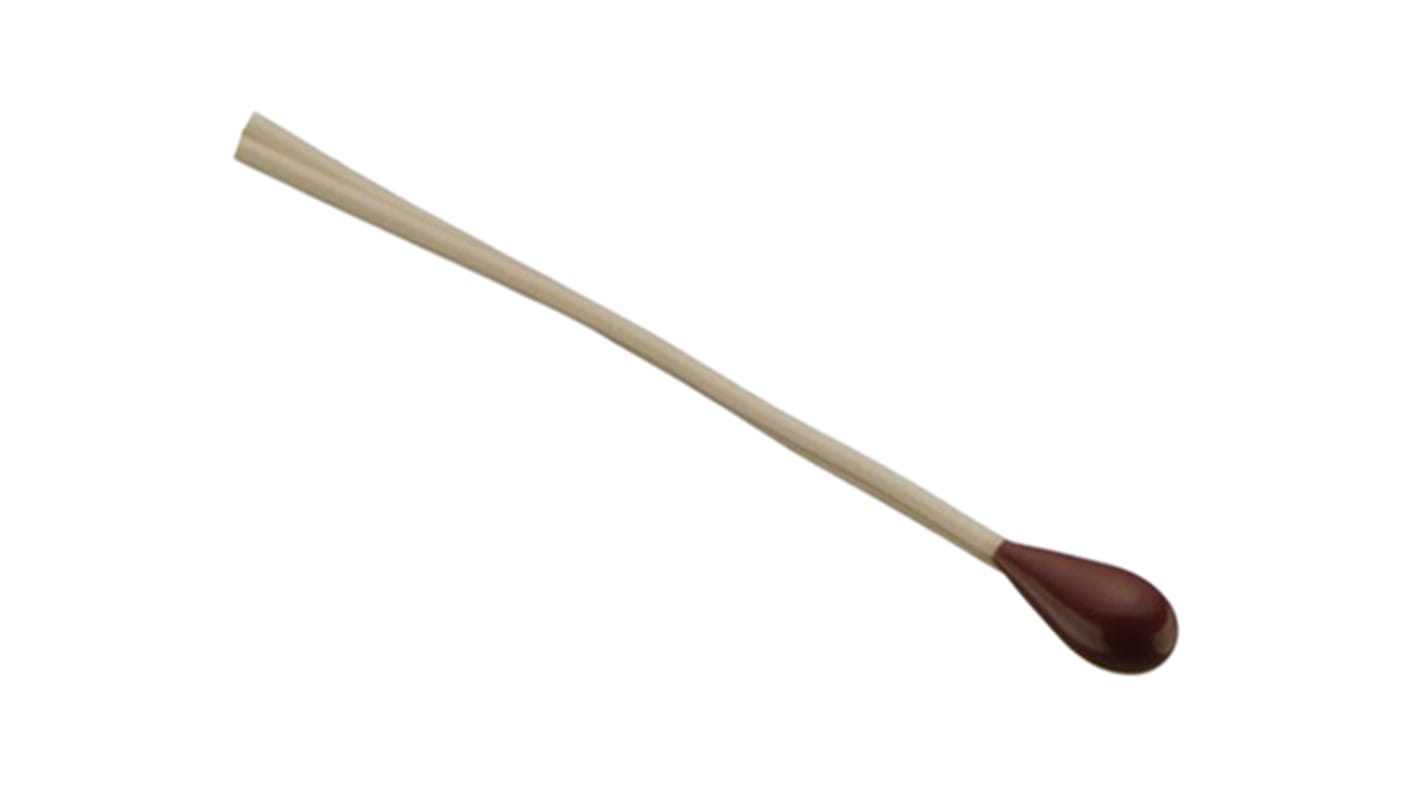

TE Connectivity Thermistor, 2.252kΩ Resistance, NTC Type, 2.4 x 76mm
- RS Stock No.:
- 893-7234
- Mfr. Part No.:
- GA2.2K3A1IA
- Brand:
- TE Connectivity
10 In Global stock for delivery within 5 working day(s)
11 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$12.96
(exc. GST)
$14.26
(inc. GST)
| Units | Per unit |
| 1 - 9 | $12.96 |
| 10 - 49 | $12.86 |
| 50 + | $12.57 |
- RS Stock No.:
- 893-7234
- Mfr. Part No.:
- GA2.2K3A1IA
- Brand:
- TE Connectivity
Technical data sheets
Legislation and Compliance
Product Details
TE Connectivity Series II Thermistors
TE Connectivity's MEAS Series II thermistors offer a choice of four temperature tolerance classifications. The white PTFE insulation device is encapsulated in thermally conductive Stycast epoxy resin and the BetaCURVE chip is soldered to 30 AWG solid silver plated copper leads. TE Connectivity Series II thermistors offer proven stability and reliability and feature a rapid time response. Suitable applications for these thermistors include general instrumentation, tight tolerance instrumentation, assembly into probes, temperature sensing, control and compensation.
Interchangeable
Reliable and stable
PTFE insulated lead wires
Thermally conductive epoxy coating
Temperature range of -40ºC to 125ºC
Reliable and stable
PTFE insulated lead wires
Thermally conductive epoxy coating
Temperature range of -40ºC to 125ºC
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Temperature Coefficient Type | NTC |
| Thermal Coefficient | 4.39%/°C |
| Thermal Time Constant | 1s |
| Resistance @ 25 °C | 2.252kΩ |
| Tolerance | ±0.1% |
| Length | 76mm |
| Depth | 2.4mm |
| Dimensions | 2.4 x 76mm |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
