Temperature Measurements Require No External Components
Measure Temperatures from -55°C to +125°C (-67°F to +257°F)
DS1626: ±0.5°C Accuracy from 0°C to +70°C
DS1726: ±1°C Accuracy from -10°C to +85°C
Output Resolution is User Selectable to 9, 10, 11, or 12 Bits
Wide Power-Supply Range (2.7V to 5.5V)
Convert Temperature to Digital Word in 750ms (max)
Stand-Alone Thermostat Capability
Thermostatic Settings are User Definable and Nonvolatile (NV)
Data is Read/Written Through a 3-Wire Serial Interface
Available in 8-Pin μSOP Package
Applications
Any Space-Constrained Thermally Sensitive Application
Consumer Products
Industrial Controls
Thermostatic Controls

Units	Per unit	Per Tube**
88 - 352	$7.025	$618.20
440 +	$6.322	$556.336

Select all	Attribute	Value
	Brand	Maxim Integrated
	Sensor Function	Temperature
	Output Type	Digital
	Interface Type	Serial-3 Wire
	Accuracy	±0.5°C
	Mounting Type	Surface Mount
	Pin Count	8
	Operating Temperature Range	-55 to +125 °C
	Minimum Operating Temperature	-55 °C
	Maximum Operating Temperature	+125 °C
	Minimum Operating Supply Voltage	2.7 V
	Maximum Operating Supply Voltage	5.5 V
	Package Type	SOIC
	Length	5.46mm
	Height	2.03mm
	Width	5.41mm
	Dimensions	5.46 x 5.41 x 2.03mm
	Resolution	9 → 12 bit

	Select all
	Brand Maxim Integrated
	Sensor Function Temperature
	Output Type Digital
	Interface Type Serial-3 Wire
	Accuracy ±0.5°C
	Mounting Type Surface Mount
	Pin Count 8
	Operating Temperature Range -55 to +125 °C
	Minimum Operating Temperature -55 °C
	Maximum Operating Temperature +125 °C
	Minimum Operating Supply Voltage 2.7 V
	Maximum Operating Supply Voltage 5.5 V
	Package Type SOIC
	Length 5.46mm
	Height 2.03mm
	Width 5.41mm
	Dimensions 5.46 x 5.41 x 2.03mm
	Resolution 9 → 12 bit

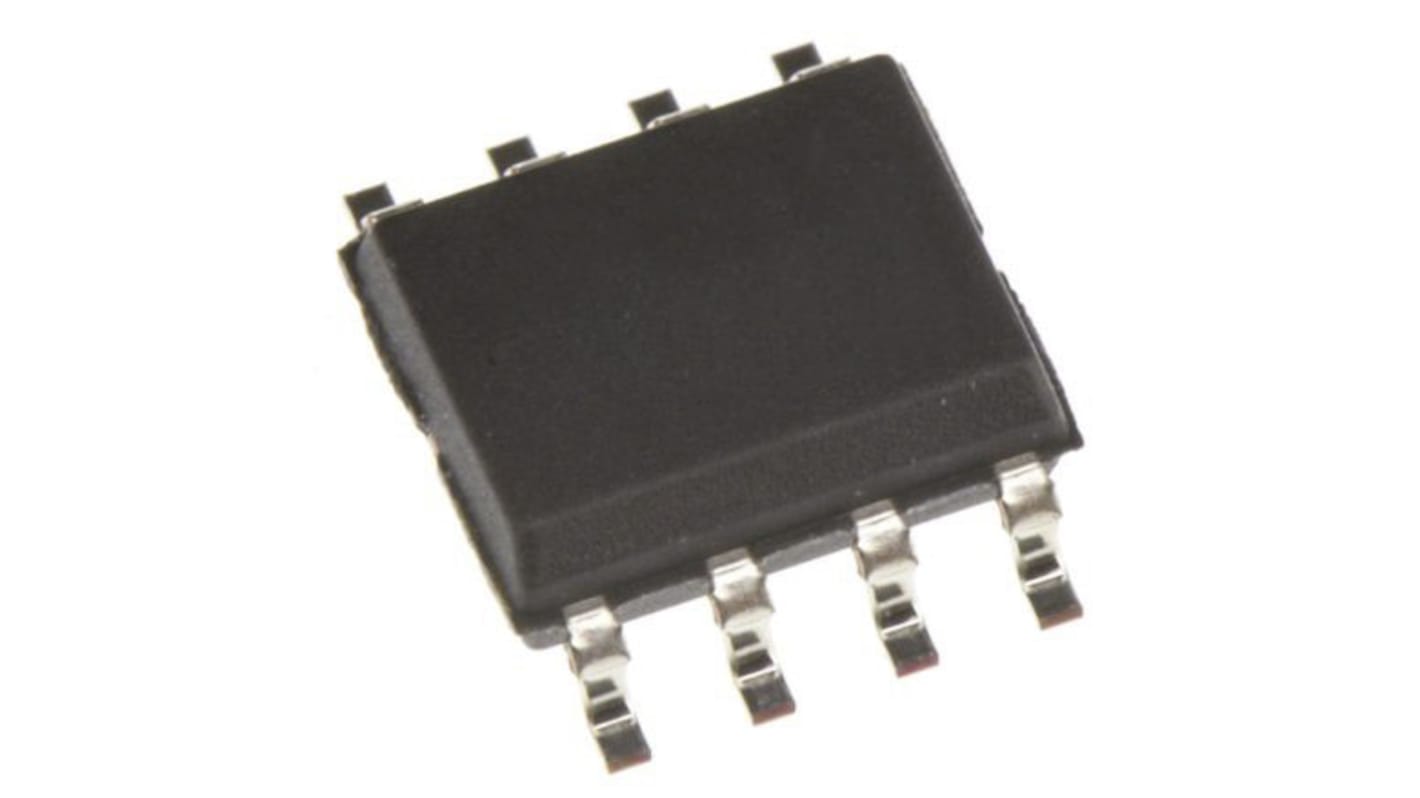

Maxim Integrated Temperature & Humidity Sensor, Digital Output, Surface Mount, Serial-3 Wire, ±0.5°C, 8 Pins
