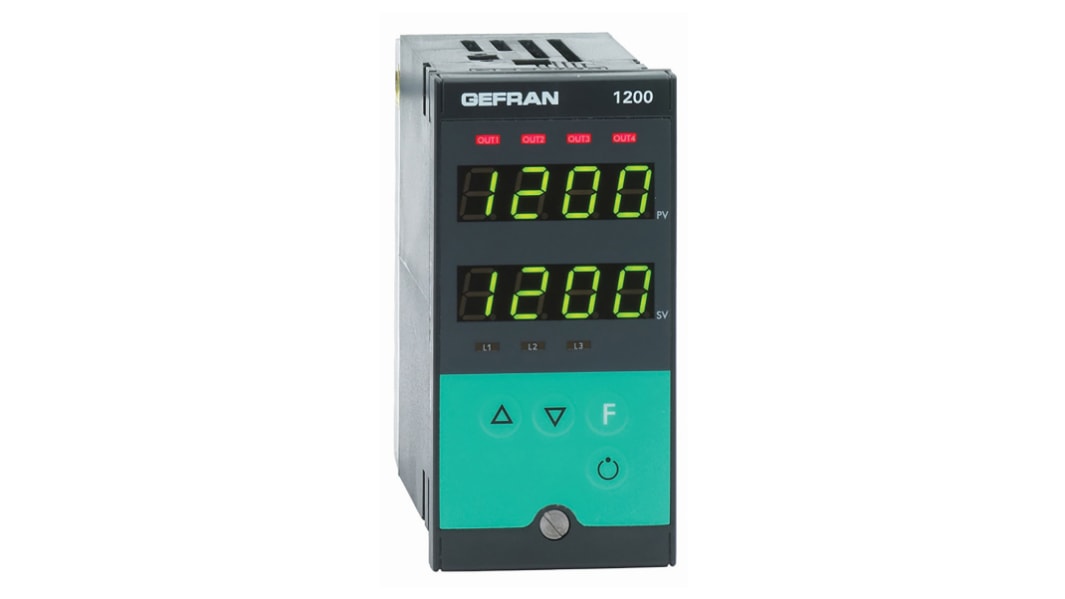

Gefran 1200 Panel PID Temperature Controller 2 Input, 3 Output Relay 240V ac/dc On-Off

View all Temperature Controllers
Bulk discount available

Subtotal (1 unit)*

$1,028.96

(exc. GST)

$1,131.86

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9$1,028.96
10 - 49$992.96
50 +$946.62

*price indicative

RS Stock No.:
481-9864
Mfr. Part No.:
F023426/ 1200-RRW0-00-0-1
Brand:
Gefran
Find similar products by selecting one or more attributes.
Select all

Brand

Gefran

Output Type

Relay

Product Type

PID Temperature Controller

Number of Inputs

2

Number of Outputs

3

Maximum Current

5A

Minimum Operating Temperature

0°C

Maximum Operating Temperature

50°C

Terminal Type

Screw

Control Type

On-Off

Maximum Supply Voltage

240V ac/dc

Controlled Phases

2

Diagnostics

Yes

Firing Mode

Phase Angle

Auxiliary Power Supply

24 W

Display Type

Multi Line

Maximum Voltage

250V

Width

96 mm

Standards/Approvals

C/UL/US File no. E198546, EN 61000-6-2, EN 61000-6-3, EN 61010-1

Length

48mm

IP Rating

IP65

Mount Type

Panel

Series

1200

Panel Depth

100mm

COO (Country of Origin):
IT
The 1200 RRW0 00 0 1 model from Gefran features two relay outputs with an additional 20mA (0-10V) analogue output. This controller requires a 100-240 V ac power supply to operate.

1200 Series Temperature Regulator


Gerfran’s 1200 series temperature regulator is a microcontroller based unit for controller heating or cooling systems as well as controlling heat/cool systems also. The compact 48 x 96 mm unit is easy to integrate into any temperature control system. The standard 1/8 DIN format provides industry standard function to secure the control for ease of use.

Featuring a two line read out, the 1200 series display has 10mm green LED characters displaying both PV and SV for clear and easy monitoring. The IP65 facia also features 4 functions buttons for selecting functions, automatic/manual selection plus raise and lower keys.

A configurable universal input on the front panel provides versatility allowing the user the ability to connected several types of sensors. The variety of sensor inputs allows the 1200 series to be used in a vast array of applications such as material injection pressed, thermoforming, heating ovens, packing machines and extrusion lines.

Regulation modes within the controller feature ON-OFF, P, PD, PI and PID. These modes can be used for either heating or for cooling, with settings that can be adjusted via the keypad. System alarms for load break or sensor short circuit can be configured by the user as required per application.
