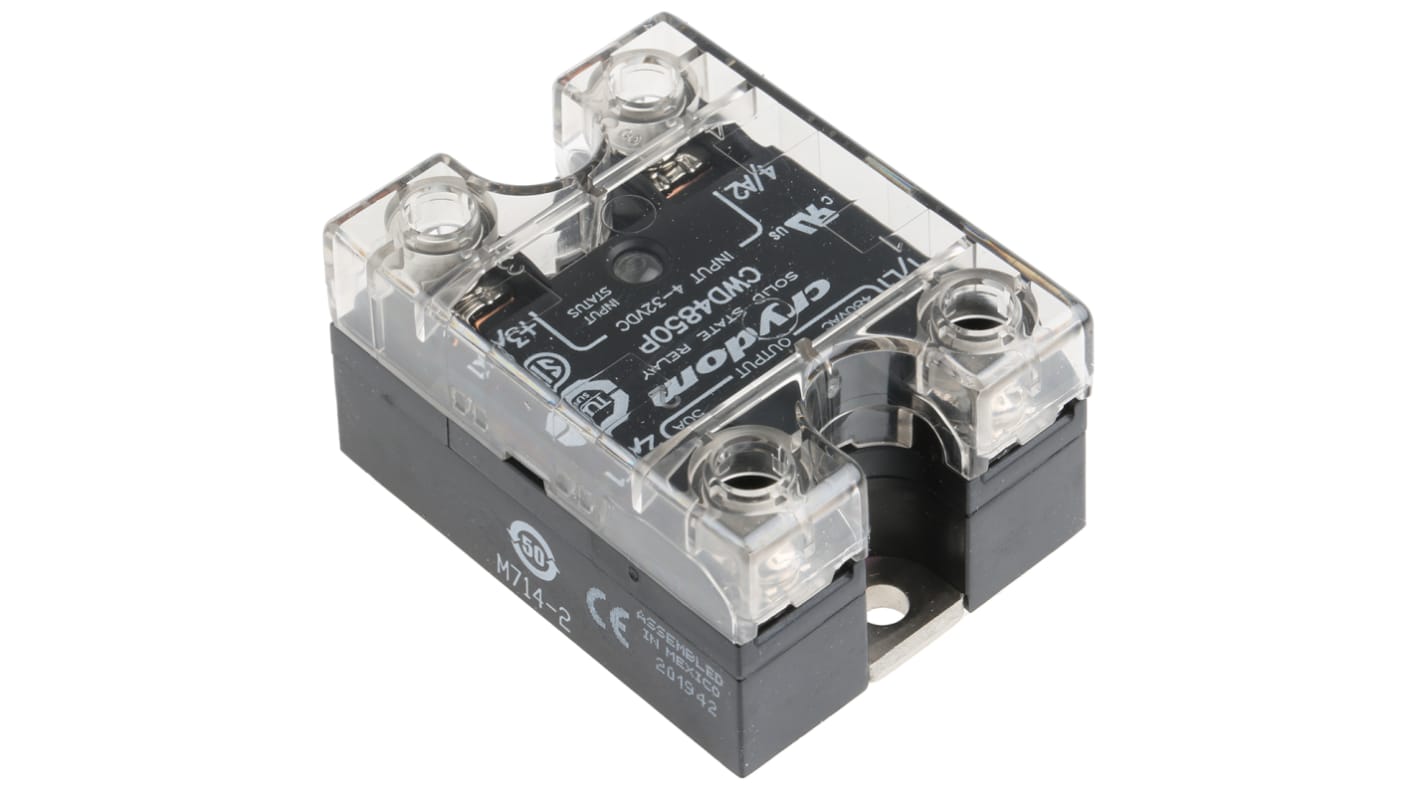

Sensata / Crydom CW24 Series Solid State Relay, 50 A Load, Panel Mount, 660 V ac Load, 32V Control
- RS Stock No.:
- 491-4975
- Distrelec Article No.:
- 137-44-902
- Mfr. Part No.:
- CWD4850P
- Brand:
- Sensata / Crydom
Bulk discount available
Subtotal (1 unit)*
$145.85
(exc. GST)
$160.44
(inc. GST)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 5 | $145.85 |
| 6 - 11 | $142.22 |
| 12 + | $140.94 |
*price indicative
- RS Stock No.:
- 491-4975
- Distrelec Article No.:
- 137-44-902
- Mfr. Part No.:
- CWD4850P
- Brand:
- Sensata / Crydom
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Crydom | |
| Maximum Load Current | 50A | |
| Product Type | Solid State Relay | |
| Mount Type | Panel | |
| Maximum Load Voltage | 660V ac | |
| Minimum Load Voltage | 48V ac | |
| Minimum Control Voltage | 4V dc | |
| Maximum Control Voltage | 32V | |
| Series | CW24 | |
| Terminal Type | Screw | |
| Contact Configuration | SPST | |
| IP Rating | IP20 | |
| Switching Function | Zero Voltage Switching | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Width | 22 mm | |
| Height | 33mm | |
| Length | 45.7mm | |
| Standards/Approvals | CE, RoHS | |
| Off State Leakage Current | 1mArms | |
| Capacitance | 8pF | |
| Output Type | SCR | |
| Select all | ||
|---|---|---|
Brand Sensata / Crydom | ||
Maximum Load Current 50A | ||
Product Type Solid State Relay | ||
Mount Type Panel | ||
Maximum Load Voltage 660V ac | ||
Minimum Load Voltage 48V ac | ||
Minimum Control Voltage 4V dc | ||
Maximum Control Voltage 32V | ||
Series CW24 | ||
Terminal Type Screw | ||
Contact Configuration SPST | ||
IP Rating IP20 | ||
Switching Function Zero Voltage Switching | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Width 22 mm | ||
Height 33mm | ||
Length 45.7mm | ||
Standards/Approvals CE, RoHS | ||
Off State Leakage Current 1mArms | ||
Capacitance 8pF | ||
Output Type SCR | ||
Sensata | Crydom Solid-State Relay, 81.53g Weight, 48 to 660V AC Operating Voltage Range - CW48 Series - CWD4850P
For reliable on and off operations in your industrial machinery, make the switch to this solid-state relay from Sensata | Crydom. A rated load current of 50A means it can bear the burden of demanding applications. The built-in LED status indicator quickly shows when something's off, so you can attend to problems quickly to avoid extensive downtimes. The included cover lets you boost electrical safety, as its IP20 rating means it's touch-proof and protected against objects larger than 12mm. Use this device for critical installations such as automated factory processes, robotics and medical equipment.
Features & Benefits
• Low off-state leakage current of 1mA for improved system safety
• EMC compatibility for interference-free signals
• Wide operating temperature range between -40°C and +80°C for use in harsh conditions
• Light weight of 81.53g to place minimal strain on your equipment
What's the difference between an electromagnetic relay and an SSR?
These two types of relays perform the same functions, but SSRs have no moving parts. This means there's less wear and tear, which extends the service life of the component.
Approvals
UL, VDE
