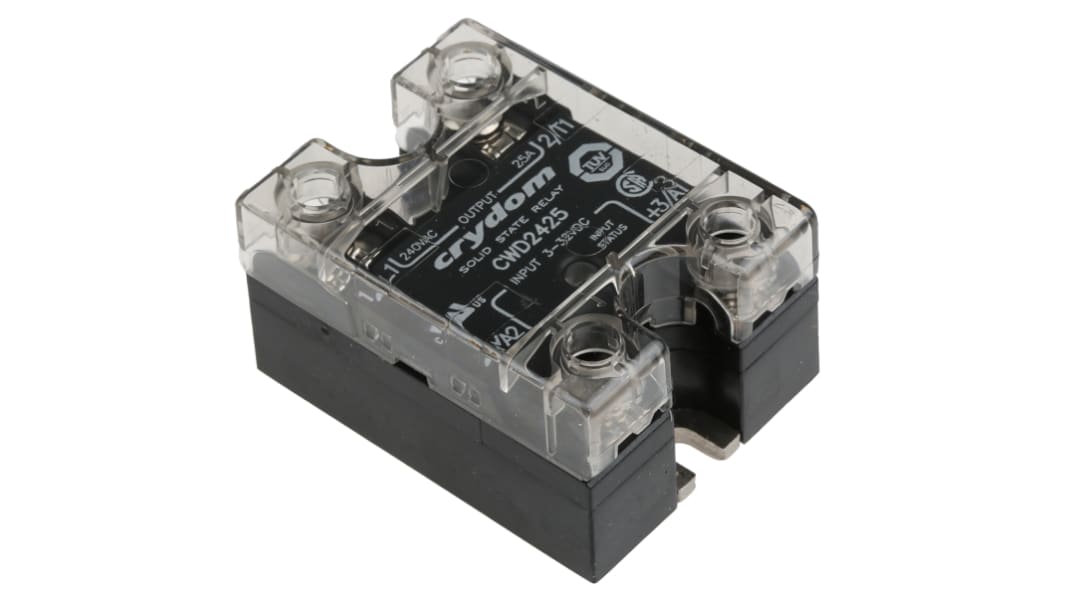

Sensata / Crydom 25 A rms Solid State Relay, Zero Cross, Panel Mount, SCR, 280 V rms Maximum Load

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

CW Series

Low off-state leakage
SCR Output
LED Status Indicator
Panel Mount
Integrated removable fingerproof cover
Universal connectors
EMC compliant design

Note

Models with internal overvoltage protection are not suitable for capacitive loads. Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Approvals

UL, VDE

//media.rs-online.com/t_line/L491485-01.gif

Approvals

UL, VDE

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Specifications
Attribute Value
Minimum Load Current 0.15 A
Maximum Load Current 25 A rms
Mounting Type Panel Mount
Maximum Load Voltage 280 V rms
Minimum Control Voltage 3 V dc
Maximum Control Voltage 32 V
Switching Type Zero Cross
Output Device SCR
Dimensions 45.7 x 58.4 x 33mm
Maximum Operating Temperature +80°C
Control Voltage Range 3 → 32 V dc
Operating Temperature Range -40 → +80°C
Load Voltage Range 24 → 280V ac
Length 45.7mm
Height 33mm
Minimum Operating Temperature -40°C
Depth 58.4mm
4 : Next working day (AU stock)
68 : 5 working days (Global stock)
Price (ex. GST) Each
$ 72.95
(exc. GST)
$ 80.25
(inc. GST)
units
Per unit
1 - 5
$72.95
6 - 11
$70.28
12 +
$69.56
