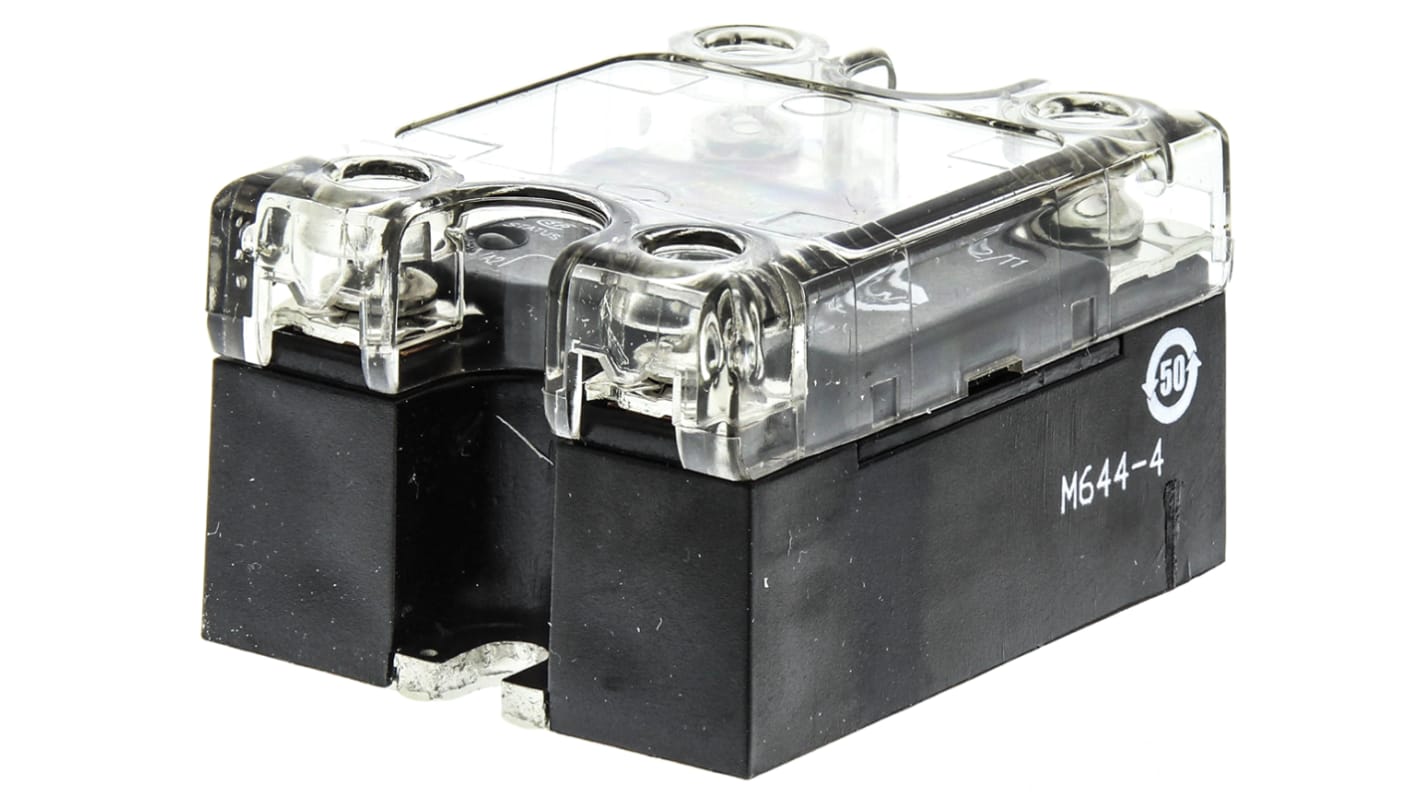

Sensata / Crydom CW Series Solid State Relay, 50 A rms Load, Panel Mount, 280 V rms Load, 32 V Control
- RS Stock No.:
- 491-4868
- Mfr. Part No.:
- CWD2450
- Brand:
- Sensata / Crydom
208 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$119.28
(exc. GST)
$131.21
(inc. GST)
Units | Per unit |
1 - 5 | $119.28 |
6 - 11 | $117.23 |
12 + | $115.91 |
- RS Stock No.:
- 491-4868
- Mfr. Part No.:
- CWD2450
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Sensata | Crydom Solid-State Relay, SCR Output, 50A Rated Load Current - CW24 Series - CWD2450
When you want to safely turn the power to a circuit on and off, let this relay from Sensata | Crydom call the shots. As it's a solid-state type, it doesn't have any moving parts, so it's maintenance-free and resistant to wear. This gives it a hefty lifespan of over 11 million hours at +40°C for long-lasting performance. Zero-cross switching means it switches on when the voltage is close to 0V, helping to keep electrical noise down. An SSR like this one is commonly used for handling resistive loads in lighting, heating and motion control applications.
Features & Benefits
Labelled terminals for straightforward wiring
LED indicator makes status monitoring a cinch
Self-extinguishing housing for safety in the event of a fire
LED indicator makes status monitoring a cinch
Self-extinguishing housing for safety in the event of a fire
Why does this SSR have a cover?
The cover on this relay keeps it touch-safe to prevent shocks. It's transparent, so you can see the terminals and LED underneath for convenient monitoring.
How do I mount this relay?
This relay comes with two pre-drilled mounting holes so you can easily install it on your panel.
Approvals
UL, VDE
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Specifications
Attribute | Value |
---|---|
Maximum Load Current | 50 A rms |
Mounting Type | Panel Mount |
Maximum Load Voltage | 280 V rms |
Minimum Load Voltage | 24 V ac/dc |
Minimum Control Voltage | 3 V ac/dc |
Maximum Control Voltage | 32 V |
Switching Type | Zero Cross |
Control Voltage Range | 3 → 32 V dc |
Minimum Load Current | 0.15 A |
Number of Poles | 1 |
Terminal Type | Screw |
Output Device | SCR |
Relay Type | Solid State Relay |
Load Voltage Range | 24 → 280V ac |
Maximum Turn On Time | 1/2 cycle |
Series | CW |
Dimensions | 45.7 x 58.4 x 33mm |
Operating Temperature Range | -40 → +80°C |
Length | 45.7mm |
Off State Leakage Current | 1 mArms |
Maximum Operating Temperature | +80°C |
Height | 33mm |
Capacitance | 8pF |
Standards Met | CE, CSA, cURus |
Depth | 58.4mm |
Minimum Operating Temperature | -40°C |
Special Features | AC or DC control and Universal AC/DC contro, Epoxy Free Design, LED Status Indicator |
