- RS Stock No.:
- 913-8968
- Mfr. Part No.:
- MFP 1323-R
- Brand:
- KNITTER-SWITCH
50 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Bag of 5)
$2.526
(exc. GST)
$2.779
(inc. GST)
Units | Per unit | Per Bag* |
5 - 45 | $2.526 | $12.63 |
50 - 120 | $2.48 | $12.40 |
125 - 245 | $2.404 | $12.02 |
250 + | $2.332 | $11.66 |
*price indicative |
- RS Stock No.:
- 913-8968
- Mfr. Part No.:
- MFP 1323-R
- Brand:
- KNITTER-SWITCH
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

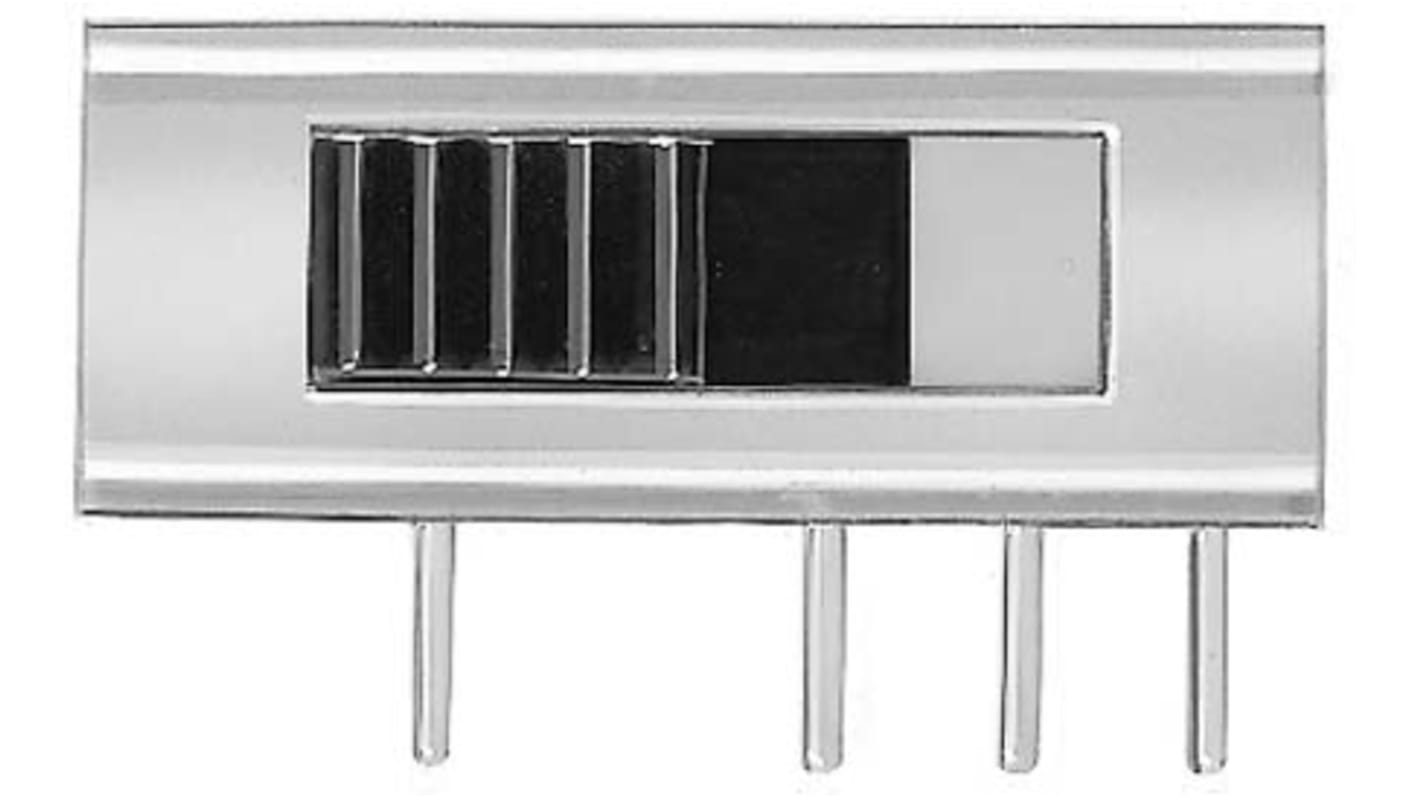

Knitter Switch Miniature Slide Switches - MFP Series
Copper alloy contacts with silver-plating over nickel barrier
Shorting contacts
Black slider
Shorting contacts
Black slider
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Contact Configuration | SPST |
Mounting Type | PCB |
Contact Current Rating | 350 mA @ 30 V dc |
Terminal Type | PC Pin |
Actuator Type | Slide |
Length | 15.5mm |
Width | 9.2mm |
Depth | 6mm |
Dimensions | 15.5 x 9.2 x 6mm |
Contact Resistance | 20mΩ |
Voltage Rating | 30V dc |
Mechanical Life | 10000Operations |
Operating Temperature Range | -20 → +85°C |
Minimum Operating Temperature | -20°C |
Contact Material | Copper Alloy |
Maximum Operating Temperature | +85°C |
Actuator Material | Polyoxymethylene |
