- RS Stock No.:
- 123-8933
- Mfr. Part No.:
- SSSS711403
- Brand:
- Alps Alpine
45 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each (In a Pack of 5)
$2.658
(exc. GST)
$2.924
(inc. GST)
Units | Per unit | Per Pack* |
5 - 45 | $2.658 | $13.29 |
50 - 95 | $2.594 | $12.97 |
100 - 245 | $2.48 | $12.40 |
250 + | $2.394 | $11.97 |
*price indicative |
- RS Stock No.:
- 123-8933
- Mfr. Part No.:
- SSSS711403
- Brand:
- Alps Alpine
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

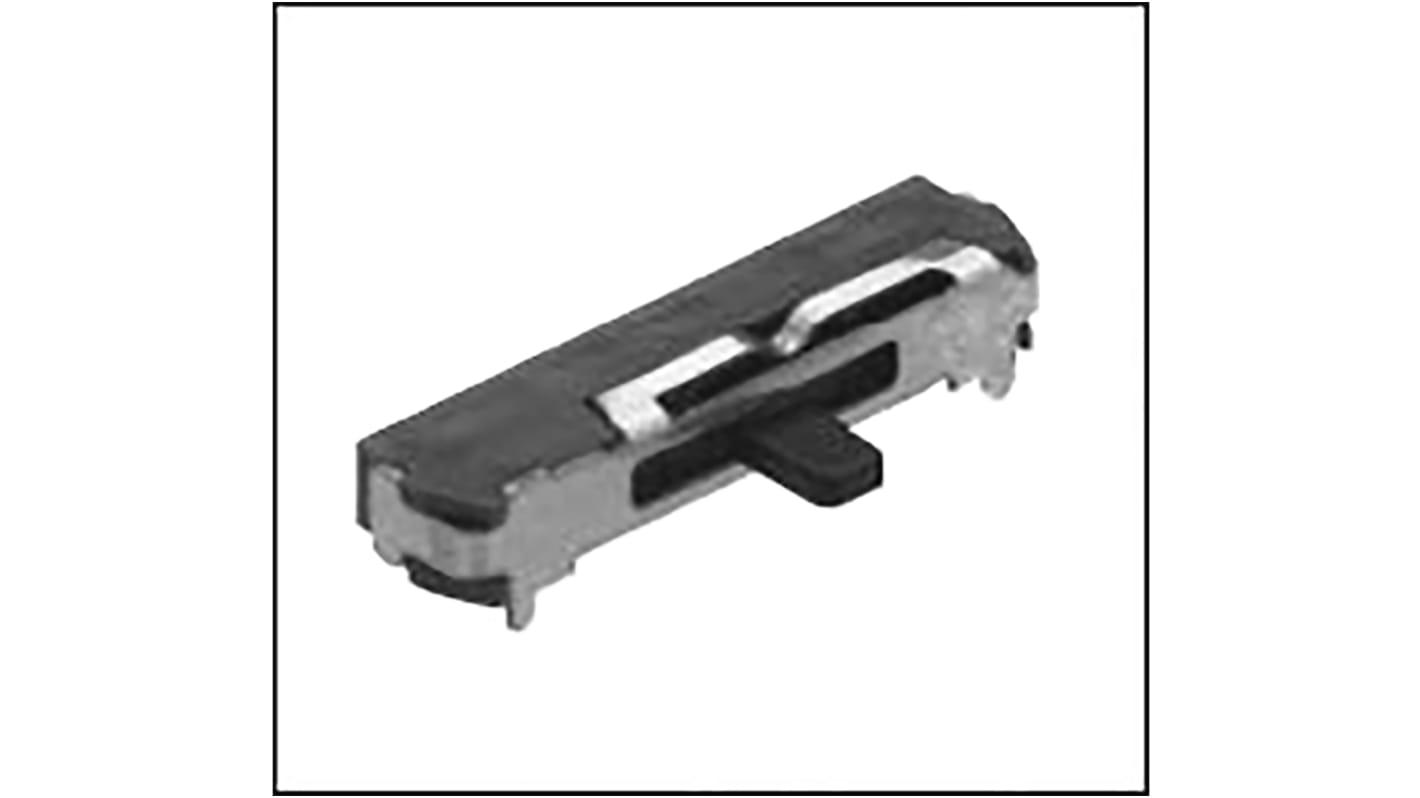

Alps SSSS Series Slide Switch
Alps SSSS series of slide switches are an excellent choice for compact & high density portable devices. The SSSS series can be simply mounted via a snap-in method, making installation quick and keeping maintainence downtime at a low.
Features and Benefits
Offered in both horizontal & vertical actuator options.
2 mm travel slide switch.
Offered with a 2 mm long actuator.
10,000 cycle mean time before failure (MTBF).
Specifications
Attribute | Value |
---|---|
Mounting Type | Through Hole |
Switch Operation | Latching |
Contact Current Rating | 300 mA |
Terminal Type | Solder |
Actuator Type | Slide |
Length | 12.5mm |
Width | 5mm |
Depth | 2.3mm |
Dimensions | 12.5 x 5 x 2.3mm |
Contact Resistance | 130 (After Lifetime) mΩ, 70 (Initial) mΩ |
Mechanical Life | 10000Cycles |
Voltage Rating | 4V dc |
Operating Temperature Range | -40 → +85°C |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
