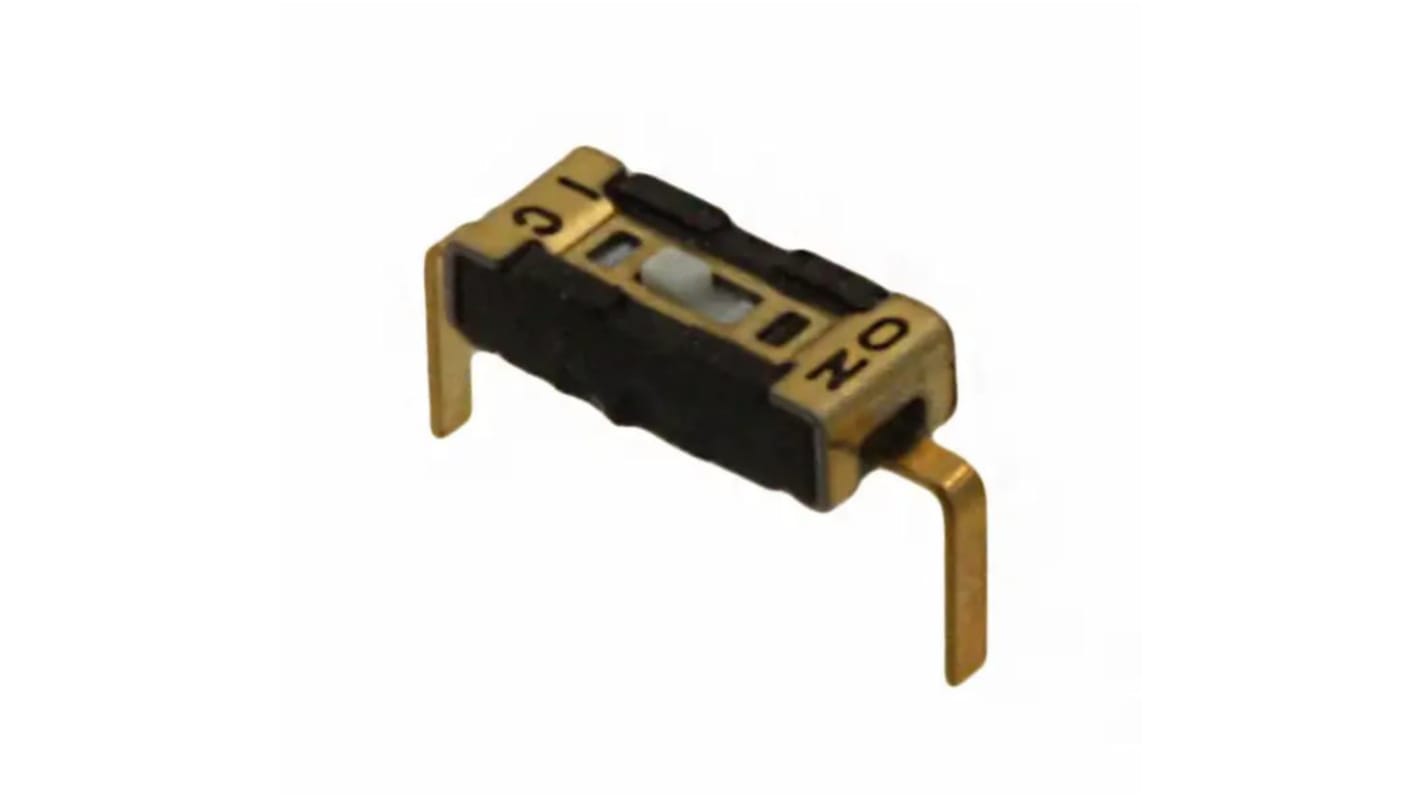

Nidec Components Through Hole Slide Switch SPST 100mA Slide
- RS Stock No.:
- 196-8157
- Mfr. Part No.:
- CVS-01C
- Brand:
- Nidec Components
5 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each (In a Pack of 5)
$4.23
(exc. GST)
$4.65
(inc. GST)
| Units | Per unit | Per Pack* |
| 5 - 20 | $4.23 | $21.15 |
| 25 - 45 | $4.124 | $20.62 |
| 50 + | $4.062 | $20.31 |
| *price indicative | ||
- RS Stock No.:
- 196-8157
- Mfr. Part No.:
- CVS-01C
- Brand:
- Nidec Components
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Copal Electronics CVS-01C is a SPST DIP slide switch having DC current rating of 100mA. The contact material is Copper whereas the contact finish is Gold. Its polyamide (PA),nylon actuator is 2mm in length. It has a wide variety like circuit composition, operating direction, terminal shape J-hook, Gull wing, through hole pins. CVS-01C SPST DIP slide switch adopted twin-contact mechanism. These switches are ROHS compliant. CVS-01C SPST DIP slide switches consists of 100 pieces per pack.
10,000 electrical life cycles with an operating force of 102 ∼ 357gf
Standardization of the silver as well as gold contacts
Uses a heat-resistant resin to support reflow soldering mounting
Excellent contact stability by twin Gold-plated contact
Standardization of the silver as well as gold contacts
Uses a heat-resistant resin to support reflow soldering mounting
Excellent contact stability by twin Gold-plated contact
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Mounting Type | Through Hole |
| Contact Current Rating | 100mA |
| Terminal Type | PC Pin |
| Actuator Type | Slide |
| Length | 6.5mm |
| Width | 2mm |
| Depth | 1.2mm |
| Dimensions | 6.5 x 2 x 1.2mm |
| Contact Resistance | 200mΩ |
| Voltage Rating | 6V |
| Mechanical Life | 1000Operations |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Contact Material | Copper Alloy |
| Maximum Operating Temperature | +85°C |
