Werma 644 Series Green Steady Effect Beacon Unit, 24 V dc, LED Bulb, DC, IP65
- RS Stock No.:
- 700-9177
- Mfr. Part No.:
- 644.280.55
- Brand:
- Werma
Bulk discount available
Price (ex. GST) Each
$370.05
(exc. GST)
$407.05
(inc. GST)
9 In Global stock for delivery within 10 working day(s)*
* Delivery dates may change based on your chosen quantity and delivery address.
Units | Per unit |
---|---|
1 - 5 | $370.05 |
6 + | $359.02 |
- RS Stock No.:
- 700-9177
- Mfr. Part No.:
- 644.280.55
- Brand:
- Werma
- COO (Country of Origin):
- DE
Stacking Signal Tower - KombiSIGN 71, 70 mm, IP65
The WERMA KombiSIGN 71 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. The modular design of these stacking towers enables quick and easy installation. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. Simply align the corresponding white marks and gently twist to lock them in place.
Features and Benefits
Suitable for machine and manual Andon indication
Modular system allows a completely free combination of optical and audible signal elements
Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
Completely safe element changes (contact-voltage proof) without the need for tools
Protection rating IP65 for use in extreme conditions
Up to 5 elements can be mounted on a terminal base
Flexible combination of optical and audible elements
Optical isolation due to O-ring seal stopping illumination of adjacent element
Operating voltage for the continuous incandescent element is dependant on bulb fitted
LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
Optional self adjusting siren automatically adjusts output between 80 & 100 dB depending on ambient sound levels
AS-Interface element can be easily connected to the networking system which considerably reduces complex wiring
Improved connection with cage clamp technology
Operating temperature range is -20 to +50 °C
Polyamide body with polycarbonate lenses, 70 mm diameter
Modular system allows a completely free combination of optical and audible signal elements
Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
Completely safe element changes (contact-voltage proof) without the need for tools
Protection rating IP65 for use in extreme conditions
Up to 5 elements can be mounted on a terminal base
Flexible combination of optical and audible elements
Optical isolation due to O-ring seal stopping illumination of adjacent element
Operating voltage for the continuous incandescent element is dependant on bulb fitted
LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
Optional self adjusting siren automatically adjusts output between 80 & 100 dB depending on ambient sound levels
AS-Interface element can be easily connected to the networking system which considerably reduces complex wiring
Improved connection with cage clamp technology
Operating temperature range is -20 to +50 °C
Polyamide body with polycarbonate lenses, 70 mm diameter
Permanent Multi-colour LED Light Element
Seven colours in one beacon
Different colours can be triggered via the pins in the terminal element
Positive and negative control logic
The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
High light intensity
Different colours can be triggered via the pins in the terminal element
Positive and negative control logic
The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
High light intensity
Note
Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 70.
Approvals
UL listed, CSA, VDE

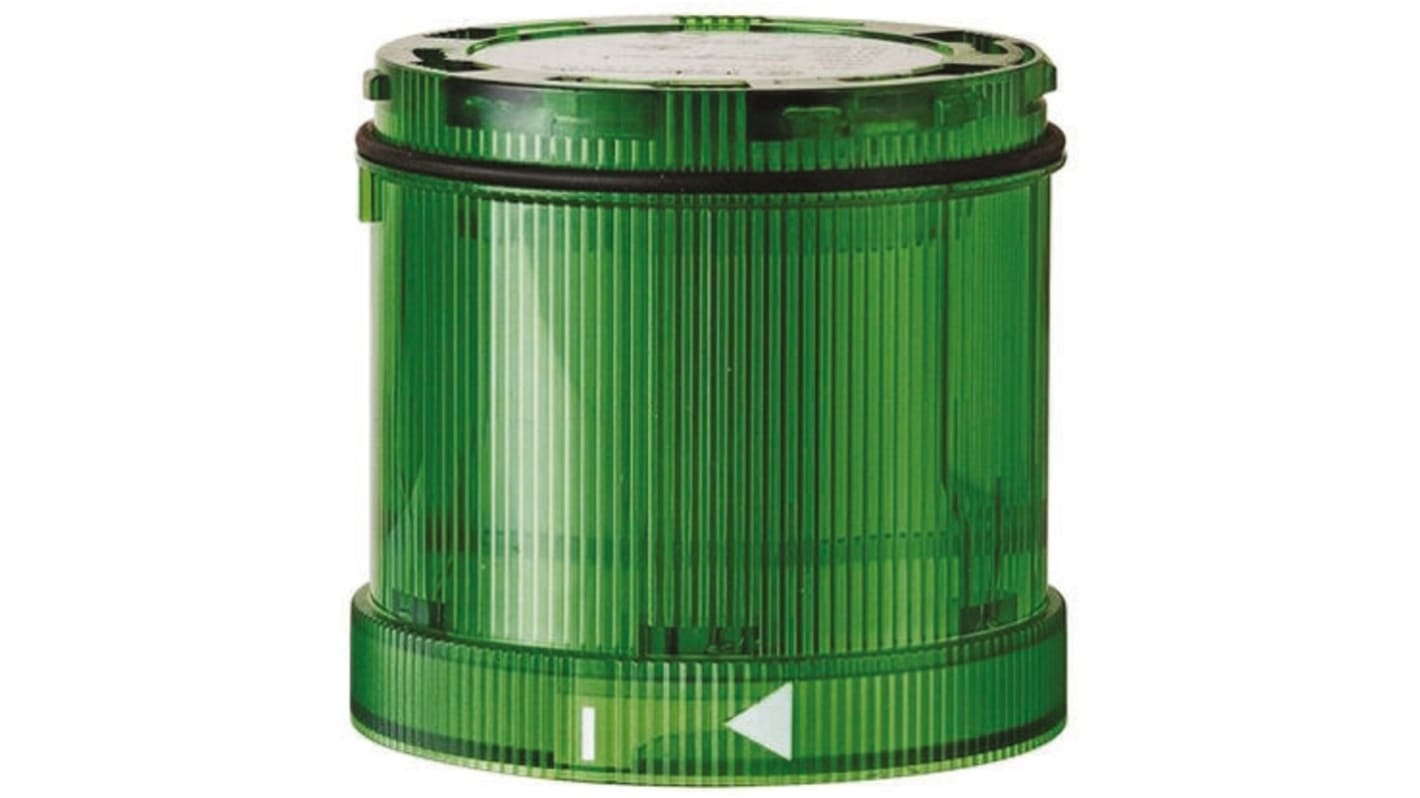

Werma Series 644 Beacon Unit, 24V dc Supply Voltage, IP65 - 644.280.55
This beacon unit is part of the KombiSIGN 71 range, designed for outdoor use in industrial settings. Measuring 66mm in height and 70mm in diameter, this LED beacon light features a durable green lens that emits a steady light. It is suitable for applications requiring high visibility.
Features & Benefits
• Operating voltage of 24V DC for wide compatibility
• LED light source provides long service life of 50,000 hours
• Ultrabright green LED ensures clear visibility
• LED light source provides long service life of 50,000 hours
• Ultrabright green LED ensures clear visibility
Applications
• Used for alerting in factory settings
• Ideal for outdoor notifications in construction sites
• Utilised as a warning signal on machinery
• Ideal for outdoor notifications in construction sites
• Utilised as a warning signal on machinery
Can it withstand harsh outdoor conditions?
Yes, it is IP65 rated for dust and water protection.
Will it function effectively in extreme temperatures?
Yes, it operates between -20°C and +50°C.
Attribute | Value |
---|---|
Range | KombiSIGN 71 |
Series | 644 |
Component Type | Beacon |
Current Type | DC |
Light Effect | Steady |
Lens Colour | Green |
Bulb Type | LED |
Supply Voltage | 24 V dc |
Height | 66mm |
IP Rating | IP65 |
Base Diameter | 70mm |
Maximum Temperature | +50°C |
Minimum Temperature | -20°C |
