Silicon Labs Si72xx Eval Kit Evaluation Kit Evaluation Kit for Si72xx Si72xx

RS Stock No.:: 268-7550
Mfr. Part No.:: SI72XX-EVAL-KIT
Brand:: Silicon Labs

Silicon Labs Si72xx Eval Kit Evaluation Kit Evaluation Kit for Si72xx Si72xx

4 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$83.20

(exc. GST)

$91.52

(inc. GST)

Units	Per unit
1 +	$83.20

RS Stock No.:: 268-7550
Mfr. Part No.:: SI72XX-EVAL-KIT
Brand:: Silicon Labs

Technical data sheets

Datasheet - SI72XX-EVAL-KIT

Legislation and Compliance

COO (Country of Origin):: US

Product Details

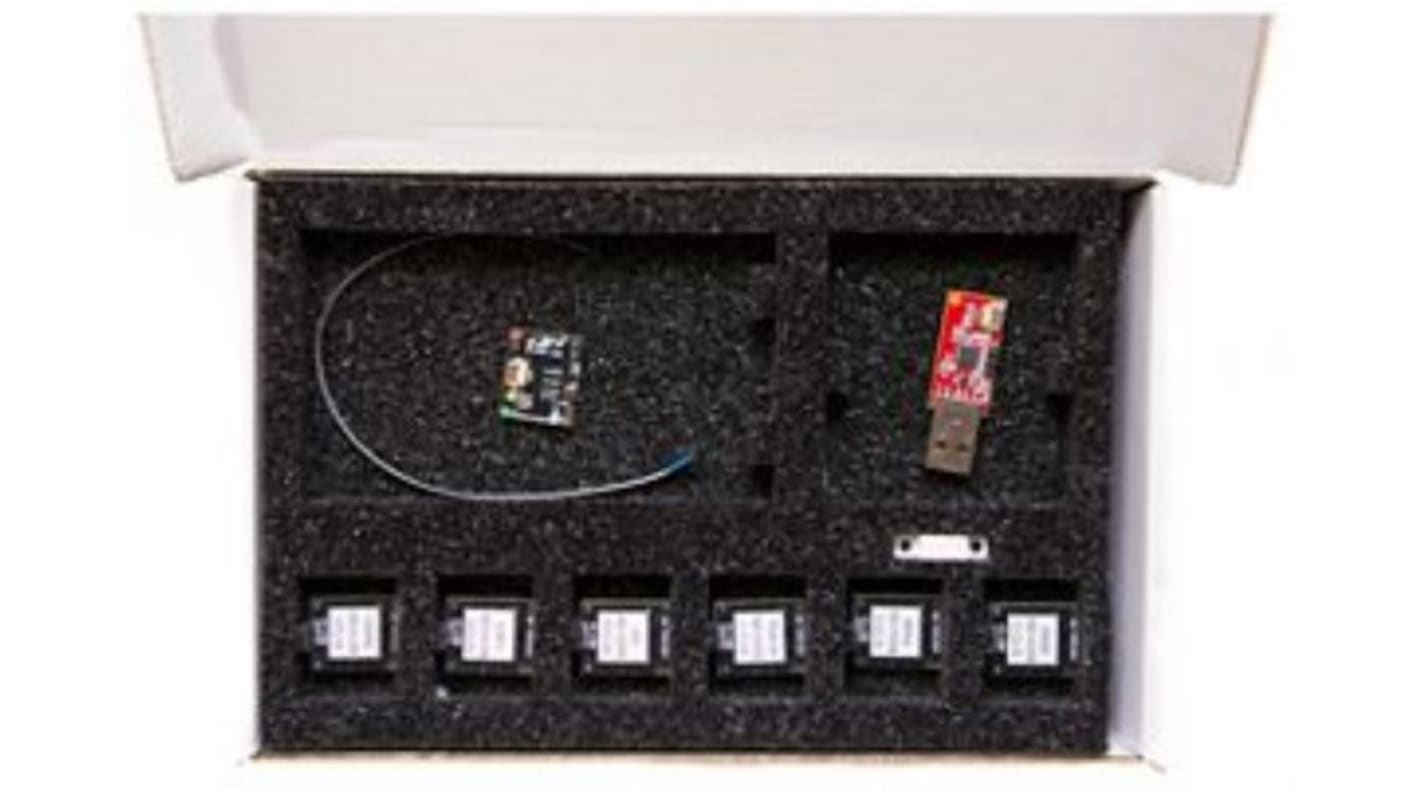

The Silicon Labs evaluation kit is a simple and low cost demonstration of the six basic types of Si72xx hall effect magnetic position sensors. A USB adapter provides power to the sensor boards and reads the output of the sensors. The data from the sensors is displayed on a PC GUI and can also be logged to a file. For the case of the Si7210 I2C sensor, the PC GUI also allows configuration of the sensor by I2C. The six sensor types are supplied on small, postage-stamp-sized boards that connect to the USB dongle by a 6-pin flat cable.

Switch, Latch, PWM, analogue, SENT, and I2C
USB adapter provides power and can read the data from the sensor
PC GUI displays the data which can also be logged to a file
I2C sensor configuration capability

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Sensor Technology	Evaluation Kit
Featured Device	Si72xx
For Use With	Si72xx
Kit Classification	Evaluation Kit
Kit Name	Si72xx Eval Kit
