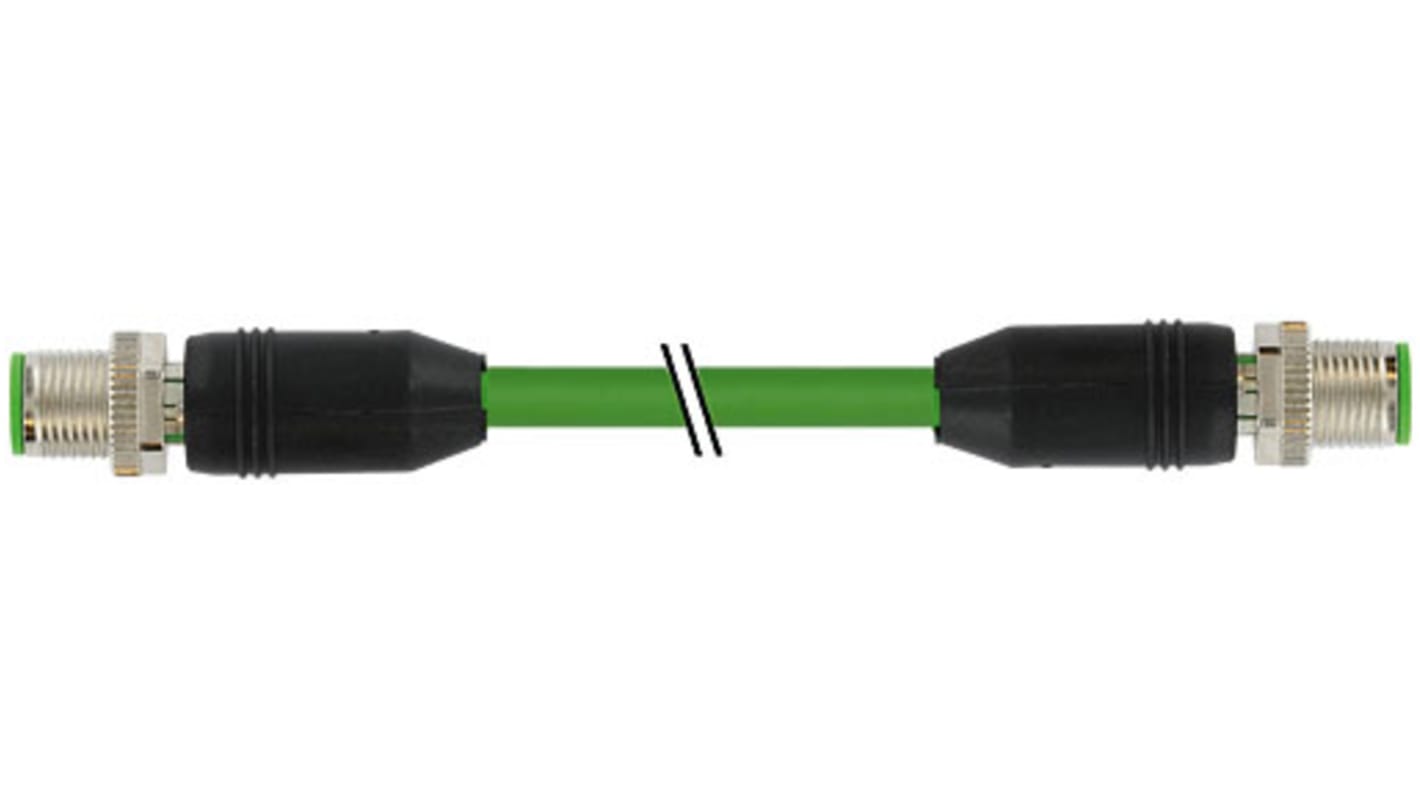

Murrelektronik Limited Straight Male 4 way M12 to Straight Male 4 way M12 Communication Cable, 300mm
- RS Stock No.:
- 196-0716
- Mfr. Part No.:
- 7000-44511-7960030
- Brand:
- Murrelektronik Limited
4 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$108.29
(exc. GST)
$119.12
(inc. GST)
Units | Per unit |
1 - 4 | $108.29 |
5 - 9 | $105.99 |
10 - 24 | $100.48 |
25 + | $97.51 |
- RS Stock No.:
- 196-0716
- Mfr. Part No.:
- 7000-44511-7960030
- Brand:
- Murrelektronik Limited
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- HU
Product Details
M12 D-Coded 4 pole Male straight to Male
Specifications
Attribute | Value |
---|---|
Series | D-Coded |
Number of Cores | 4 |
Cross Sectional Area | 0.34 mm² |
Sheath Material | PUR |
Length | 300mm |
Sheath Colour | Green |
Connector 1 Gender | Male |
Connector 1 | M12 |
Connector 1 Orientation | Straight |
Connector 1 Number of Contacts | 4 |
Connector 2 | M12 |
Connector 2 Housing Gender | Male |
Connector 2 Orientation | Straight |
Connector 2 Number of Contacts | 4 |
Connector 2 Gender | Male |
Coding | D |
Shielded/Unshielded | Shielded |
Voltage Rating | 30 V dc, 60 V dc |
Current Rating | 4 A |
IP Rating | IP65, IP66K, IP67 |
Fire Behaviour | Flame Retardant |
Minimum Operating Temperature | -25 °C, -30 (Mobile) °C, -40 (Fixed) °C |
Maximum Operating Temperature | +70 (Mobile) °C, +80 (Fixed) °C, +85°C |
Outer Diameter | 6.7mm |
Oil Resistant | Yes |
American Wire Gauge | 22 AWG |
Operating Temperature Range | -25 → +85 °C, -30 → +70 (Mobile) °C, -40 → +80 (Fixed) °C |
Minimum Bend Radius | 33.5 (Fixed) mm, 80.4 (Moving) mm |
Connector 1 Housing Gender | Male |
Conductor Resistance | 55 O/km |
