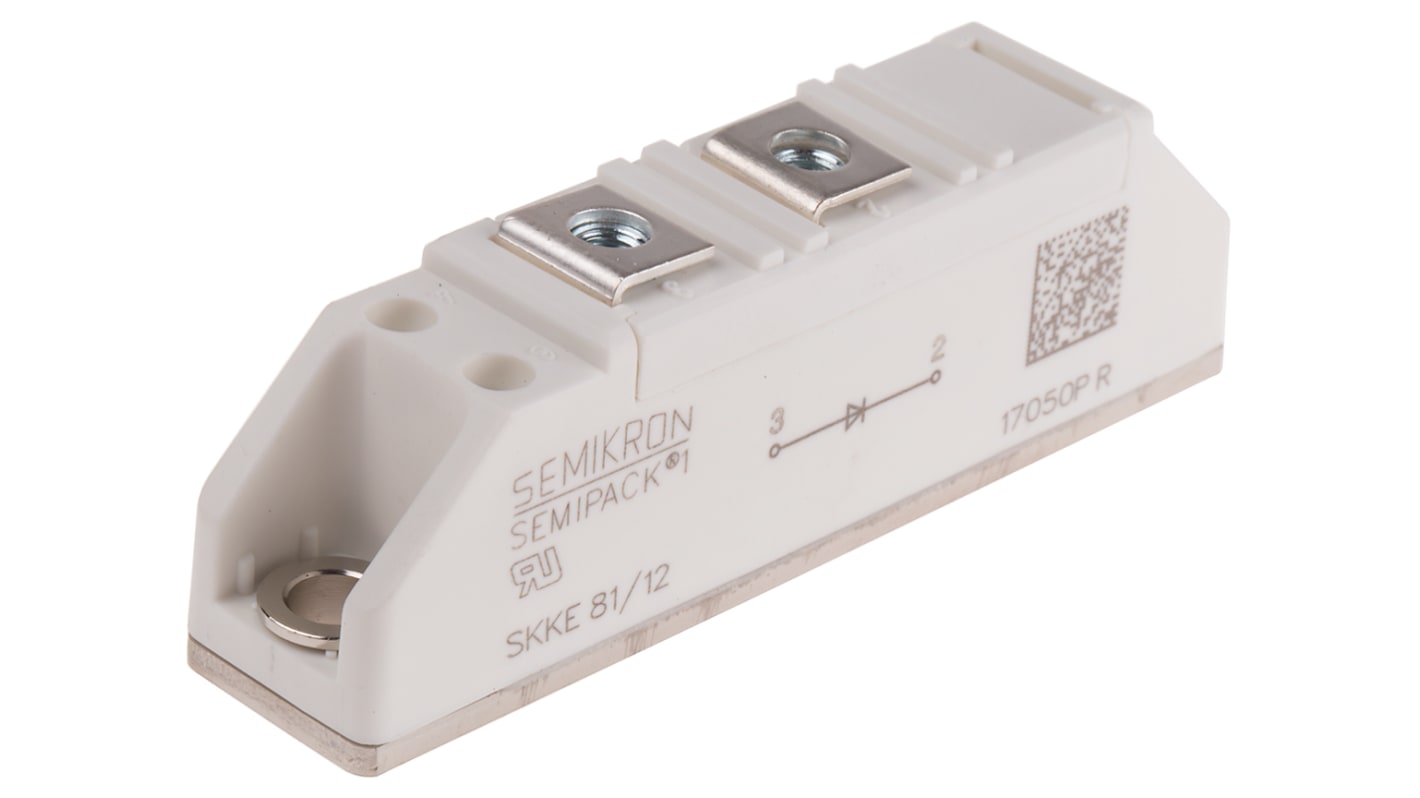

Semikron Danfoss 1200 V 57 A Diode Rectifier Diode 2-Pin SEMIPACK1 SKKE 81/12
- RS Stock No.:
- 905-6112
- Mfr. Part No.:
- SKKE 81/12
- Brand:
- Semikron Danfoss
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$74.00
(exc. GST)
$81.40
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- Plus 350 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | $74.00 |
| 10 - 49 | $72.72 |
| 50 - 99 | $70.88 |
| 100 - 249 | $69.12 |
| 250 + | $67.39 |
*price indicative
- RS Stock No.:
- 905-6112
- Mfr. Part No.:
- SKKE 81/12
- Brand:
- Semikron Danfoss
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Semikron Danfoss | |
| Product Type | Diode | |
| Mount Type | Panel | |
| Package Type | SEMIPACK1 | |
| Maximum Continuous Forward Current If | 57A | |
| Peak Reverse Repetitive Voltage Vrrm | 1200V | |
| Series | SKKE 81 | |
| Diode Configuration | Single | |
| Rectifier Type | Rectifier Diode | |
| Pin Count | 2 | |
| Peak Reverse Current Ir | 4.5mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Forward Voltage Vf | 1.55V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2kA | |
| Maximum Operating Temperature | 125°C | |
| Length | 92mm | |
| Standards/Approvals | No | |
| Height | 30mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Semikron Danfoss | ||
Product Type Diode | ||
Mount Type Panel | ||
Package Type SEMIPACK1 | ||
Maximum Continuous Forward Current If 57A | ||
Peak Reverse Repetitive Voltage Vrrm 1200V | ||
Series SKKE 81 | ||
Diode Configuration Single | ||
Rectifier Type Rectifier Diode | ||
Pin Count 2 | ||
Peak Reverse Current Ir 4.5mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Forward Voltage Vf 1.55V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 2kA | ||
Maximum Operating Temperature 125°C | ||
Length 92mm | ||
Standards/Approvals No | ||
Height 30mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- IT
SEMIPACK® SKKE Series Single Diode Modules
Heavy-duty single diode modules in a variety of voltage and current ratings. These compact devices are suitable for high-current rectifier applications.
Excellent heat transfer through aluminium oxide ceramic isolated metal baseplate
Precious metal contacts for high reliability
Diodes and Rectifiers, Semikron
Approvals
UL recognized E63532
