Vishay 650 V 10 A Rectifier & Schottky Diode Schottky 3-Pin TO-247AD 3L VS-3C20CP07L-M3
- RS Stock No.:
- 279-9475
- Mfr. Part No.:
- VS-3C20CP07L-M3
- Brand:
- Vishay

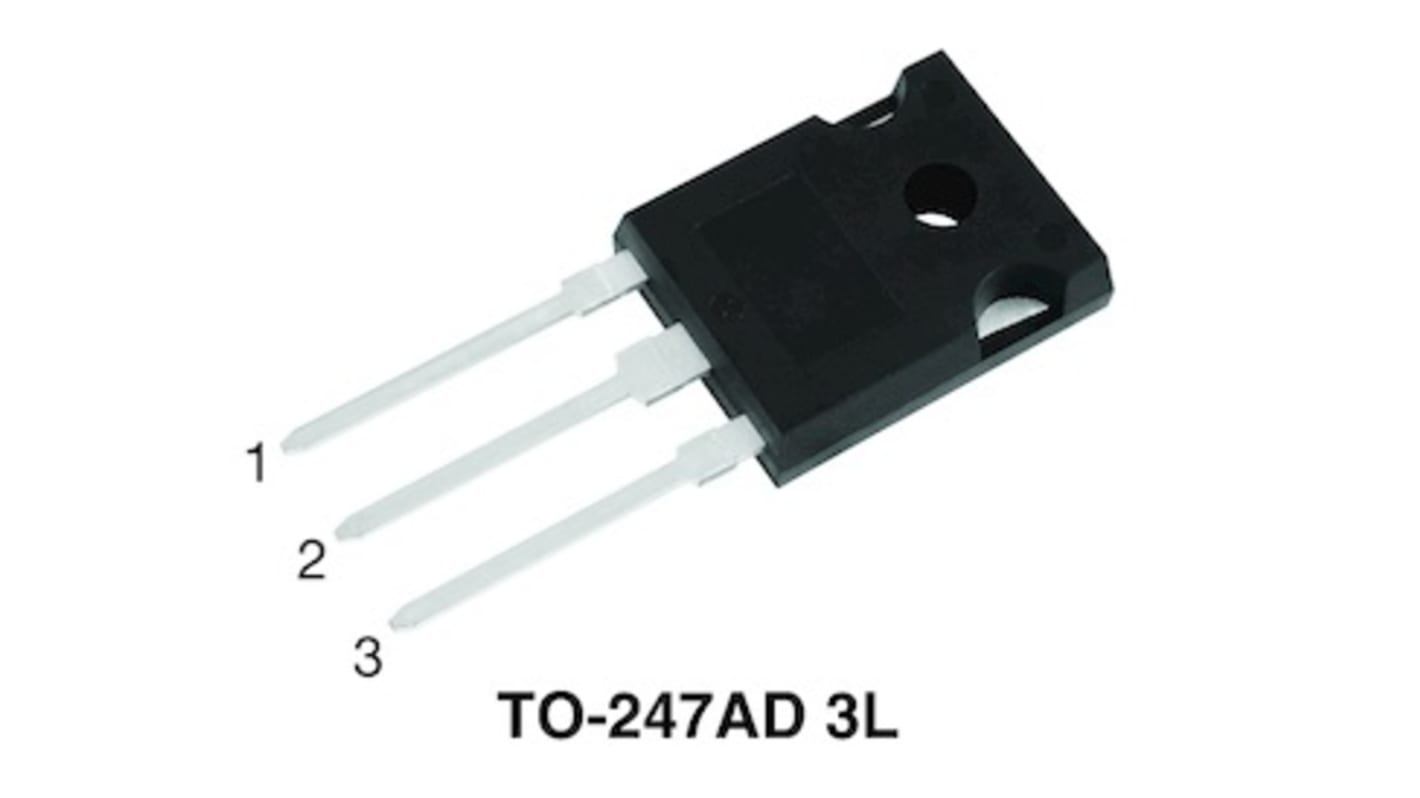

This image is representative of the product range
Bulk discount available
Subtotal (1 tube of 25 units)*
$232.50
(exc. GST)
$255.75
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 475 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 25 - 25 | $9.30 | $232.50 |
| 50 - 75 | $8.611 | $215.28 |
| 100 - 225 | $8.37 | $209.25 |
| 250 - 475 | $8.026 | $200.65 |
| 500 + | $7.371 | $184.28 |
*price indicative
- RS Stock No.:
- 279-9475
- Mfr. Part No.:
- VS-3C20CP07L-M3
- Brand:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Surface | |
| Product Type | Rectifier & Schottky Diode | |
| Package Type | TO-247AD 3L | |
| Maximum Continuous Forward Current If | 10A | |
| Peak Reverse Repetitive Voltage Vrrm | 650V | |
| Diode Configuration | 2x Common Cathode Pair | |
| Series | VS-3C20CP07 | |
| Rectifier Type | Schottky | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -55°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A | |
| Maximum Forward Voltage Vf | 1.5V | |
| Peak Reverse Current Ir | 55μA | |
| Maximum Operating Temperature | 175°C | |
| Height | 5.31mm | |
| Standards/Approvals | UL, RoHS | |
| Length | 15.87mm | |
| Width | 20.7 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Surface | ||
Product Type Rectifier & Schottky Diode | ||
Package Type TO-247AD 3L | ||
Maximum Continuous Forward Current If 10A | ||
Peak Reverse Repetitive Voltage Vrrm 650V | ||
Diode Configuration 2x Common Cathode Pair | ||
Series VS-3C20CP07 | ||
Rectifier Type Schottky | ||
Pin Count 3 | ||
Minimum Operating Temperature -55°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 60A | ||
Maximum Forward Voltage Vf 1.5V | ||
Peak Reverse Current Ir 55μA | ||
Maximum Operating Temperature 175°C | ||
Height 5.31mm | ||
Standards/Approvals UL, RoHS | ||
Length 15.87mm | ||
Width 20.7 mm | ||
Automotive Standard No | ||
The Vishay 650 V power SiC Gen 3 merged PIN schottky diode. It comes with improved VF and efficiency by thin wafer technology. Majority carrier diode using Schottky technology on SiC wide band gap material.
RoHS compliant
Halogen free
UL 94 V-0 flammability rating
Very low profile
Temperature invariant switching behaviour
