Vishay 650 V 8 A Rectifier & Schottky Diode SiC Schottky 3-Pin D2PAK VS-3C08ET07S2L-M3
- RS Stock No.:
- 279-9446
- Mfr. Part No.:
- VS-3C08ET07S2L-M3
- Brand:
- Vishay

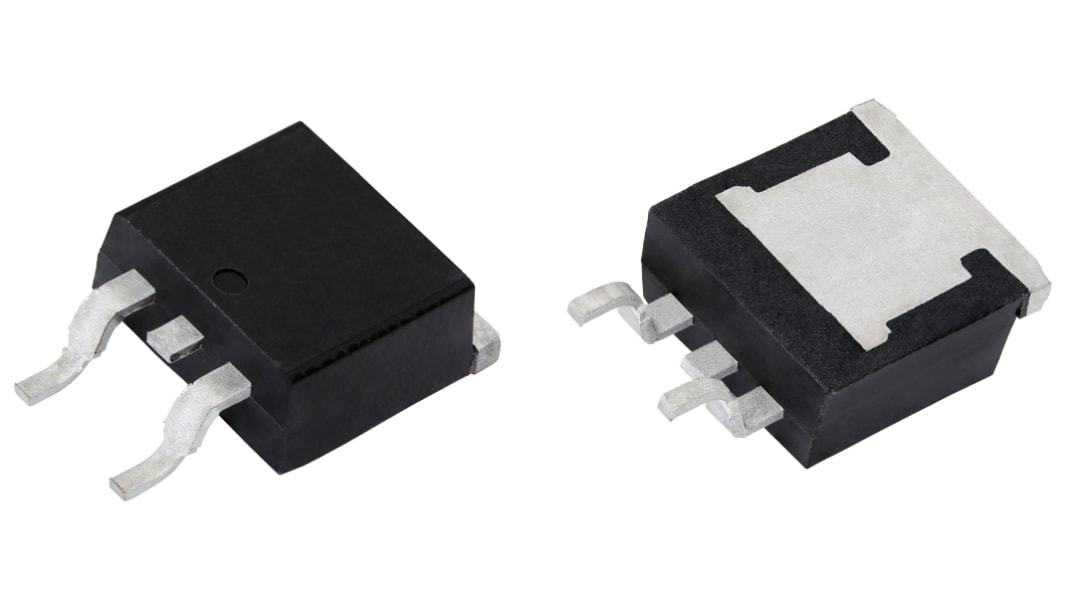

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
$6.29
(exc. GST)
$6.92
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 800 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | $6.29 |
| 25 - 49 | $5.21 |
| 50 - 99 | $4.71 |
| 100 - 249 | $4.30 |
| 250 + | $4.01 |
*price indicative
- RS Stock No.:
- 279-9446
- Mfr. Part No.:
- VS-3C08ET07S2L-M3
- Brand:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Surface | |
| Product Type | Rectifier & Schottky Diode | |
| Package Type | TO-263 | |
| Maximum Continuous Forward Current If | 8A | |
| Peak Reverse Repetitive Voltage Vrrm | 650V | |
| Series | VS-3C08ET07 | |
| Diode Configuration | Single | |
| Rectifier Type | SiC Schottky | |
| Pin Count | 3 | |
| Peak Reverse Current Ir | 45μA | |
| Maximum Forward Voltage Vf | 1.8V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 54A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | UL, RoHS | |
| Length | 10.67mm | |
| Width | 11.3 mm | |
| Height | 4.83mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Surface | ||
Product Type Rectifier & Schottky Diode | ||
Package Type TO-263 | ||
Maximum Continuous Forward Current If 8A | ||
Peak Reverse Repetitive Voltage Vrrm 650V | ||
Series VS-3C08ET07 | ||
Diode Configuration Single | ||
Rectifier Type SiC Schottky | ||
Pin Count 3 | ||
Peak Reverse Current Ir 45μA | ||
Maximum Forward Voltage Vf 1.8V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 54A | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals UL, RoHS | ||
Length 10.67mm | ||
Width 11.3 mm | ||
Height 4.83mm | ||
Automotive Standard No | ||
The Vishay 650 V power SiC Gen 3 merged PIN schottky diode. It comes with improved VF and efficiency by thin wafer technology. Majority carrier diode using Schottky technology on SiC wide band gap material.
RoHS compliant
Halogen free
UL 94 V-0 flammability rating
Very low profile
Temperature invariant switching behaviour
