STMicroelectronics 100 V 40 A Rectifier & Schottky Diode Rectifier Diode 3-Pin TO-247

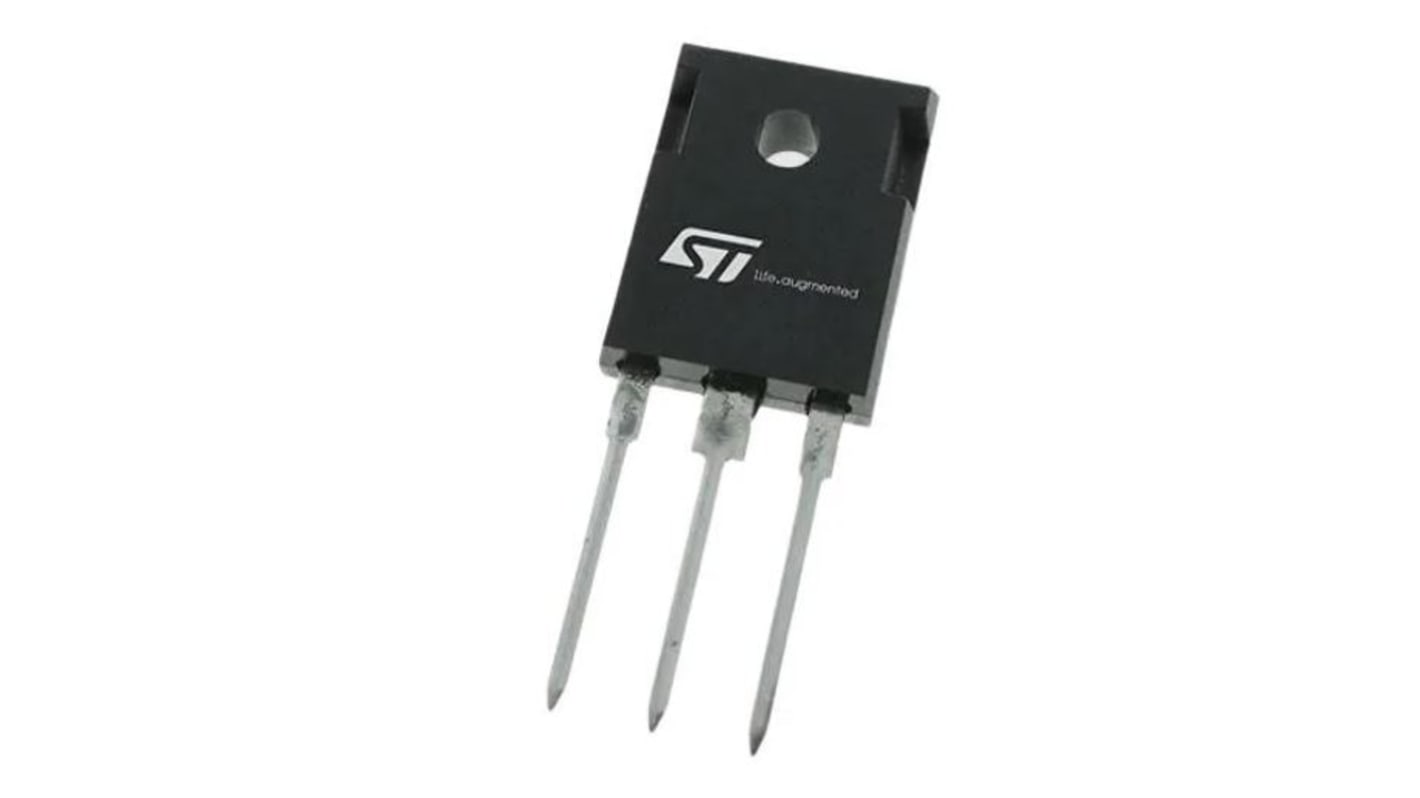

This image is representative of the product range

View this category
Bulk discount available

Subtotal (1 tube of 30 units)*

$160.17

(exc. GST)

$176.19

(inc. GST)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 600 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Tube*
30 - 30$5.339$160.17
60 - 60$4.805$144.15
90 +$4.325$129.75

*price indicative

RS Stock No.:
273-5107
Mfr. Part No.:
STPS80H100CWLY
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Mount Type

Through Hole

Product Type

Rectifier & Schottky Diode

Package Type

TO-247

Maximum Continuous Forward Current If

40A

Peak Reverse Repetitive Voltage Vrrm

100V

Diode Configuration

Dual

Series

STPS

Rectifier Type

Rectifier Diode

Pin Count

3

Minimum Operating Temperature

-65°C

Peak Non-Repetitive Forward Surge Current Ifsm

550A

Maximum Operating Temperature

175°C

Standards/Approvals

RoHS

Length

16.02mm

Height

41.4mm

Automotive Standard

AEC-Q101

COO (Country of Origin):
CN
The STMicroelectronics low voltage drop power Schottky rectifier has been designed for high frequency switched mode power supply applications for DC/DC converters used in electrical cars.

AEC-Q101 qualified

PPAP capable

Negligible switching losses

High junction temperature capability
