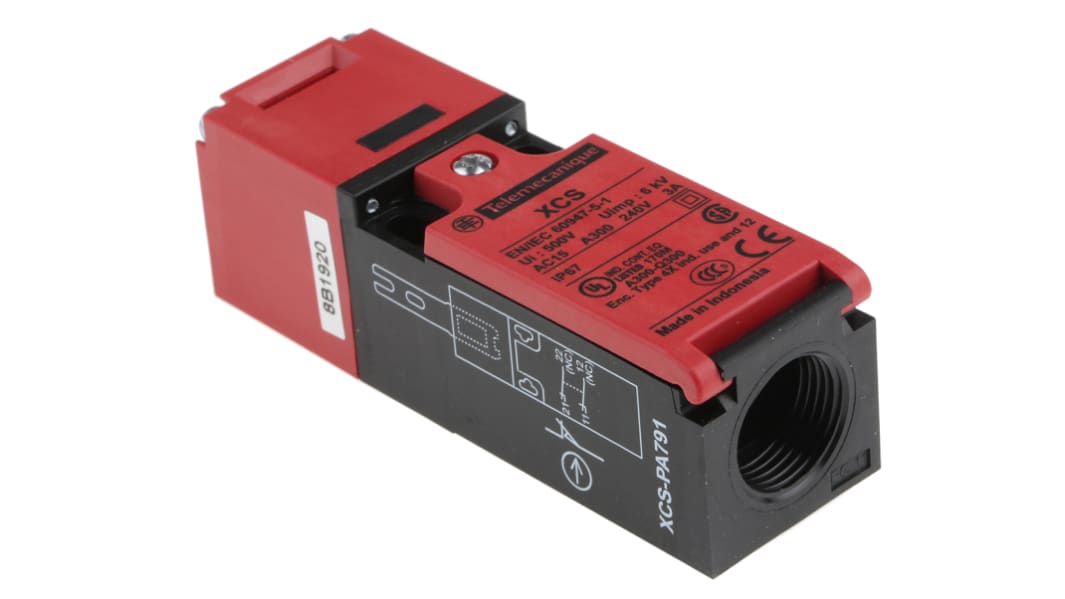

Telemecanique Sensors XCSPA Safety Interlock Switch, Keyed Actuator Included, Fibreglass Reinforced Nylon, Interlock
- RS Stock No.:
- 305-1966
- Distrelec Article No.:
- 303-99-951
- Mfr. Part No.:
- XCSPA791
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
$124.56
(exc. GST)
$137.02
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- 6 unit(s) ready to ship
- Plus 71 unit(s) ready to ship from another location
- Plus 7 unit(s) shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $124.56 |
*price indicative
- RS Stock No.:
- 305-1966
- Distrelec Article No.:
- 303-99-951
- Mfr. Part No.:
- XCSPA791
- Brand:
- Telemecanique Sensors
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Lock Style | Keyed | |
| Product Type | Safety Interlock Switch | |
| Lock Type | Interlock | |
| Actuator Included | Yes | |
| Housing Material | Fibreglass Reinforced Nylon | |
| Series | XCSPA | |
| IP Rating | IP67 | |
| Contact DC Voltage | 250V dc | |
| Contact AC Voltage | 240V ac | |
| Switch Contact Current | 6A | |
| Minimum Operating Temperature | -25°C | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 70°C | |
| Width | 30mm | |
| Number of Head Directions | 8 | |
| Standards/Approvals | UL, CSA C22.2 No. 14, EN/ISO 12100, EN/IEC 60529, ISO 14119, UL 508, EN/IEC 60947-5-1, CSA, EN 1088, EN/IEC 60204-1 | |
| Length | 94mm | |
| Depth | 30mm | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Lock Style Keyed | ||
Product Type Safety Interlock Switch | ||
Lock Type Interlock | ||
Actuator Included Yes | ||
Housing Material Fibreglass Reinforced Nylon | ||
Series XCSPA | ||
IP Rating IP67 | ||
Contact DC Voltage 250V dc | ||
Contact AC Voltage 240V ac | ||
Switch Contact Current 6A | ||
Minimum Operating Temperature -25°C | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 70°C | ||
Width 30mm | ||
Number of Head Directions 8 | ||
Standards/Approvals UL, CSA C22.2 No. 14, EN/ISO 12100, EN/IEC 60529, ISO 14119, UL 508, EN/IEC 60947-5-1, CSA, EN 1088, EN/IEC 60204-1 | ||
Length 94mm | ||
Depth 30mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- ID
Telemecanique Sensors Rotating Hinge Switch
The Telemecanique sensors XCSPA series interlock switch has 2NC switch configuration. It has a maximum voltage of 240VAC/250VDC and a maximum current of 6A. The housing material is polyamide and it is available in a key lock style.
Features and Benefits
2 positive opening contacts as standard, on guard opening
Head rotates in 90° steps giving 8 actuator entry points
Minimum operating force for positive opening is 15N
1 x cable entry tapped PG11
Operating temperature ranges between -25°C and 70°C
Certifications
IP67 rated
EN1088
EN60204
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/ISO 12100
EN/IEC 60204-1
EN 1088/ISO 14119
UL 508
