Siretta QUARTZ-GOLD-GW21-LTE4 (EU) + ACCESSORIES 3G, 4G, 1 x WAN/1 x LAN, 2 x LAN Ports

RS Stock No.:: 219-8152
Mfr. Part No.:: QUARTZ-GOLD-GW21-LTE4(EU) + ACC
Brand:: Siretta

Siretta QUARTZ-GOLD-GW21-LTE4 (EU) + ACCESSORIES 3G, 4G, 1 x WAN/1 x LAN, 2 x LAN Ports

Bulk discount available

Subtotal (1 unit)**

$888.64

(exc. GST)

$977.50

(inc. GST)

8 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 - 1	$888.64
2 - 4	$876.22
5 - 9	$858.68
10 - 24	$841.52
25 +	$828.70

**price indicative

RS Stock No.:: 219-8152
Mfr. Part No.:: QUARTZ-GOLD-GW21-LTE4(EU) + ACC
Brand:: Siretta

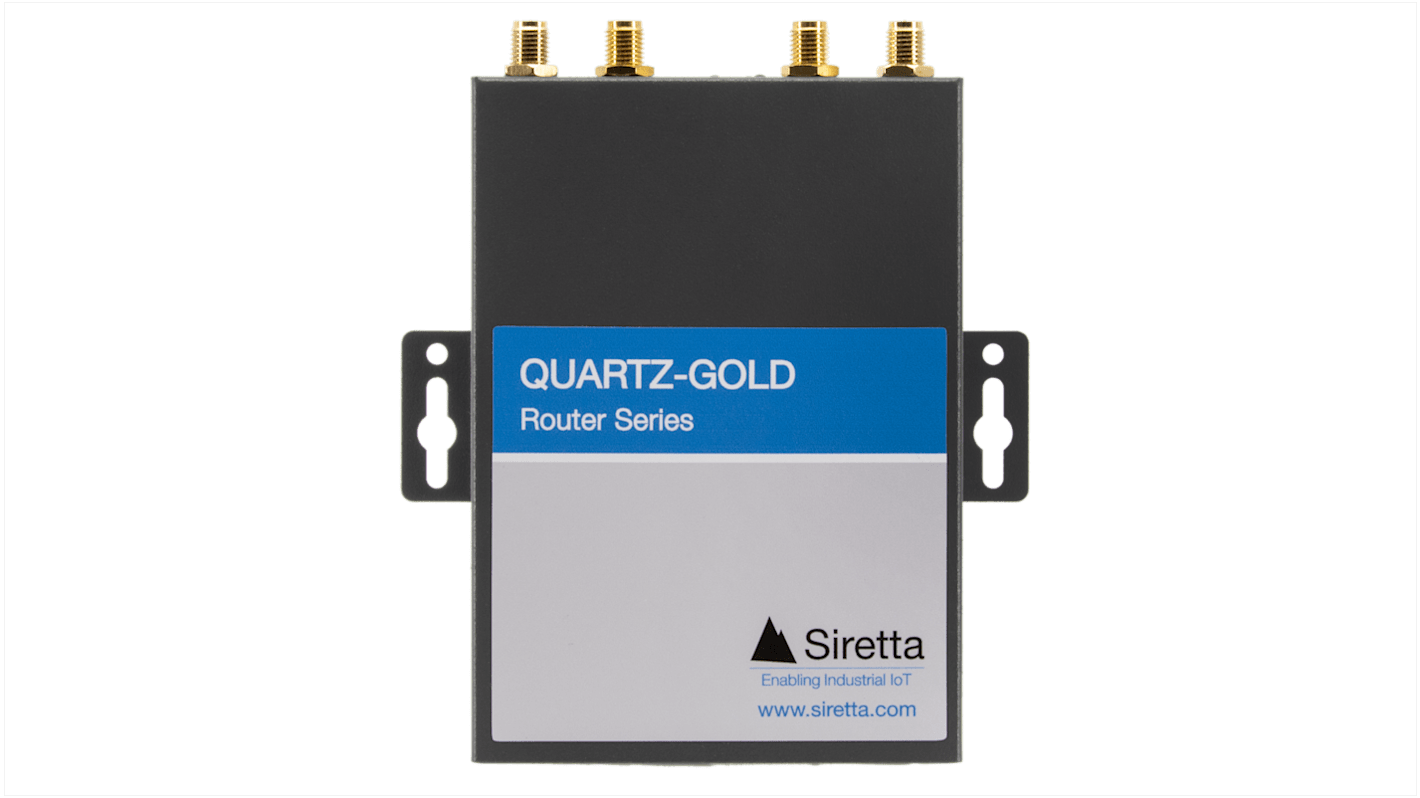

Siretta QUARTZ-GOLD 4G GbE LAN WiFI GPS Router With Accessories

The QUARTZ-GOLD router meets many of the needs for management of remote systems and communication channels and therefore has applications in renewable energy, security, digital signage, transport, street furniture, traffic control, parking systems, environmental monitoring, and many other IoT mobile broadband applications.
The QUARTZ-GOLD router comes as standard with a single SIM slot, dual port gigabit ethernet capability and 2.4GHz and 5GHz Wifi.
In addition the QUARTZ-GOLD supports RS232 serial connectivity as standard (RS485 can be ordered as an option)

Features & Benefits

European 4G LTE bands
2.4 GHz and 5 GHz Wi-Fi support
GPS Capability
Dual Gigabit LAN
RS232 (RS485 an option)
Compact Design
High speed data via LTE network
Strong resistance to electromagnetic interference
Built-in watch dog, multi-link detection
Excellent temperature endurance
VPN: PPTP, L2TP, GRE, IPSec

Physical Interfaces

2 x 10/1000 RJ-45 Ethernet Interfaces
1 x Standard SIM/R-UIM interface
2 x RP-SMA (Male) Wi-Fi Interface
1 x SMA (Female) Cellular interface
1 x SMA (Female) GPS interface
1 x DC Power Interface (7.5 to 32 V DC)

The Siretta QUARTZ-GOLD router is a high performance industrial router designed for transferring large amounts of data via the European LTE Cat 4 cellular network, with dual built in Gigabit Ethernet ports. The QUARTZ-GOLD’s fast data transfer capability reaches up to 150Mbps download and up to 50Mbps upload speed. It also has fall-back to 3G/UMTS communication, should 4G/LTE be unavailable. It is well suited for IoT/mobile broadband applications, offering reliable, secure wireless connectivity.

Applications

Payment Services
Vending machine connectivity
Retail POS
Internet based Video surveillance
Digital signage

Accessories Included

1 x Cellular Antenna
1 x WiFi Antenna
1 x GPS Antenna
1 x LAN Cable
1 x Power Block Interface
1 x Multi Head Power Adaptor

Certifications

CE
UKCA
RoHS
EN61000-6-2

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Siretta
	Router Type	Cellular Gigabit Dual LAN Wifi GPS Router
	Model	QUARTZ-GOLD-GW21-LTE4 (EU) + ACCESSORIES
	Wireless Connectivity	3G, 4G
	Network Speed	150 Mbps
	Wireless Data Rate	150Mbit/s
	WiFi Standard	IEEE 802.11 b/g/n/a/c
	WiFi Band	2.4 GHz & 5GHz
	Depth	25.5mm
	Width	73.5mm
	Height	103mm

	Select all
	Brand Siretta
	Router Type Cellular Gigabit Dual LAN Wifi GPS Router
	Model QUARTZ-GOLD-GW21-LTE4 (EU) + ACCESSORIES
	Wireless Connectivity 3G, 4G
	Network Speed 150 Mbps
	Wireless Data Rate 150Mbit/s
	WiFi Standard IEEE 802.11 b/g/n/a/c
	WiFi Band 2.4 GHz & 5GHz
	Depth 25.5mm
	Width 73.5mm
	Height 103mm
