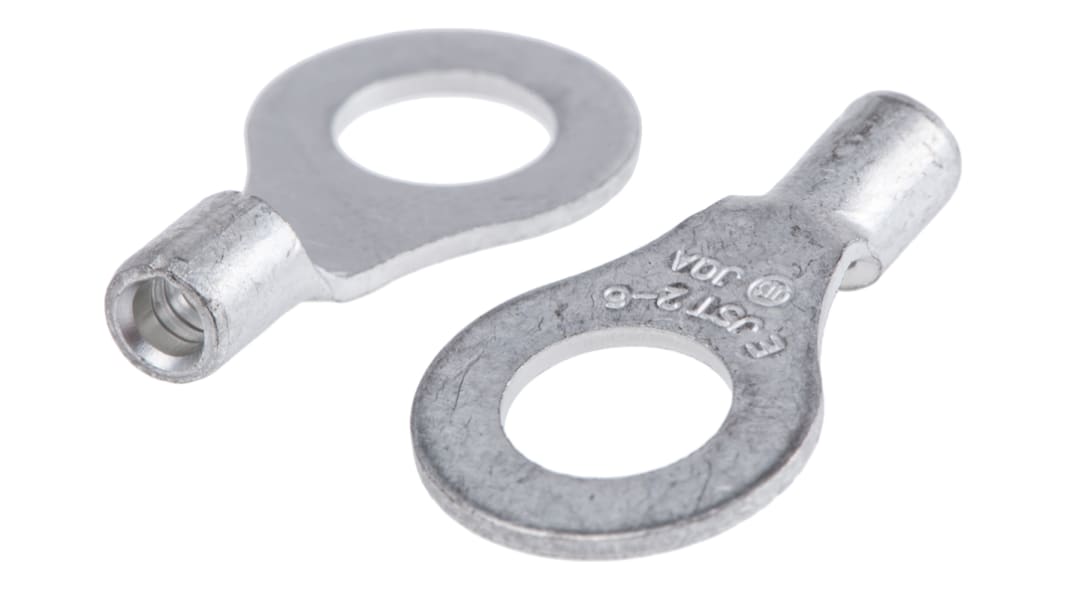

JST Uninsulated Ring Terminal, 6mm Stud Size, 1mm² to 2.6mm² Wire Size
- RS Stock No.:
- 604-8345
- Mfr. Part No.:
- R2-6
- Brand:
- JST
46 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) 1 Bag of 100
$12.63
(exc. GST)
$13.89
(inc. GST)
| Bag(s) | Per Bag | Per unit* |
| 1 - 9 | $12.63 | $0.126 |
| 10 - 24 | $12.31 | $0.123 |
| 25 + | $11.77 | $0.118 |
| *price indicative | ||
- RS Stock No.:
- 604-8345
- Mfr. Part No.:
- R2-6
- Brand:
- JST
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Uninsulated Crimp Ring Terminals, JST
A range of uninsulated crimp ring terminals from JST to suit stud sizes from 3 to 12mm and wire sizes from 0.2 to 10.5mm² (26 to 8 AWG). The terminals have butted seams and are made from tin-plated oxygen-free copper.
Note
JST part numbers Rxxx conform to JIS C2805
Standards
• UL Listed E42024
• CSA Certified LR20812
• CSA Certified LR20812
JST Terminals
Specifications
Attribute | Value |
|---|---|
| Insulation | Uninsulated |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | 6mm |
| Overall Length | 21.8mm |
