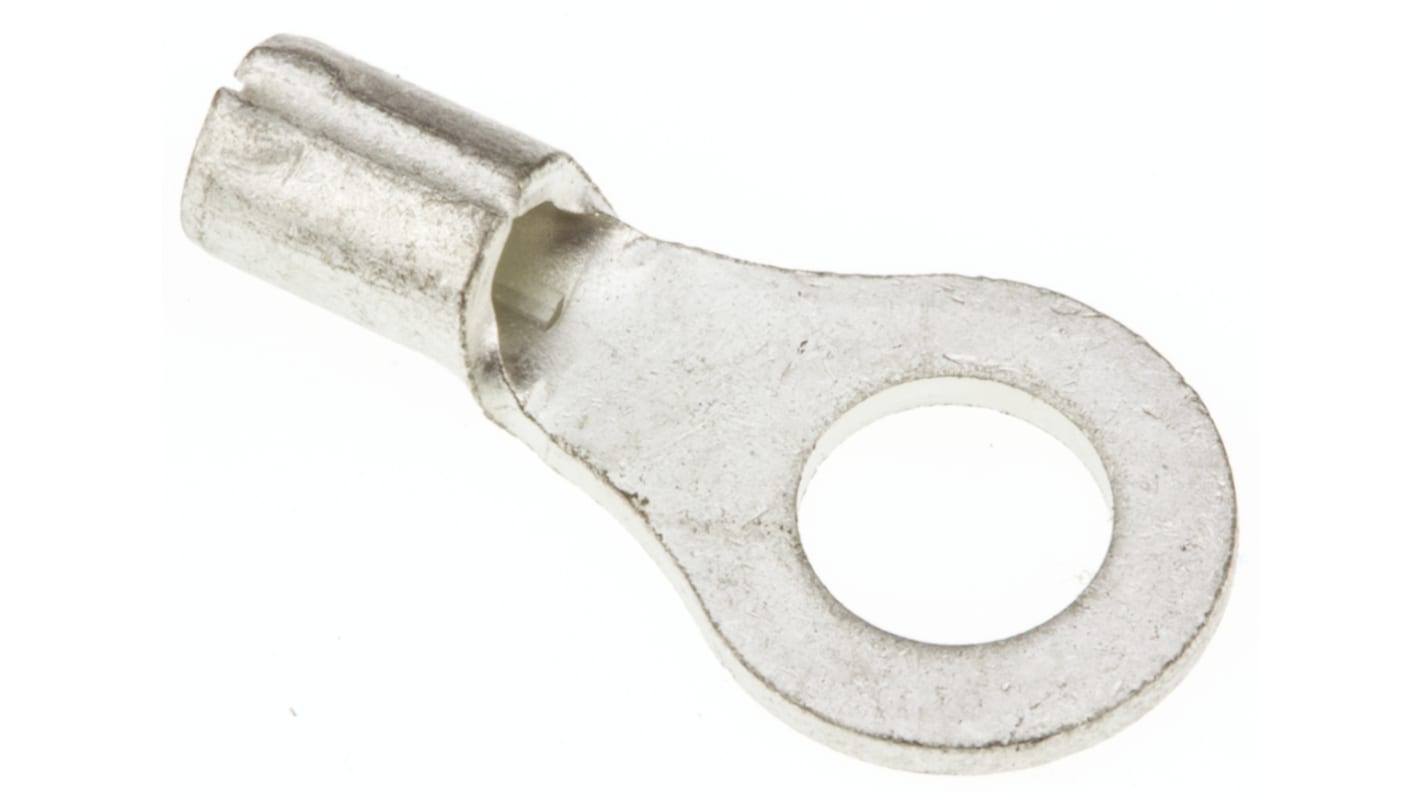

JST, R Uninsulated Ring Terminal, 4mm Stud Size, 0.25mm² to 1.65mm² Wire Size
- RS Stock No.:
- 166-7396
- Mfr. Part No.:
- 1.25-4
- Brand:
- JST
6 In Global stock for delivery within 5 working day(s)
10 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) 1 Box of 1000
$106.12
(exc. GST)
$116.73
(inc. GST)
| Box(es) | Per Box | Per unit* |
| 1 - 4 | $106.12 | $0.106 |
| 5 + | $95.50 | $0.096 |
| *price indicative | ||
- RS Stock No.:
- 166-7396
- Mfr. Part No.:
- 1.25-4
- Brand:
- JST
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- ID
Product Details
Uninsulated Crimp Ring Terminals, JST
A range of uninsulated crimp ring terminals from JST to suit stud sizes from 3 to 12mm and wire sizes from 0.2 to 10.5mm² (26 to 8 AWG). The terminals have butted seams and are made from tin-plated oxygen-free copper.
Note
JST part numbers Rxxx conform to JIS C2805
Standards
• UL Listed E42024
• CSA Certified LR20812
• CSA Certified LR20812
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
JST Terminals
Specifications
Attribute | Value |
|---|---|
| Series | R |
| Insulation | Uninsulated |
| Inner Ring Diameter | 4.3mm |
| Outer Ring Diameter | 8mm |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size mm² | 0.25mm² |
| Maximum Wire Size AWG | 16AWG |
| Minimum Wire Size AWG | 22AWG |
| Stud Size | 4mm |
| Thickness | 0.8mm |
| Overall Length | 15.8mm |
