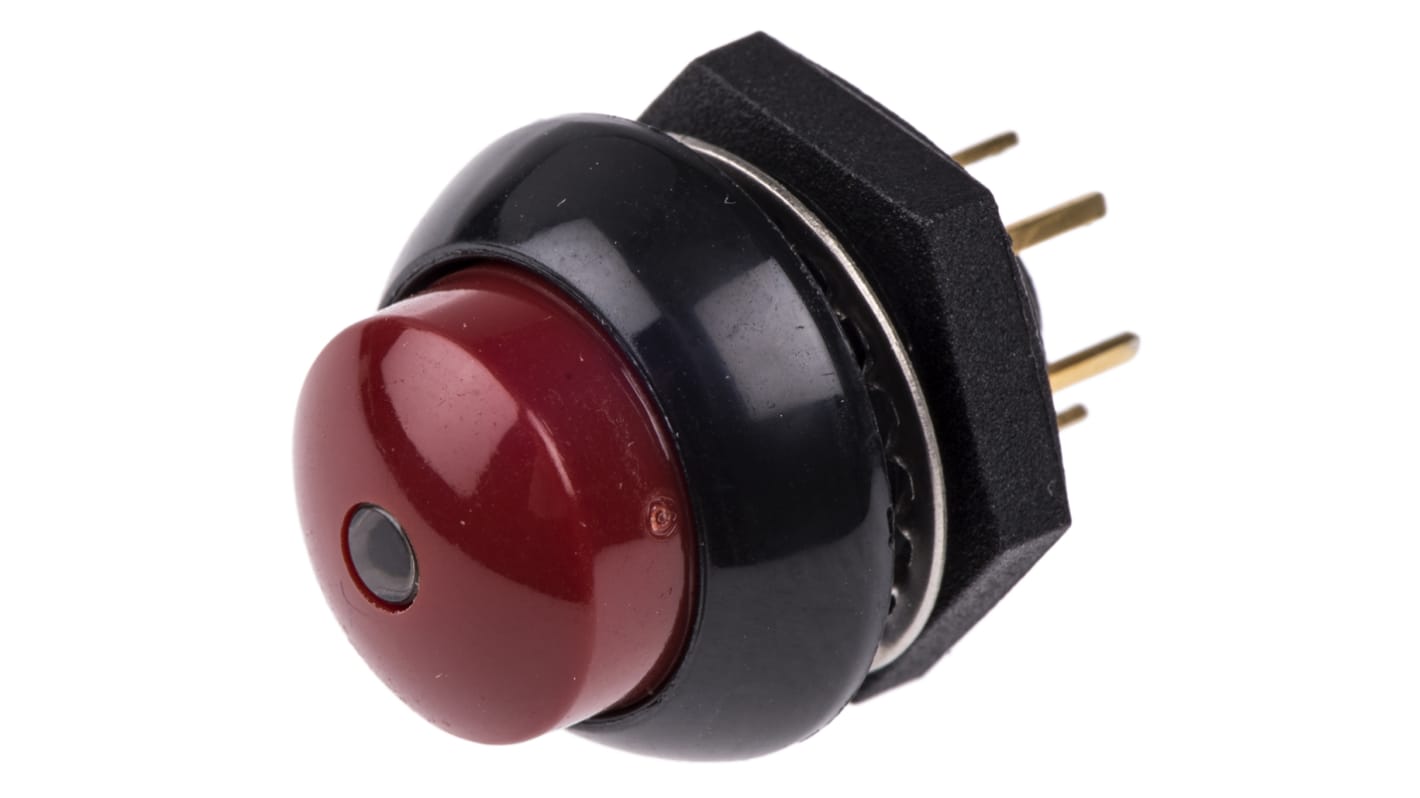

Otto P9 Series Illuminated Push Button Switch, Momentary, Panel, SPDT, Red LED, IP68S, 28 V dc 115 V ac
- RS Stock No.:
- 811-8073
- Mfr. Part No.:
- LP9-21231F21
- Brand:
- Otto
Bulk discount available
Subtotal (1 unit)*
$35.46
(exc. GST)
$39.01
(inc. GST)
Add 2 units to get free delivery
In Stock
- Plus 94 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | $35.46 |
| 10 - 24 | $34.60 |
| 25 - 99 | $33.33 |
| 100 - 199 | $32.64 |
| 200 + | $31.94 |
*price indicative
- RS Stock No.:
- 811-8073
- Mfr. Part No.:
- LP9-21231F21
- Brand:
- Otto
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Otto | |
| Actuator Colour | Red | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Series | P9 | |
| Mount Type | Panel | |
| Contact Configuration | SPDT | |
| LED Colour | Red | |
| Terminal Type | PC Terminal | |
| IP Rating | IP68S | |
| Minimum Operating Temperature | -55°C | |
| Actuator Style | Raised Button | |
| Contact AC Voltage | 115V ac | |
| Contact DC Voltage | 28V dc | |
| Switch Configuration | On-On | |
| Maximum Operating Temperature | 85°C | |
| Switch Contact Current | 5 A | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Otto | ||
Actuator Colour Red | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Series P9 | ||
Mount Type Panel | ||
Contact Configuration SPDT | ||
LED Colour Red | ||
Terminal Type PC Terminal | ||
IP Rating IP68S | ||
Minimum Operating Temperature -55°C | ||
Actuator Style Raised Button | ||
Contact AC Voltage 115V ac | ||
Contact DC Voltage 28V dc | ||
Switch Configuration On-On | ||
Maximum Operating Temperature 85°C | ||
Switch Contact Current 5 A | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- US
Otto LP9 Illuminated Pushbuttons (IP68)
Quality, precision flush dome switch, designed for use in panels, control grips, instruments and other applications where rugged Illuminated IP68 pushbutton switches are required
Positive tactile feedback
Withstands extreme shock and vibration
Short, behind-panel depth
Contact rating: 5A @ 28 Vdc or 115 Vac
Available in matte or standard finish
Note
The LED operating voltage is 12 Vdc
