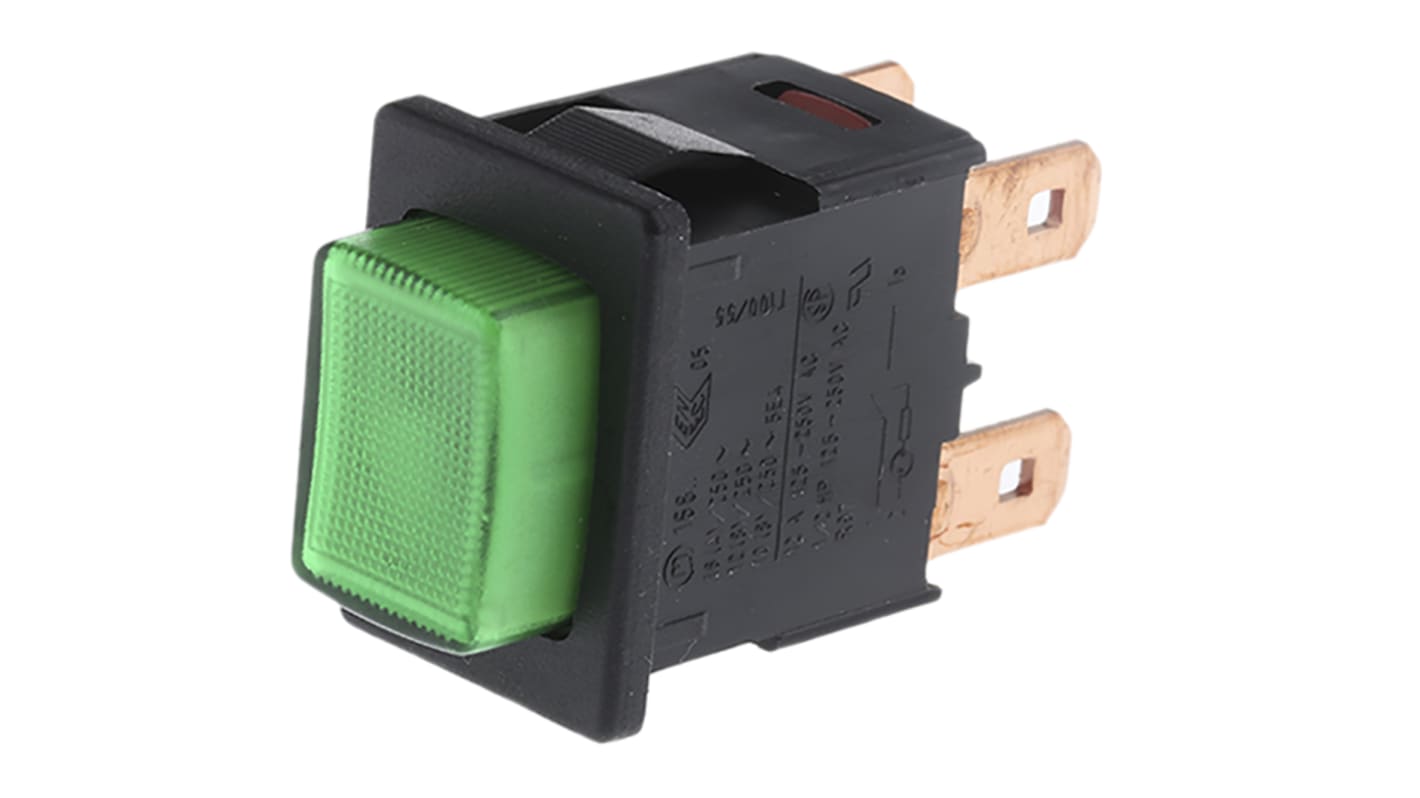

Marquardt Illuminated Push Button Switch, Panel Green, DPDT, IP67

RS Stock No.:: 472-1824
Distrelec Article No.:: 135-03-821
Mfr. Part No.:: 1687.1104
Brand:: Marquardt

Marquardt Illuminated Push Button Switch, Panel Green, DPDT, IP67

Bulk discount available

Subtotal (1 unit)*

$12.00

(exc. GST)

$13.20

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

17 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 49	$12.00
50 - 99	$11.83
100 - 249	$11.66
250 - 499	$11.49
500 +	$11.33

*price indicative

RS Stock No.:: 472-1824
Distrelec Article No.:: 135-03-821
Mfr. Part No.:: 1687.1104
Brand:: Marquardt

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Marquardt
	Product Type	Push Button Switch
	Illuminated	Yes
	Mount Type	Panel
	Push Button Actuation	Direct
	Push Button Colour	Green
	Contact Configuration	DPDT
	Push Button Style	Rectangular
	Terminal Type	Tab
	IP Rating	IP67
	Minimum Operating Temperature	-20°C
	Illumination Voltage	230 V
	Maximum Operating Temperature	120°C
	Push Button Material	Polycarbonate
	Hazardous Area Certification	No
	Standards/Approvals	RoHS, UL, ENEC 05, CSA
	Body Material	Fibreglass Reinforced Polyamide

	Select all
	Brand Marquardt
	Product Type Push Button Switch
	Illuminated Yes
	Mount Type Panel
	Push Button Actuation Direct
	Push Button Colour Green
	Contact Configuration DPDT
	Push Button Style Rectangular
	Terminal Type Tab
	IP Rating IP67
	Minimum Operating Temperature -20°C
	Illumination Voltage 230 V
	Maximum Operating Temperature 120°C
	Push Button Material Polycarbonate
	Hazardous Area Certification No
	Standards/Approvals RoHS, UL, ENEC 05, CSA
	Body Material Fibreglass Reinforced Polyamide

COO (Country of Origin):: TN

Marquardt 1683 Series Push Button Switches

Marquardt 1683 series single and double pole push button switches. The 1683 push button switches are suitable for use in Class II appliances and are available with non illuminated or illuminated (red or green) 230Vac neon actuators. The Marquardt 1683 push button switches have silver contacts with SPNO, SPST, DPST and DPNO switching formats which have high switching capabilities of up to 16A. These Marquardt push button switches feature 4.8mm Faston/Quick Connect style terminals.

High current rating, up to 16A

UL 94 flammability (actuator: V-0, socket: V-1, housing: V-2)

Mechanical life 100,000 operations

Marquardt Push Button Switches

Note

The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.

Approvals

UL; CSA; ENEC
