- RS Stock No.:
- 173-7943
- Mfr. Part No.:
- 1241.6622.5120000
- Brand:
- Schurter
On back order for despatch 09/07/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Box of 10)
$42.738
(exc. GST)
$47.012
(inc. GST)
Units | Per unit | Per Box* |
10 - 10 | $42.738 | $427.38 |
20 - 30 | $41.799 | $417.99 |
40 + | $40.902 | $409.02 |
*price indicative |
- RS Stock No.:
- 173-7943
- Mfr. Part No.:
- 1241.6622.5120000
- Brand:
- Schurter
Technical data sheets
Legislation and Compliance
Product Details

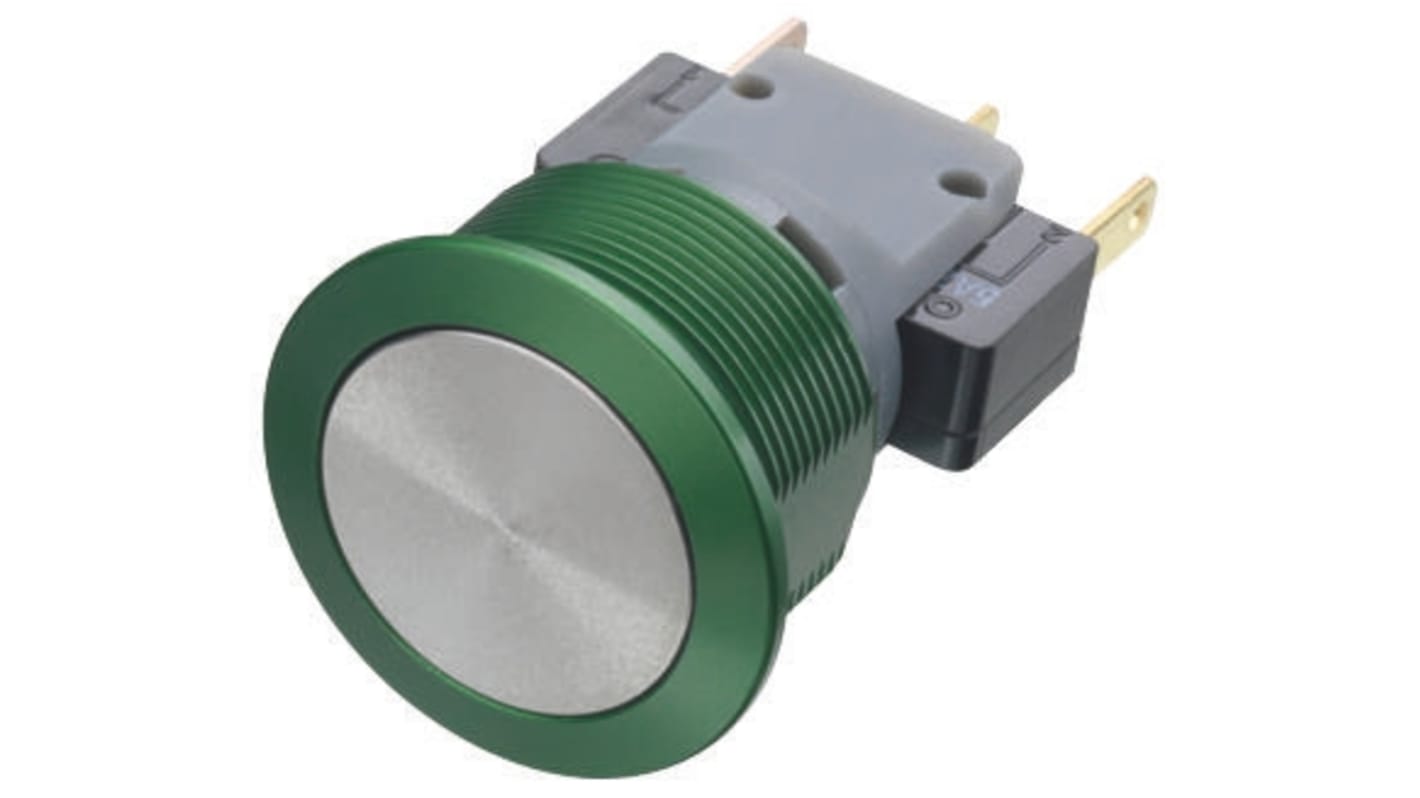

Anti-Vandal M19 & M22 Push Button Switches - MSM Series (Single Pole)
Robust pushbutton switch suitable for use in harsh environments - IK07 shock resistance (DIN EN 50102)
Stainless steel housing (anodised aluminium for colour housed versions) and momentary actuator - IP67 protection for front side contact area
Actuator with 4.5N operating force and 1mm travel - protrudes 1.7mm above panel
Quick connect terminals
Long life - up to 1,500,000 mechanical operations
Non illuminated or red LED ring illuminated versions available in 19 or 22mm Ø panel cut outs
Illuminated versions also include a resistor and is fixed at 24V
Stainless steel housing (anodised aluminium for colour housed versions) and momentary actuator - IP67 protection for front side contact area
Actuator with 4.5N operating force and 1mm travel - protrudes 1.7mm above panel
Quick connect terminals
Long life - up to 1,500,000 mechanical operations
Non illuminated or red LED ring illuminated versions available in 19 or 22mm Ø panel cut outs
Illuminated versions also include a resistor and is fixed at 24V
Approvals
ENEC, UL, CSA
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Switch Operation | Momentary |
Illuminated | No |
Panel Cut Out Diameter | 19mm |
Mounting Type | Panel Mount |
Contact Configuration | SPDT |
Voltage Rating | 250V ac |
Push Button Style | Round |
IP Rating | IP40 |
Contact Current Rating | 5 A @ 250 V ac |
Contact Material | Silver |
Case Colour | Green |
Manufacturer Part No. | 1241.6622.5120000 |
Terminal Type | Through Hole |
