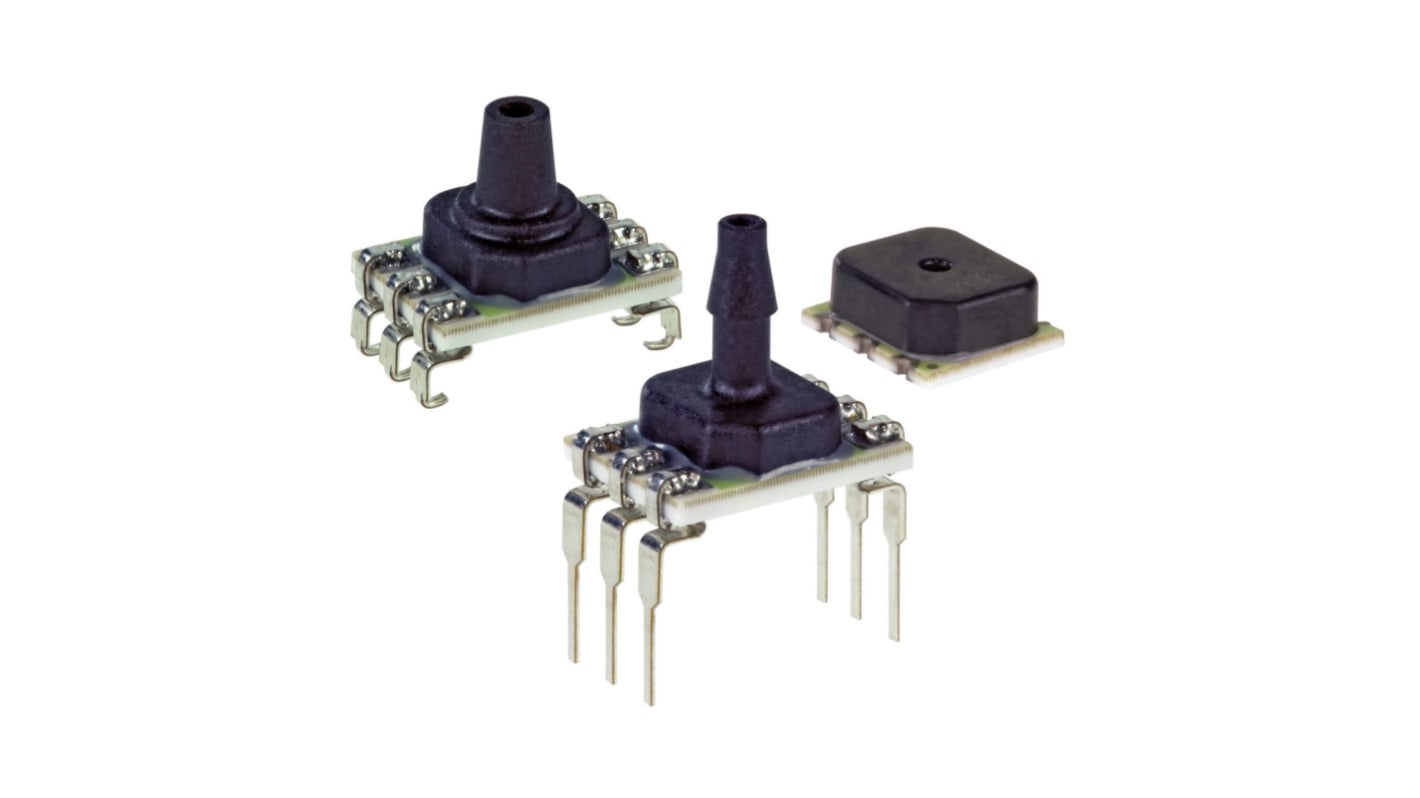

Honeywell ABPDANT030PG0D3 Piezoresistive Pressure SensorThrough Hole 6 DIP

View all Pressure Sensor ICs
Bulk discount available

Subtotal (1 unit)*

$73.66

(exc. GST)

$81.03

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • Plus 81 unit(s) shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9$73.66
10 - 24$72.33
25 - 49$71.01
50 +$69.77

*price indicative

Packaging Options:
RS Stock No.:
226-9600
Mfr. Part No.:
ABPDANT030PG0D3
Brand:
Honeywell
Find similar products by selecting one or more attributes.
Select all

Brand

Honeywell

Product Type

Piezoresistive Pressure Sensor

Maximum Overload Pressure

413kPa

Sensor Type

Gauge Pressure Sensor

Mount Type

Through Hole

Package Type

DIP

Pin Count

6

Minimum Supply Voltage

-0.3V

Maximum Operating Pressure

206 kPa

Maximum Supply Voltage

5V

Port Type

Single Axial Barbed

Accuracy

±0.25 %

Maximum Operating Temperature

85°C

Standards/Approvals

No

Series

ABP

Length

7.3mm

Height

3.63mm

Width

6.3 mm

Minimum Operating Pressure

0psi

Minimum Operating Temperature

-40°C

Automotive Standard

No

The Honeywell ABP Series are piezoresistive silicon pressure sensors offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. They are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and accuracy errors which include non linearity, repeatability and hysteresis using an on board Application Specific Integrated Circuit that is ASIC.

Measures gauge and differential pressures

High burst pressures

REACH and RoHS compliant

Meets moisture Sensitivity Level 1 requirements
