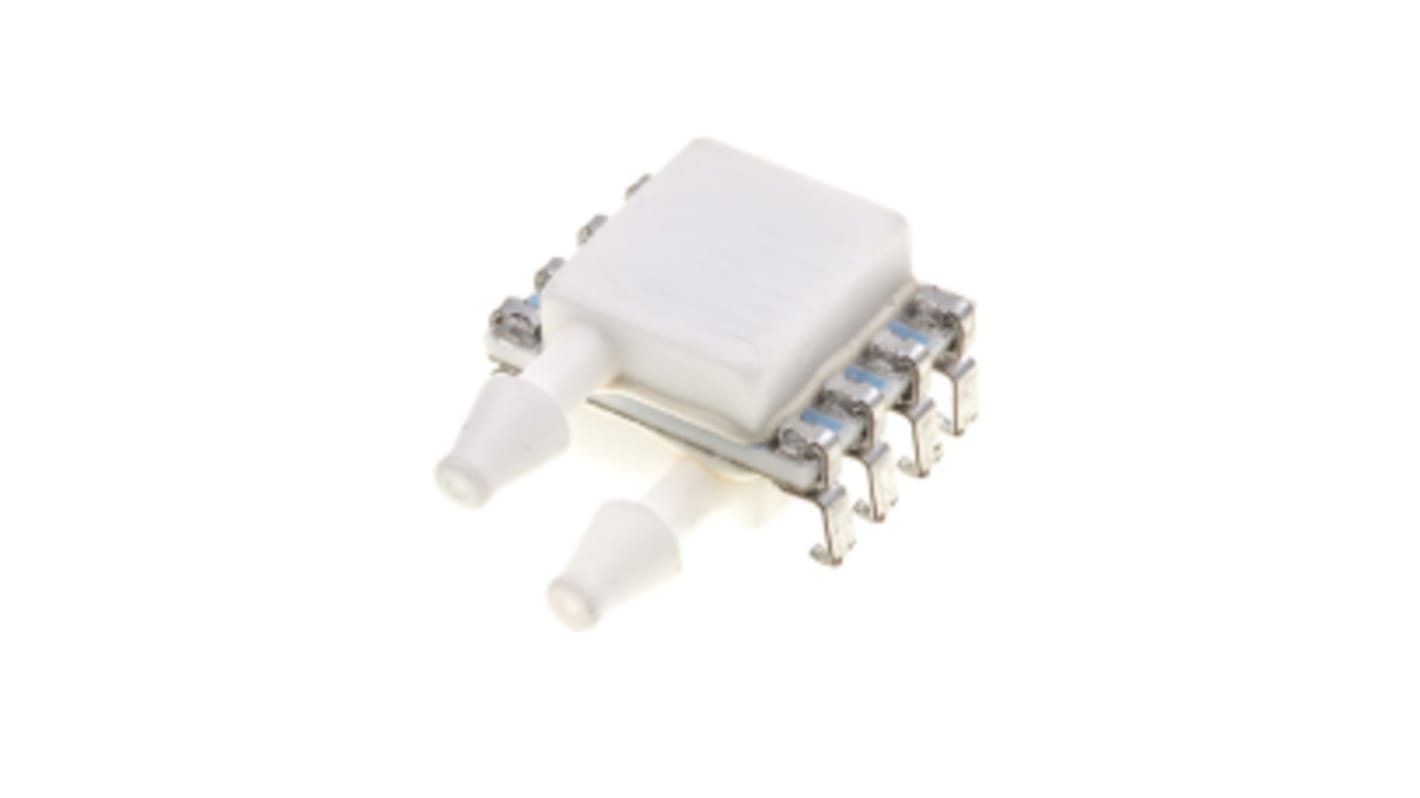

TE Connectivity Differential Pressure Sensor, 10psi Operating Max, PCB Mount, 8-Pin, 300psi Overload Max, Dual Sideport
- RS Stock No.:
- 146-8198
- Mfr. Part No.:
- 4515DO-DS3BK020DPL
- Brand:
- TE Connectivity
On back order for despatch 20/05/2025, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Tray of 10)
$92.68
(exc. GST)
$101.95
(inc. GST)
| Units | Per unit | Per Tray* |
| 10 - 10 | $92.68 | $926.80 |
| 20 - 30 | $91.317 | $913.17 |
| 40 + | $88.972 | $889.72 |
| *price indicative | ||
- RS Stock No.:
- 146-8198
- Mfr. Part No.:
- 4515DO-DS3BK020DPL
- Brand:
- TE Connectivity
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The MS4515DO is a small, ceramic based, PCB mounted pressure transducer from Measurement Specialties. The transducer is built using the latest CMOS sensor conditioning circuitry to create a low cost, high performance digital output pressure (14bit) and temperature (11bit) transducer designed to meet the strictest requirements from OEM customers. The MS4515DO is fully calibrated and temperature compensated with a total error band (TEB) of less than 1.0 over the compensated range. The sensor operates from single supply of either 3.3 or 5.0VDC and requires a single external component for proper operation.
PCB Mounted Digital Output Transducer
Combination Temperature and Pressure
Pressure Ranges from 2 to 30 inches H2O
I2C or SPI Protocol
Differential & Gage
Temperature Compensated
Combination Temperature and Pressure
Pressure Ranges from 2 to 30 inches H2O
I2C or SPI Protocol
Differential & Gage
Temperature Compensated
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Maximum Overload Pressure | 300psi |
| Sensor Type | Differential Pressure Sensors |
| Mounting Type | PCB Mount |
| Package Type | Dual Sideport |
| Pin Count | 8 |
| Dimensions | 17.4 x 12.4 x 7.2mm |
| Maximum Operating Pressure | 10psi |
| Maximum Operating Supply Voltage | 3.3 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -10 °C |
