TE Connectivity 4515DO-DS3BK005DP Piezoresistive Pressure SensorPCB 8 Dual Sideport
- RS Stock No.:
- 146-8196
- Mfr. Part No.:
- 4515DO-DS3BK005DP
- Brand:
- TE Connectivity

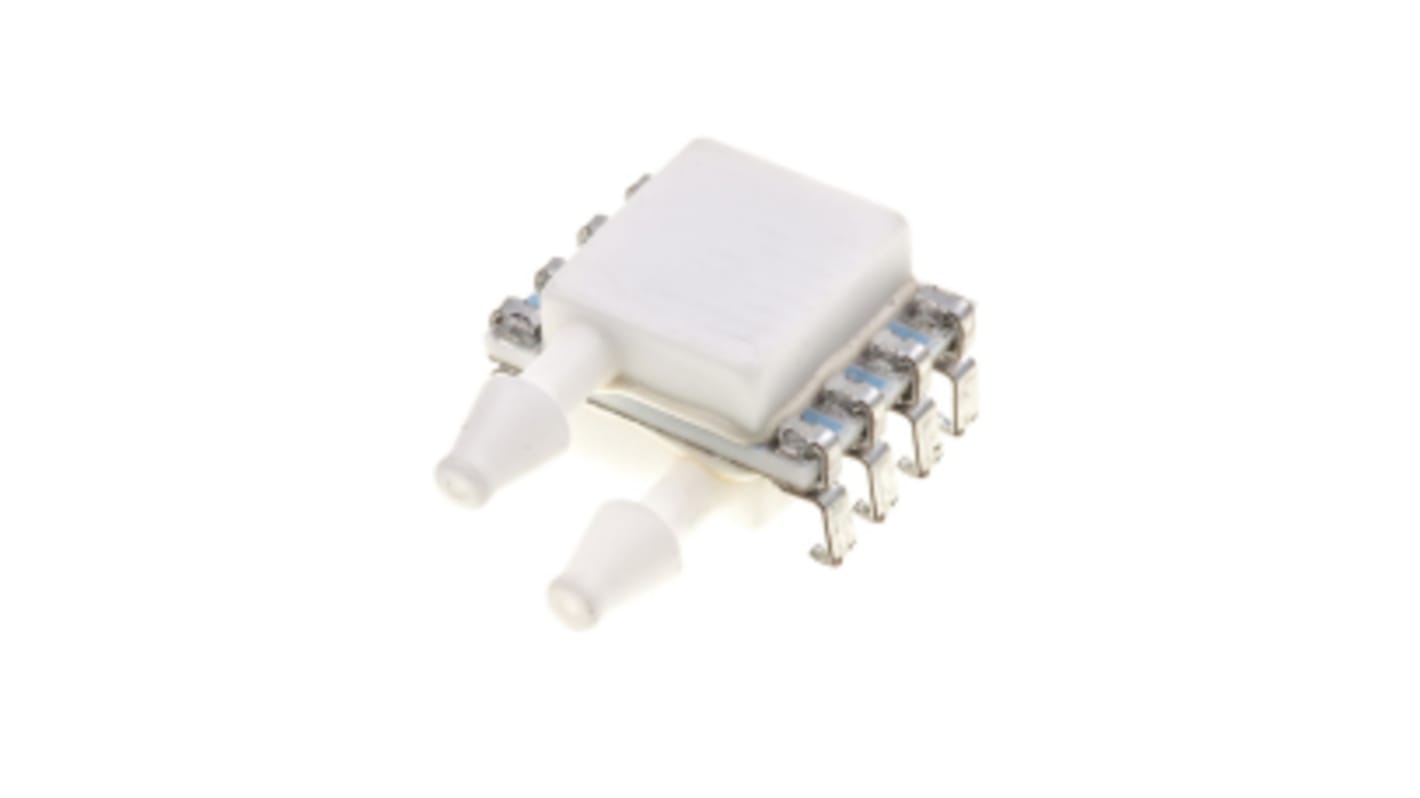

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 146-8196
- Mfr. Part No.:
- 4515DO-DS3BK005DP
- Brand:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Sensor Type | Differential Pressure Sensor | |
| Product Type | Piezoresistive Pressure Sensor | |
| Maximum Overload Pressure | 300psi | |
| Mount Type | PCB | |
| Package Type | Dual Sideport | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Operating Pressure | 10 psi | |
| Maximum Supply Voltage | 5.5V | |
| Accuracy | 0.25 % Span | |
| Port Type | Manifold, Dual Side, Side | |
| Maximum Operating Temperature | 85°C | |
| Length | 12.4mm | |
| Standards/Approvals | Mil Spec 202F, EN 61000-4-2 | |
| Series | MS4515DO | |
| Width | 7.2 mm | |
| Height | 17.4mm | |
| Minimum Operating Pressure | 2in/H2O | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -10°C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Sensor Type Differential Pressure Sensor | ||
Product Type Piezoresistive Pressure Sensor | ||
Maximum Overload Pressure 300psi | ||
Mount Type PCB | ||
Package Type Dual Sideport | ||
Pin Count 8 | ||
Minimum Supply Voltage 2.7V | ||
Maximum Operating Pressure 10 psi | ||
Maximum Supply Voltage 5.5V | ||
Accuracy 0.25 % Span | ||
Port Type Manifold, Dual Side, Side | ||
Maximum Operating Temperature 85°C | ||
Length 12.4mm | ||
Standards/Approvals Mil Spec 202F, EN 61000-4-2 | ||
Series MS4515DO | ||
Width 7.2 mm | ||
Height 17.4mm | ||
Minimum Operating Pressure 2in/H2O | ||
Automotive Standard No | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- CN
The MS4515DO is a small, ceramic based, PCB mounted pressure transducer from Measurement Specialties. The transducer is built using the latest CMOS sensor conditioning circuitry to create a low cost, high performance digital output pressure (14bit) and temperature (11bit) transducer designed to meet the strictest requirements from OEM customers. The MS4515DO is fully calibrated and temperature compensated with a total error band (TEB) of less than 1.0 over the compensated range. The sensor operates from single supply of either 3.3 or 5.0VDC and requires a single external component for proper operation.
PCB Mounted Digital Output Transducer
Combination Temperature and Pressure
Pressure Ranges from 2 to 30 inches H2O
I2C or SPI Protocol
Differential & Gage
Temperature Compensated
