Infineon High Side, High Side Power Switch IC 7-Pin, PG-TO220-7-4
- RS Stock No.:
- 258-7043
- Mfr. Part No.:
- BTS500551TMCATMA1
- Brand:
- Infineon

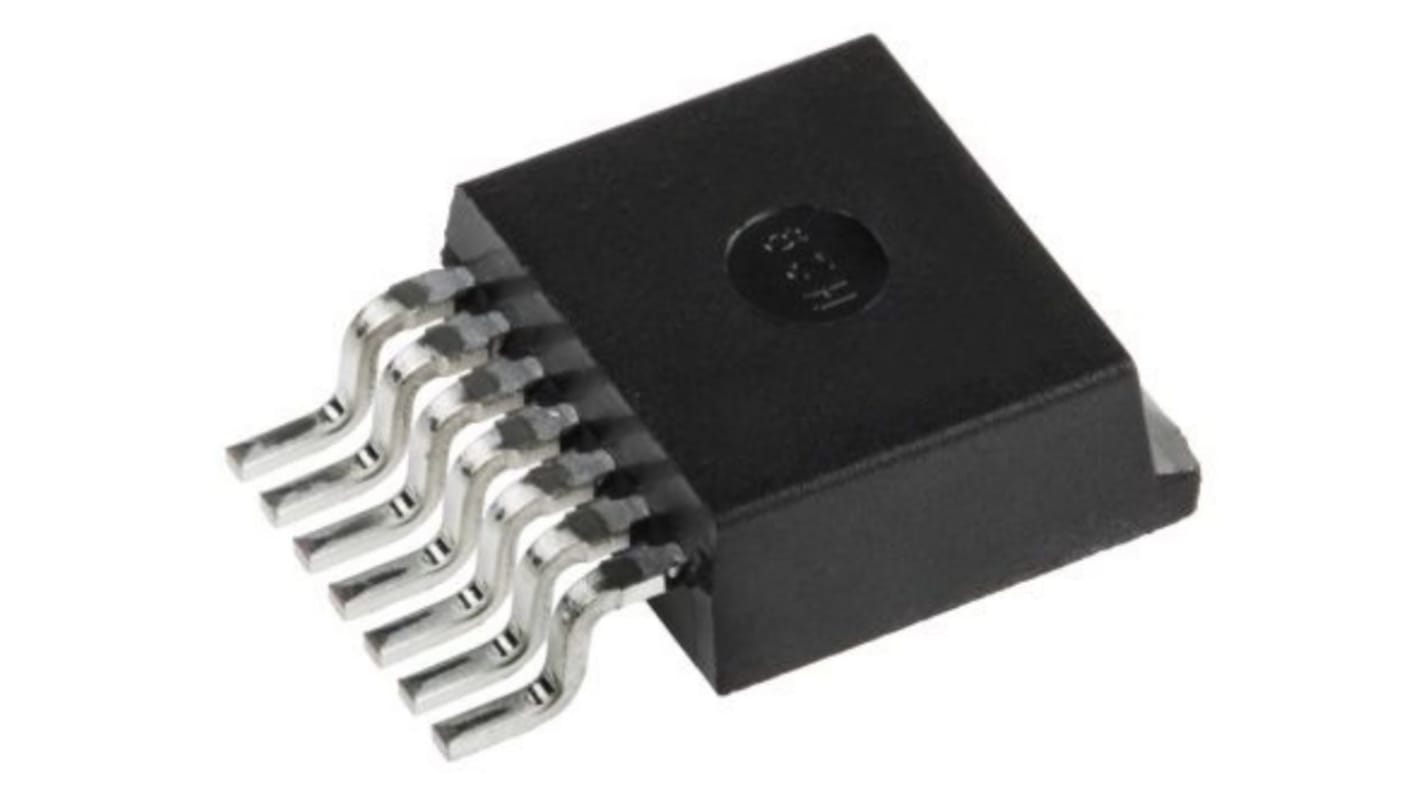

This image is representative of the product range
Subtotal (1 reel of 1000 units)*
$7,095.00
(exc. GST)
$7,804.00
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- Shipping from 08 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | $7.095 | $7,095.00 |
*price indicative
- RS Stock No.:
- 258-7043
- Mfr. Part No.:
- BTS500551TMCATMA1
- Brand:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Power Switch IC | |
| Power Switch Type | High Side | |
| Power Switch Topology | High Side | |
| Switch On Resistance RdsOn | 6mΩ | |
| Number of Outputs | 4 | |
| Power Rating | 170W | |
| Package Type | PG-TO220-7-4 | |
| Minimum Supply Voltage | 5V | |
| Pin Count | 7 | |
| Maximum Supply Voltage | 34V | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -40°C | |
| Operating Current | 70A | |
| Standards/Approvals | AEC, RoHS | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Power Switch IC | ||
Power Switch Type High Side | ||
Power Switch Topology High Side | ||
Switch On Resistance RdsOn 6mΩ | ||
Number of Outputs 4 | ||
Power Rating 170W | ||
Package Type PG-TO220-7-4 | ||
Minimum Supply Voltage 5V | ||
Pin Count 7 | ||
Maximum Supply Voltage 34V | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -40°C | ||
Operating Current 70A | ||
Standards/Approvals AEC, RoHS | ||
Automotive Standard AEC-Q100 | ||
The Infineon smart high side high current power switch is N channel vertical power FET with charge pump, current controlled input and diagnostic feedback with load current sense, integrated in Smart SIPMOS chip on chip technology. It also provides embedded protective functions and diagnostic functions.
Overload protection
Short circuit protection
Over temperature protection
Open load detection via current sense
Green product
