Infineon High Side, High Side Power Switch IC 7-Pin, PG-TO220-7-11

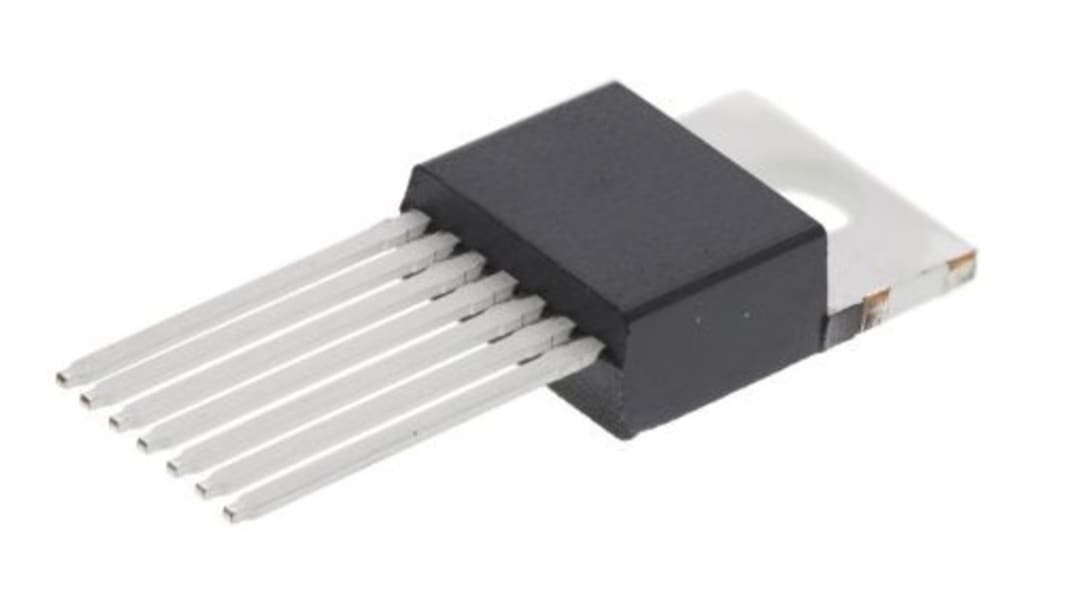

This image is representative of the product range

View all Power Switch ICs
Bulk discount available

Subtotal (1 tube of 50 units)*

$462.55

(exc. GST)

$508.80

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 350 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
50 - 50$9.251$462.55
100 - 200$8.044$402.20
250 - 450$7.683$384.15
500 - 950$6.993$349.65
1000 +$6.868$343.40

*price indicative

RS Stock No.:
258-7048
Mfr. Part No.:
BTS500851TMBAKSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Power Switch Topology

High Side

Product Type

Power Switch IC

Power Switch Type

High Side

Switch On Resistance RdsOn

9mΩ

Number of Outputs

4

Power Rating

170W

Package Type

PG-TO220-7-11

Minimum Supply Voltage

5V

Maximum Supply Voltage

58V

Pin Count

7

Maximum Operating Temperature

150°C

Operating Current

44A

Minimum Operating Temperature

-40°C

Standards/Approvals

RoHS, AEC

Automotive Standard

AEC-Q100

The Infineon smart high side high current power switch is N channel vertical power FET with charge pump, current controlled input and diagnostic feedback with load current sense, integrated in Smart SIPMOS chip on chip technology. It also provides embedded protective functions and diagnostic functions.

Overload protection

Short circuit protection

Over temperature protection

Open load detection via current sense

Green product
