Infineon EVAL-1EDI60I12AF IGBT Gate Driver for 1EDI60I12AF, IKW50N65F5 for EV Charger, Industrial Drives, Solar Energy

RS Stock No.:: 234-2076
Mfr. Part No.:: EVAL1EDI60I12AFTOBO1
Brand:: Infineon

Infineon EVAL-1EDI60I12AF IGBT Gate Driver for 1EDI60I12AF, IKW50N65F5 for EV Charger, Industrial Drives, Solar Energy

1 / 1

Bulk discount available

Subtotal (1 unit)**

$159.35

(exc. GST)

$175.29

(inc. GST)

2 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 - 2	$159.35
3 - 4	$157.77
5 +	$156.19

**price indicative

RS Stock No.:: 234-2076
Mfr. Part No.:: EVAL1EDI60I12AFTOBO1
Brand:: Infineon

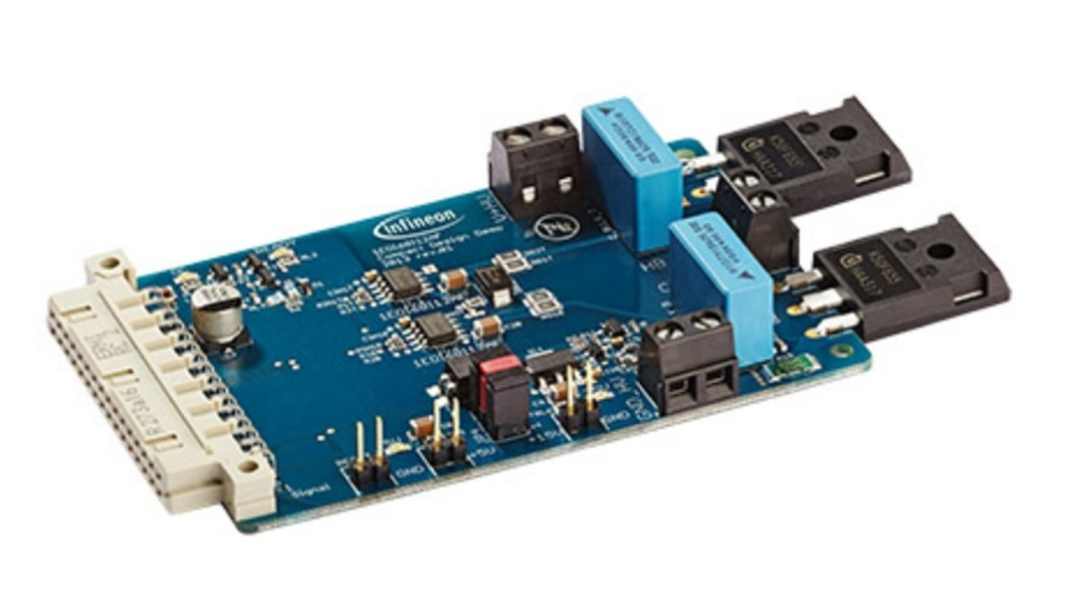

Infineon Evaluation board, IGBT Gate Driver, For Use With EV Charger/Industrial Drives/Solar Energy Systems - EVAL1EDI60I12AFTOBO1

This evaluation board demonstrates the functionalities of the Infineon IGBT gate driver, specifically the 1EDI60I12AF. It aids in the development of industrial power management solutions, improving the performance of applications such as electric vehicle chargers, industrial drives, and solar energy systems. Its design allows users to evaluate the driver’s capabilities while meeting the technical requirements for various high-voltage applications.

Features & Benefits

• Provides short circuit protection for enhanced safety
• Supports under voltage lock-out to prevent operational failures
• Incorporates a current sense amplifier for precise monitoring
• Bootstrap functionality optimises high-side gate driver performance
• Allows for input and output side separation for increased flexibility
• Operates with a high voltage supply range up to 500V

Applications

• Used in electric vehicle charger systems
• Integrated with industrial drives for power management
• Suitable for solar energy systems requiring robust gate drivers
• Employed in various power electronics development projects

What voltage supplies are needed for the board to function?

The board requires a +15V high voltage supply and a +5V for onboard circuits. Both supplies must remain stable for optimal performance.

How does the board handle overcurrent situations?

It detects overcurrent by measuring the voltage drop across a shunt resistor. When the threshold is exceeded, the gate driver inputs disable to protect the circuitry.

Can I modify the gate resistor values?

Yes, the resistor values can be adjusted to tailor the IGBT’s turn-on and turn-off characteristics. Care should be taken to manage potential noise and losses.

Is there an option for input to output isolation?

Yes, the board supports a separation feature by removing specific jumpers, allowing for a 1200V isolation between the input and output sides.

What load types can be connected to the evaluation board?

The board supports bi-directional currents and can connect to loads requiring alternating voltage, making it versatile for various applications.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Power Management Function	IGBT Gate Driver
	For Use With	EV Charger, Industrial Drives, Solar Energy Systems
	Kit Classification	Evaluation Board
	Featured Device	1EDI60I12AF, IKW50N65F5
	Kit Name	EVAL-1EDI60I12AF

	Select all
	Brand Infineon
	Power Management Function IGBT Gate Driver
	For Use With EV Charger, Industrial Drives, Solar Energy Systems
	Kit Classification Evaluation Board
	Featured Device 1EDI60I12AF, IKW50N65F5
	Kit Name EVAL-1EDI60I12AF
