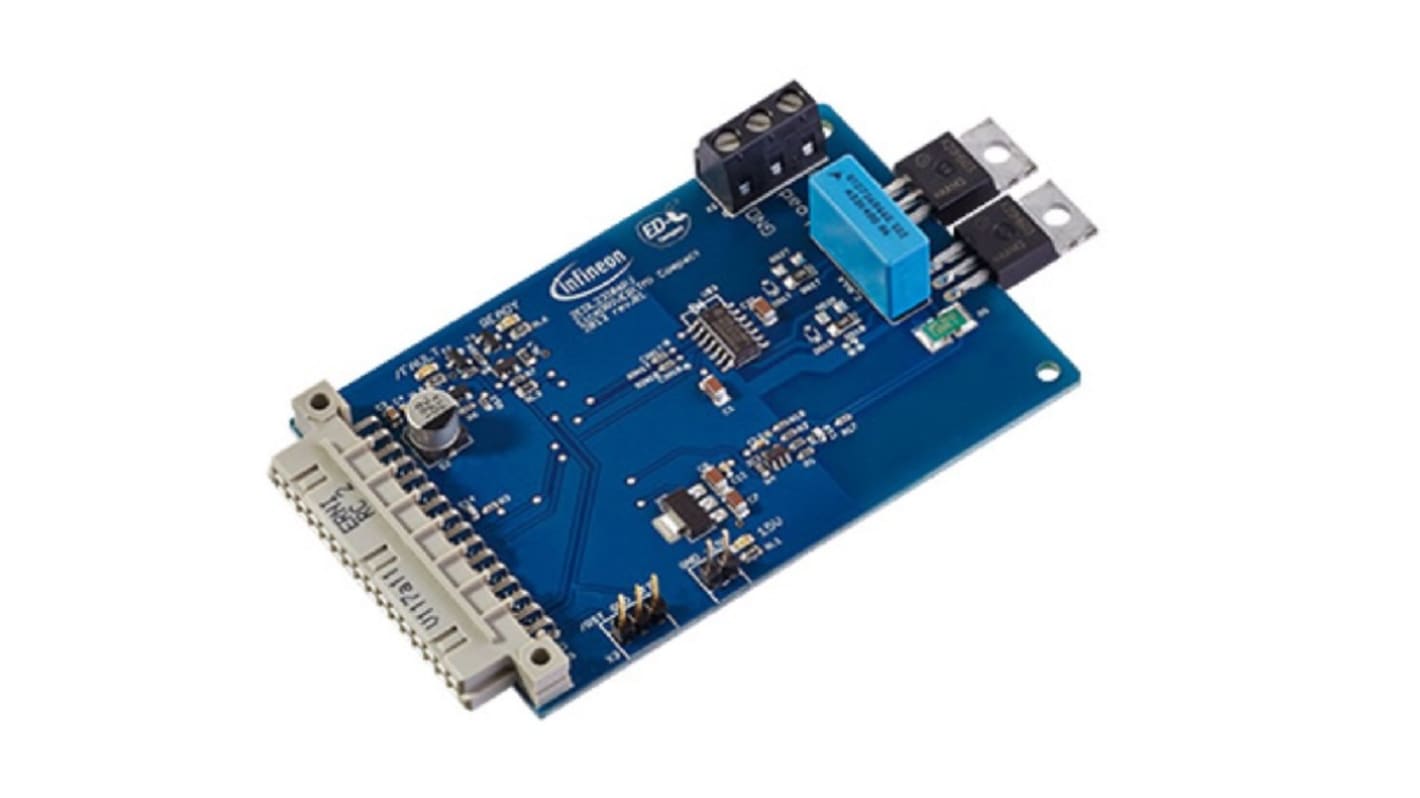

Infineon EVAL-2EDL23I06PJ IGBT Gate Driver for 2EDL23I06PJ for Air Conditioners, Drives, Fans, Pumps

RS Stock No.:: 234-2080
Mfr. Part No.:: EVAL2EDL23I06PJTOBO1
Brand:: Infineon

Infineon EVAL-2EDL23I06PJ IGBT Gate Driver for 2EDL23I06PJ for Air Conditioners, Drives, Fans, Pumps

Bulk discount available

Subtotal (1 unit)**

$158.11

(exc. GST)

$173.92

(inc. GST)

On back order for despatch 12/04/2025, delivery within 10 working days from despatch date.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Units	Per unit
1 - 2	$158.11
3 - 4	$156.53
5 +	$154.96

**price indicative

RS Stock No.:: 234-2080
Mfr. Part No.:: EVAL2EDL23I06PJTOBO1
Brand:: Infineon

Datasheet - 2EDL23x06PJ Family

Infineon Evaluation board, IGBT Gate Driver, For Use With Air Conditioners/Drives/Fans/Pumps - EVAL2EDL23I06PJTOBO1

This evaluation board is a vital tool for testing and demonstrating the capabilities of the IGBT gate driver, primarily aimed at power management applications such as air conditioning systems, drives, fans, and pumps. It provides an effective platform for development and evaluation, improving design efficiency while ensuring solid performance in various industrial applications.

Features & Benefits

• Integrated short circuit detection enhances safety
• Current measurement with an operational amplifier allows for precise monitoring
• Bootstrap functionality optimises high-side IGBT performance
• Undervoltage lockout ensures operational reliability
• Internal voltage regulation delivers a stable 5V supply
• Status LEDs facilitate straightforward fault diagnosis

Applications

• Driving and controlling air conditioning systems
• Evaluation of drive control systems
• Fan control in industrial settings
• Designed for rigorous use in industrial environments

What power supply voltages does it require for operation?

It requires a +15V supply for the driver output and can manage a high voltage supply of 320V to 450V.

How can fault states be identified during operation?

The board is equipped with status LEDs that indicate operational states and any fault conditions recognised by the IGBT driver.

Can this board accommodate different IGBT types?

Yes, it can adapt switching characteristics by modifying resistor values to suit various IGBT specifications.

Is external calibration necessary for current measurement?

While the board has built-in current amplification, calibration is advisable for critical applications due to component tolerances.

What safety mechanisms are integrated into the design?

It features short circuit protection, undervoltage lockout, and clear LED indicators to improve user safety and product reliability.

Attribute	Value
Power Management Function	IGBT Gate Driver
For Use With	Air Conditioners, Drives, Fans, Pumps
Kit Classification	Evaluation Board
Featured Device	2EDL23I06PJ
Kit Name	EVAL-2EDL23I06PJ
