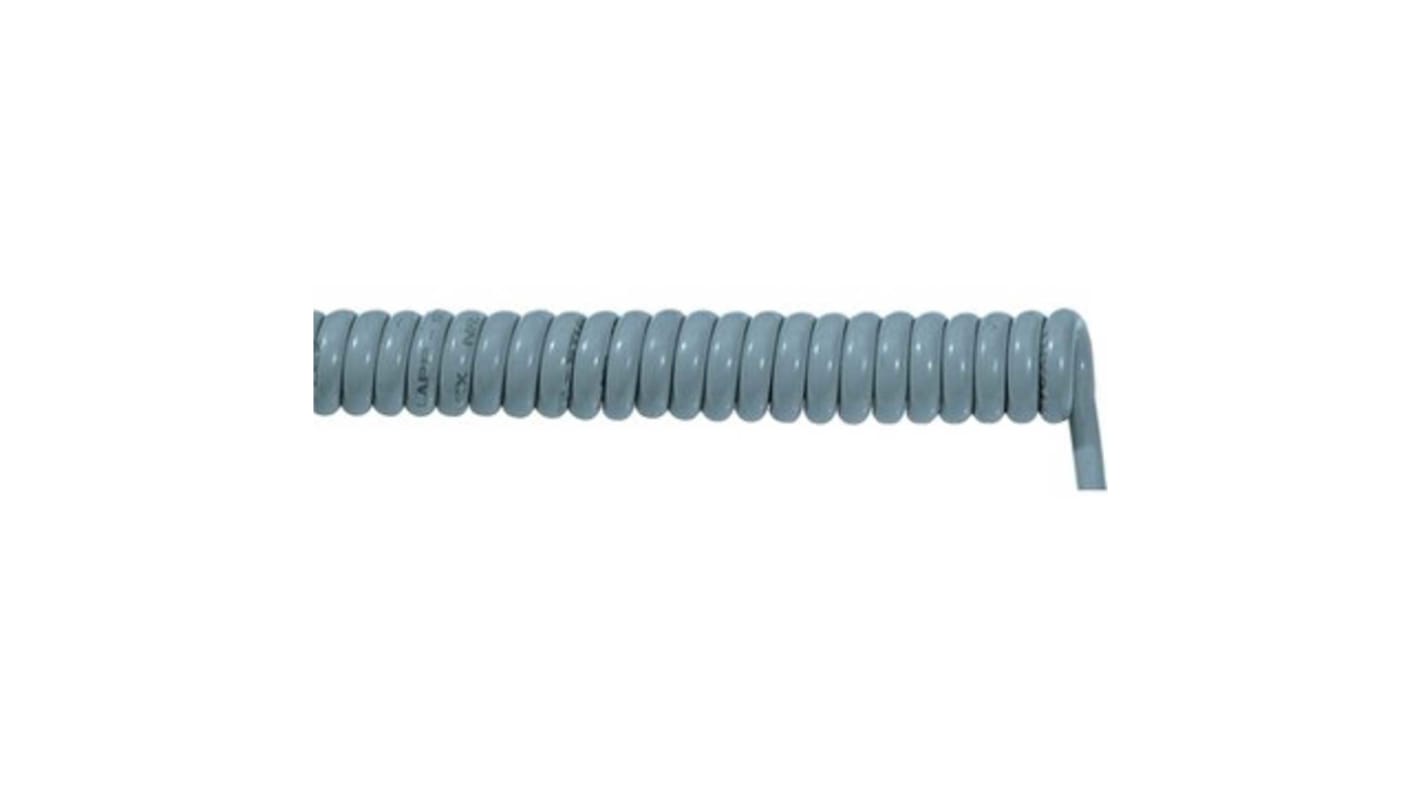

Lapp ÖLFLEX Coiled 1.5 mm² 5 Core Power Cable, Grey Polyurethane PUR, 1m

RS Stock No.:: 451-6795
Distrelec Article No.:: 304-01-055
Mfr. Part No.:: 70002700
Brand:: Lapp

Lapp ÖLFLEX Coiled 1.5 mm² 5 Core Power Cable, Grey Polyurethane PUR, 1m

Subtotal (1 unit)*

$168.13

(exc. GST)

$184.94

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

Plus 21 unit(s) shipping from 19 January 2026
Plus 12 unit(s) shipping from 17 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$168.13

*price indicative

RS Stock No.:: 451-6795
Distrelec Article No.:: 304-01-055
Mfr. Part No.:: 70002700
Brand:: Lapp

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Cross Sectional Area	1.5 mm²
	Number of Cores	5
	Sheath Colour	Grey
	Length	1m
	Cable Type	Coiled
	Sheath Material	Polyurethane PUR
	Outer Diameter	8.1mm
	Voltage Rating	500 V
	Cable Shape	Coiled Multicore
	Insulation Material	PVC
	Minimum Operating Temperature	-5°C
	Number of Strands	30
	Core Strands	30/30 mm
	Series	ÖLFLEX
	Standards Met	CE
	Uncoiled Length	2500 mm
	Maximum Operating Temperature	+50°C
	American Wire Gauge	15 AWG
	Conductor Material	Bare Copper
	Coil Diameter	1000mm
	Size of Strands	30 AWG

	Select all
	Brand Lapp
	Cross Sectional Area 1.5 mm²
	Number of Cores 5
	Sheath Colour Grey
	Length 1m
	Cable Type Coiled
	Sheath Material Polyurethane PUR
	Outer Diameter 8.1mm
	Voltage Rating 500 V
	Cable Shape Coiled Multicore
	Insulation Material PVC
	Minimum Operating Temperature -5°C
	Number of Strands 30
	Core Strands 30/30 mm
	Series ÖLFLEX
	Standards Met CE
	Uncoiled Length 2500 mm
	Maximum Operating Temperature +50°C
	American Wire Gauge 15 AWG
	Conductor Material Bare Copper
	Coil Diameter 1000mm
	Size of Strands 30 AWG

COO (Country of Origin):: DE

LAPP 5-Core Coiled Power Cable, 15AWG, 1m Length - ÖLFLEX SPIRAL 400 P Series - 70002700

Looking for a compact power supply option for your equipment and appliances? Choose this flexible cable from LAPP. Its space-efficient coiled structure helps reduce clutter in your workplace and makes it a practical choice for use with moving machinery. Thanks to a polyurethane (PUR) outer sheath that provides impact and abrasion resistance, this cable is suitable for use in harsh environments. For enhanced safety, its conductors have polyvinyl chloride (PVC) insulators to protect you from electric shocks.

Features & Benefits

• 5-core construction compatible with power and data transmission for versatility

• Broad operating temperature of +5°C to +50°C for use in demanding environments

• Voltage rating of 500V for use in low-voltage applications

• Compact outer cable diameter of 8.1mm for space efficiency in small enclosures

Applications

• Automated manufacturing systems

• Industrial power management

• Mechanical engineering

What safety precautions should I take while using this cable?

When using this cable, its important that you don't overstretch it as it can spring back if it isn't handled properly. This recoil could cause damage to equipment or anyone in the way.
