Lapp ÖLFLEX Coiled 1.5 mm² 5 Core Power Cable, Grey Polyurethane PUR, 0.5m

RS Stock No.:: 451-6789
Mfr. Part No.:: 70002699
Brand:: Lapp

Lapp ÖLFLEX Coiled 1.5 mm² 5 Core Power Cable, Grey Polyurethane PUR, 0.5m

Subtotal (1 unit)*

$89.25

(exc. GST)

$98.18

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

7 unit(s) ready to ship from another location
Plus 8 unit(s) shipping from 24 February 2026
Plus 8 unit(s) shipping from 24 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$89.25

*price indicative

RS Stock No.:: 451-6789
Mfr. Part No.:: 70002699
Brand:: Lapp

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Cross Sectional Area	1.5 mm²
	Number of Cores	5
	Sheath Colour	Grey
	Length	0.5m
	Cable Type	Coiled
	Sheath Material	Polyurethane PUR
	Outer Diameter	8.1mm
	Voltage Rating	500 V
	Coil Diameter	500mm
	Conductor Material	Bare Copper
	Size of Strands	30 AWG
	Series	ÖLFLEX
	Core Strands	30/30 mm
	Maximum Operating Temperature	+50°C
	Insulation Material	PVC
	American Wire Gauge	15 AWG
	Cable Shape	Coiled Multicore
	Minimum Operating Temperature	-5°C
	Number of Strands	30
	Uncoiled Length	1250 mm
	Standards Met	CE

	Select all
	Brand Lapp
	Cross Sectional Area 1.5 mm²
	Number of Cores 5
	Sheath Colour Grey
	Length 0.5m
	Cable Type Coiled
	Sheath Material Polyurethane PUR
	Outer Diameter 8.1mm
	Voltage Rating 500 V
	Coil Diameter 500mm
	Conductor Material Bare Copper
	Size of Strands 30 AWG
	Series ÖLFLEX
	Core Strands 30/30 mm
	Maximum Operating Temperature +50°C
	Insulation Material PVC
	American Wire Gauge 15 AWG
	Cable Shape Coiled Multicore
	Minimum Operating Temperature -5°C
	Number of Strands 30
	Uncoiled Length 1250 mm
	Standards Met CE

COO (Country of Origin):: DE

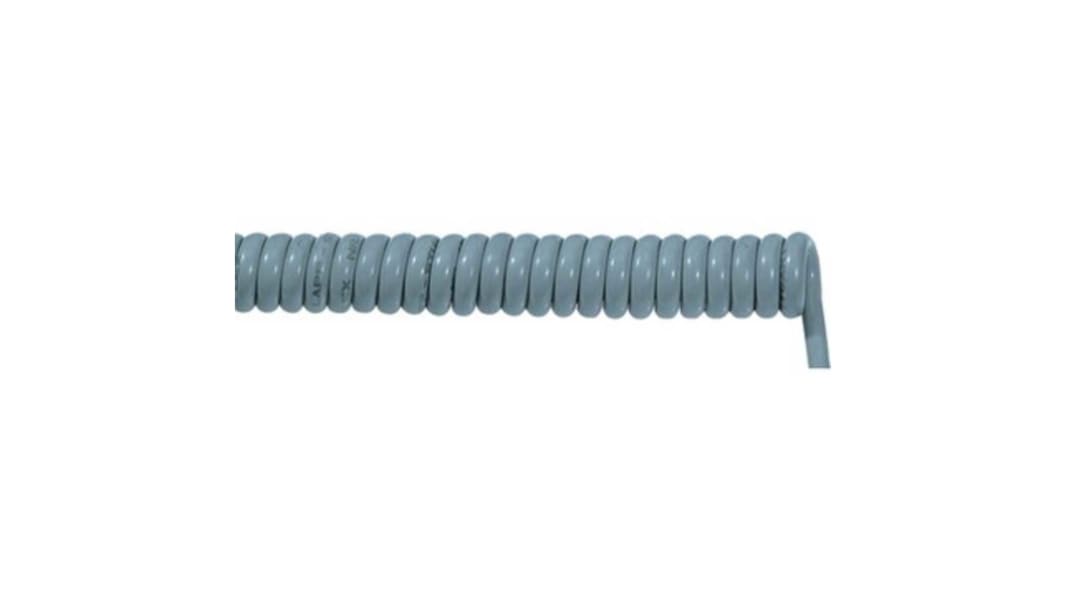

LAPP Grey Coiled Power Cable, 1.25m Uncoiled Length, 5 Cores - ÖLFLEX Series - 70002699

For a reliable electrical power supply to your industrial equipment, choose this coiled cable from LAPP. Thanks to its tightly coiled construction, it can stretch up to three times its fixed length so is suitable for use in portable applications. Its bare copper conductors are resistant to corrosion and it has a broad operating temperature range between +5°C and +50°C, so it's a durable choice that can withstand demanding industrial conditions. For added reliability, a robust PVC material offers insulation to stop the cable from overheating and to protect you from electric shocks.

Features & Benefits

• Versatile option with 5 cores to carry multiple power and data signal feeds at the same time

• Uncoiled length of 1250mm for close-range connection

• PUR (polyurethane) sheath is resistant to wear and chemicals for lasting use

• UV resistance prevents damage from direct contact with sunlight

• Unterminated, colour-coded ends for quick installation

Applications

• Networking devices

• Robotics

• Audiovisual devices

• Industrial automation systems

Can I use this power cable in humid environments?

Yes, you can. The cable is resistant to microbes and hydrolysis, so it's safe to use in humid environments without loss of performance.
