Wurth Elektronik 220 μF Surface Polymer Capacitor, 35 V dc
- RS Stock No.:
- 257-0063
- Mfr. Part No.:
- 875075661008
- Brand:
- Wurth Elektronik

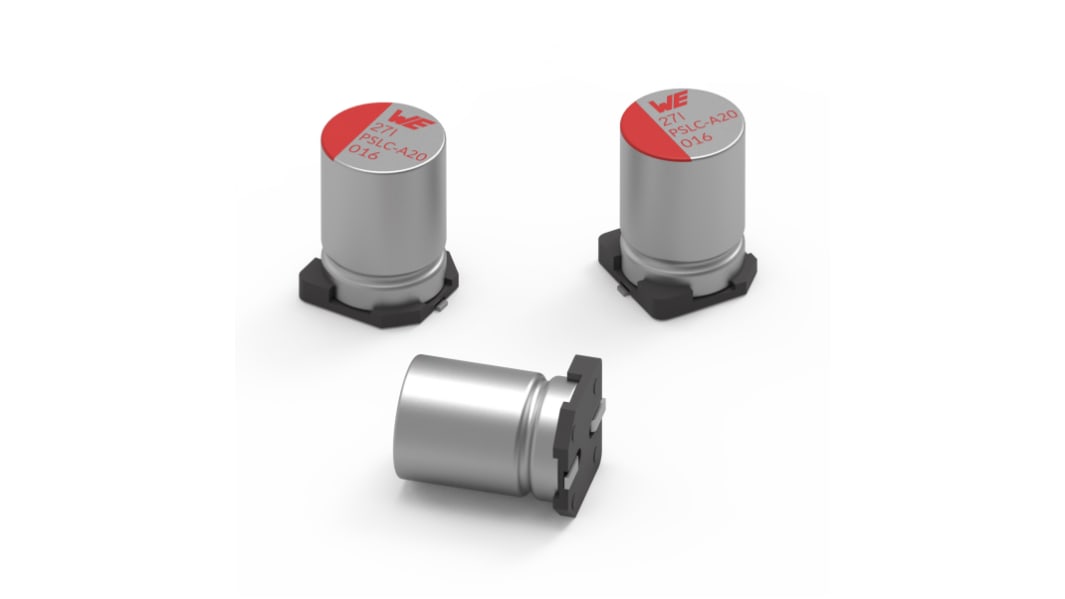

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
$11.23
(exc. GST)
$12.35
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 275 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | $11.23 |
| 50 - 99 | $10.29 |
| 100 - 199 | $8.61 |
| 200 + | $7.04 |
*price indicative
- RS Stock No.:
- 257-0063
- Mfr. Part No.:
- 875075661008
- Brand:
- Wurth Elektronik
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Polymer Capacitor | |
| Technology | Conductive Polymer Aluminium Solid | |
| Capacitance | 220μF | |
| Voltage | 35 V dc | |
| Mount Type | Surface | |
| Package/Case | Plastic | |
| Tolerance | ±20 % | |
| Maximum Operating Temperature | 105°C | |
| Series | WCAP-PSLC | |
| Length | 12.4mm | |
| Dissipation Factor | 12% | |
| Automotive Standard | No | |
| Lifetime | 2000 h | |
| Minimum Operating Temperature | -55°C | |
| Ripple Current | 4100mA | |
| Leakage Current | 1540μA | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Polymer Capacitor | ||
Technology Conductive Polymer Aluminium Solid | ||
Capacitance 220μF | ||
Voltage 35 V dc | ||
Mount Type Surface | ||
Package/Case Plastic | ||
Tolerance ±20 % | ||
Maximum Operating Temperature 105°C | ||
Series WCAP-PSLC | ||
Length 12.4mm | ||
Dissipation Factor 12% | ||
Automotive Standard No | ||
Lifetime 2000 h | ||
Minimum Operating Temperature -55°C | ||
Ripple Current 4100mA | ||
Leakage Current 1540μA | ||
The Wurth Elektronik aluminium polymer capacitors with ultra high permissible ripple current and low ESR over high frequency range. It consist of an operating temperature of 55°C to +105°C. It is used for low ripple voltage at the switching.
Capacitance value is 220 μF
Voltage rating is 35 V
Endurance rating is 2000 h
Used in high-end power supply, industrial computer, charger, digital set-top box
