NSK-RHP SNP40 Pillow Block Bearing -, 40 mm ID
- RS Stock No.:
- 785-4841
- Mfr. Part No.:
- SNP40
- Brand:
- NSK-RHP

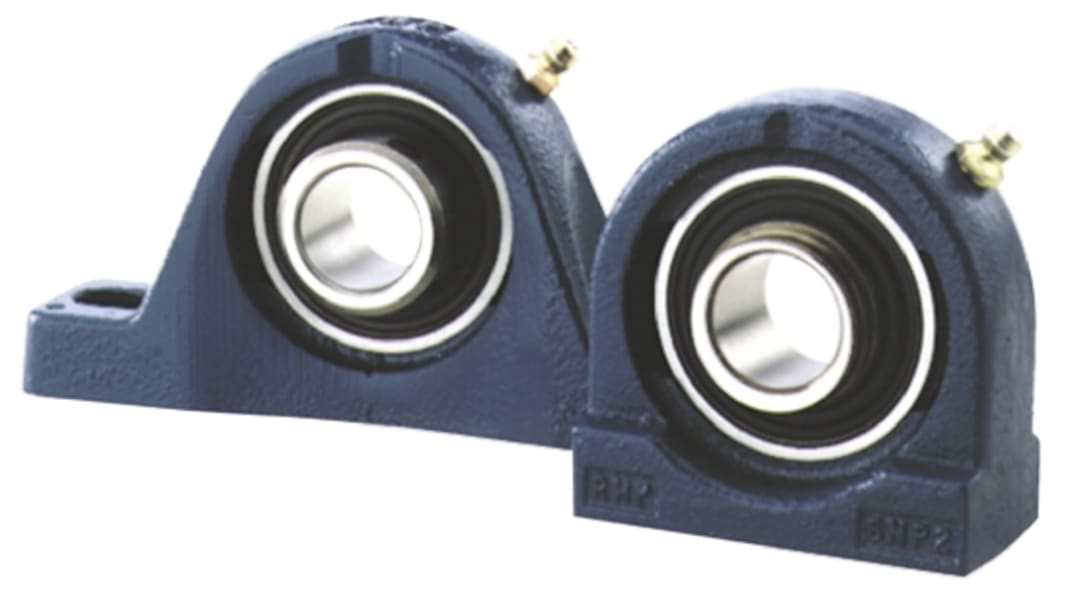

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$159.38
(exc. GST)
$175.32
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | $159.38 |
| 5 - 9 | $157.20 |
| 10 + | $154.54 |
*price indicative
- RS Stock No.:
- 785-4841
- Mfr. Part No.:
- SNP40
- Brand:
- NSK-RHP
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK-RHP | |
| Inside Diameter | 40mm | |
| Product Type | Pillow Block Bearing | |
| Material | Nitrile Rubber (Seal), Synthetic Rubber, Pressed Steel, Mild Steel, Cast Iron | |
| Static Load Rating | 122000N | |
| Centre Height | 49.2mm | |
| Mount Hole Size | 12 mm | |
| Length | 119mm | |
| Depth | 47mm | |
| Dynamic Load Rating | 157000N | |
| Mount Hole Centre-to-Centre | 85.5mm | |
| Height | 101.6mm | |
| Bore Type | Taper | |
| Standards/Approvals | ISO | |
| Limiting Speed | 7000rpm | |
| Select all | ||
|---|---|---|
Brand NSK-RHP | ||
Inside Diameter 40mm | ||
Product Type Pillow Block Bearing | ||
Material Nitrile Rubber (Seal), Synthetic Rubber, Pressed Steel, Mild Steel, Cast Iron | ||
Static Load Rating 122000N | ||
Centre Height 49.2mm | ||
Mount Hole Size 12 mm | ||
Length 119mm | ||
Depth 47mm | ||
Dynamic Load Rating 157000N | ||
Mount Hole Centre-to-Centre 85.5mm | ||
Height 101.6mm | ||
Bore Type Taper | ||
Standards/Approvals ISO | ||
Limiting Speed 7000rpm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
Short Base Pillow Block
Cast iron self lubricated short base pillow block bearings from NSK. These pillow block bearings are easy to fit and long lasting. Designed to accommodate an initial housing misalignment of up to 0.030 radians.
Ideal for mounting in confined spaces
