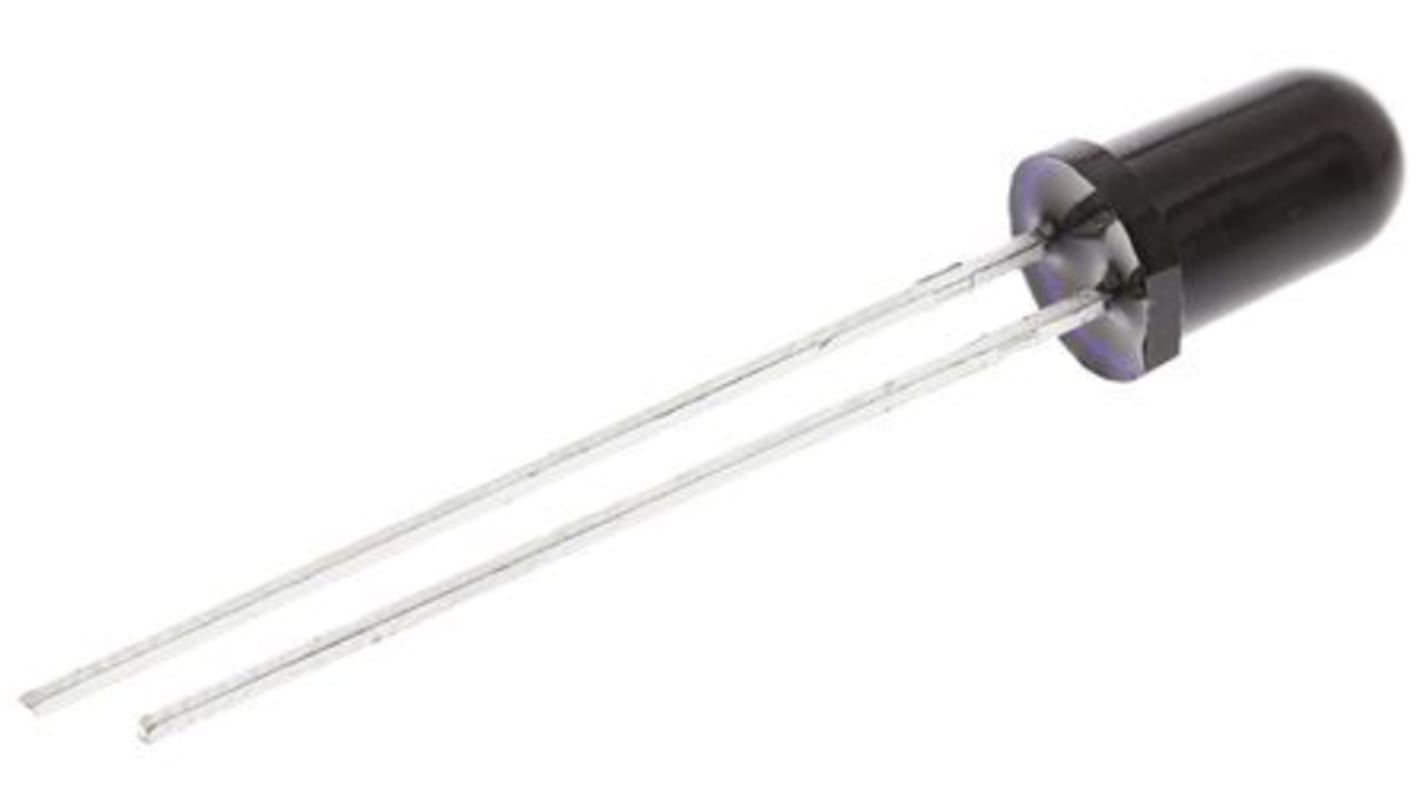

ams OSRAM, SFH 213 FA IR Si Photodiode, Through Hole 5mm package
- RS Stock No.:
- 912-8564
- Mfr. Part No.:
- SFH 213 FA
- Brand:
- ams OSRAM
Bulk discount available
Subtotal (1 bag of 1000 units)*
$446.00
(exc. GST)
$491.00
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 12,000 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 1000 - 1000 | $0.446 | $446.00 |
| 2000 - 3000 | $0.445 | $445.00 |
| 4000 + | $0.428 | $428.00 |
*price indicative
- RS Stock No.:
- 912-8564
- Mfr. Part No.:
- SFH 213 FA
- Brand:
- ams OSRAM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Spectrums Detected | Infrared | |
| Wavelength of Peak Sensitivity | 900nm | |
| Package Type | T-1 3/4 | |
| Amplifier Function | No | |
| Mounting Type | Through Hole | |
| Number of Pins | 2 | |
| Diode Material | Si | |
| Minimum Wavelength Detected | 750nm | |
| Maximum Wavelength Detected | 1100nm | |
| Typical Fall Time | 0.005µs | |
| Length | 5.9mm | |
| Width | 5mm | |
| Height | 9mm | |
| Peak Photo Sensitivity | 0.65A/W | |
| Series | SFH | |
| Typical Rise Time | 0.005µs | |
| Polarity | Forward | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Spectrums Detected Infrared | ||
Wavelength of Peak Sensitivity 900nm | ||
Package Type T-1 3/4 | ||
Amplifier Function No | ||
Mounting Type Through Hole | ||
Number of Pins 2 | ||
Diode Material Si | ||
Minimum Wavelength Detected 750nm | ||
Maximum Wavelength Detected 1100nm | ||
Typical Fall Time 0.005µs | ||
Length 5.9mm | ||
Width 5mm | ||
Height 9mm | ||
Peak Photo Sensitivity 0.65A/W | ||
Series SFH | ||
Typical Rise Time 0.005µs | ||
Polarity Forward | ||
PIN Photodiode - T-1 3/4 (5mm) Package
This family of PIN photodiodes, from OSRAM Opto Semiconductors, are in standard T-1 3/4 (5mm) through-hole packages. They have a 1 x 1 mm² radiant sensitive area. The T-1 3/4 package photodiodes offer a short switching time. Suitable applications include high speed photointerrupters, industrial electronics and control and drive circuits.
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
IR Photodiodes, OSRAM Opto Semiconductors
