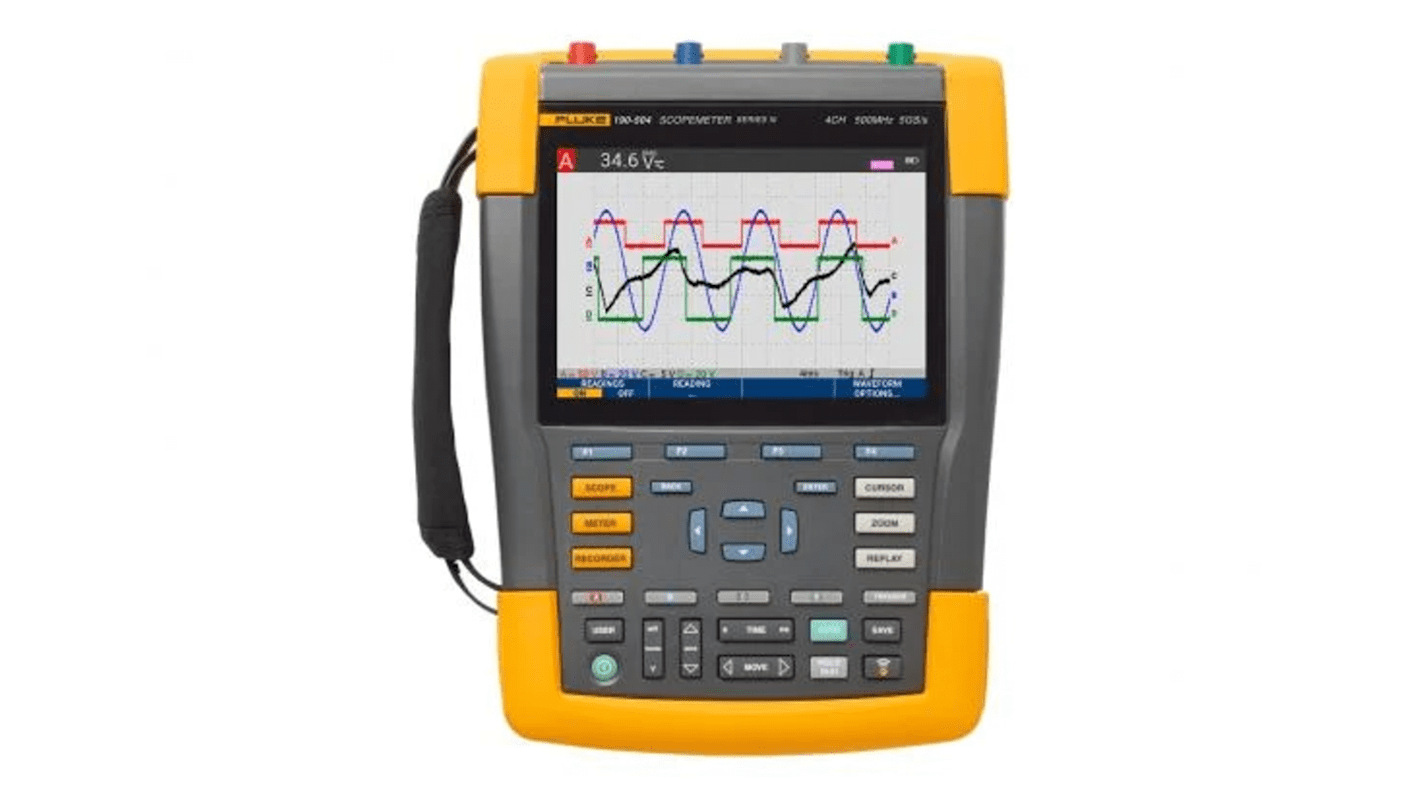

Fluke ScopeMeter III Series, 500 MHz Portable Oscilloscope, 4 Channels
- RS Stock No.:
- 230-5658
- Distrelec Article No.:
- 302-30-616
- Mfr. Part No.:
- FLUKE-190-504-III-S
- Brand:
- Fluke
Subtotal (1 unit)*
$13,476.00
(exc. GST)
$14,823.60
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Stocked by manufacturer
- Ready to ship from 19 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $13,476.00 |
*price indicative
- RS Stock No.:
- 230-5658
- Distrelec Article No.:
- 302-30-616
- Mfr. Part No.:
- FLUKE-190-504-III-S
- Brand:
- Fluke
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Product Type | Oscilloscope | |
| Bandwidth | 500MHz | |
| Number of Channels | 4 | |
| Oscilloscope Type | Portable | |
| Oscilloscope Form | Digital Storage | |
| Memory Depth | 30kpts | |
| Interface Type | USB | |
| Sample Rate Random | 5G samples/s | |
| Screen Size | 6.4 in | |
| Series | ScopeMeter III | |
| Standards/Approvals | No | |
| Width | 70mm | |
| Depth | 192mm | |
| Height | 265mm | |
| Maximum Time Base | 4s/div | |
| Battery Type | Lithium-ion | |
| Plug Type | USB | |
| Maximum Vertical Sensitivity | 10000V/div | |
| Rise Time | 0.7ns | |
| Minimum Vertical Sensitivity | 2mV/div | |
| Minimum Time Base | 1ns/div | |
| Vertical Resolution | 8 bit | |
| Safety Category Level | CAT III, CAT IV | |
| Safety Category Voltage | 1000V | |
| Power Source | Battery | |
| Display Type | LCD | |
| Battery Life | 7h | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Product Type Oscilloscope | ||
Bandwidth 500MHz | ||
Number of Channels 4 | ||
Oscilloscope Type Portable | ||
Oscilloscope Form Digital Storage | ||
Memory Depth 30kpts | ||
Interface Type USB | ||
Sample Rate Random 5G samples/s | ||
Screen Size 6.4 in | ||
Series ScopeMeter III | ||
Standards/Approvals No | ||
Width 70mm | ||
Depth 192mm | ||
Height 265mm | ||
Maximum Time Base 4s/div | ||
Battery Type Lithium-ion | ||
Plug Type USB | ||
Maximum Vertical Sensitivity 10000V/div | ||
Rise Time 0.7ns | ||
Minimum Vertical Sensitivity 2mV/div | ||
Minimum Time Base 1ns/div | ||
Vertical Resolution 8 bit | ||
Safety Category Level CAT III, CAT IV | ||
Safety Category Voltage 1000V | ||
Power Source Battery | ||
Display Type LCD | ||
Battery Life 7h | ||
- COO (Country of Origin):
- RO
Fluke ScopeMeter III Series Oscilloscope, 500 MHz Bandwidth, 4 Analogue Channels - FLUKE-190-504-III-S
This oscilloscope is a robust portable digital device designed to cater to various applications within the fields of automation, electronics, and electrical engineering. With a bandwidth of 500MHz and four analogue channels, it is engineered for efficiency and precision. The Compact dimensions of 265 x 192 x 70 mm and a lightweight design of 2.2kg make it an Ideal choice for on-the-go measurements. This device features a vivid LCD display for clarity and ease of use, and it operates seamlessly on a rechargeable battery.
Features & Benefits
• Four channels provide comprehensive multi-signal testing
• USB Interface allows for easy data transfer and connectivity
• Battery-powered design enhances portability for field use
• Minimum vertical sensitivity of 20mV supports small signal measurements
• USB Interface allows for easy data transfer and connectivity
• Battery-powered design enhances portability for field use
• Minimum vertical sensitivity of 20mV supports small signal measurements
Applications
• Ideal for troubleshooting electrical circuits during maintenance
• Use for displaying fast digital signals in control systems
• Suitable for inspections in high voltage environments
• Designed for data acquisition in mechanical systems
• Utilised in automotive electronic testing and diagnostics
• Use for displaying fast digital signals in control systems
• Suitable for inspections in high voltage environments
• Designed for data acquisition in mechanical systems
• Utilised in automotive electronic testing and diagnostics
What advantages does the oscilloscope's high bandwidth provide for users?
A bandwidth of 500MHz allows the device to analyse fast-changing signals, making it essential for applications that require accurate representation of high-frequency waveforms. This enhances troubleshooting and ensures reliability in measurements.
How does the sample rate impact the performance of measurements?
The oscilloscope's sample rate of 1.25 Gsps ensures that even the most Rapid signal changes are captured, enabling users to visualise transients and other quick phenomena accurately without distortion.
Can this oscilloscope handle safety category electrical testing?
Yes, it is suitable for CAT III 1000 V and CAT IV 600 V environments, making it an excellent choice for professionals working in potentially hazardous electrical scenarios, while ensuring compliance with safety standards.
What specific benefits does the USB Interface offer?
The USB Interface simplifies data transfer and connectivity to computers, facilitating easier analysis and documentation of results, which is Crucial for efficient workflow in lab or field settings.
