NJM8080G-TE2 Nisshinbo Micro Devices, Operational Amplifier, 15 MHz, 8-Pin 18V SOP-8
- RS Stock No.:
- 244-9808
- Mfr. Part No.:
- NJM8080G-TE2
- Brand:
- Nisshinbo Micro Devices

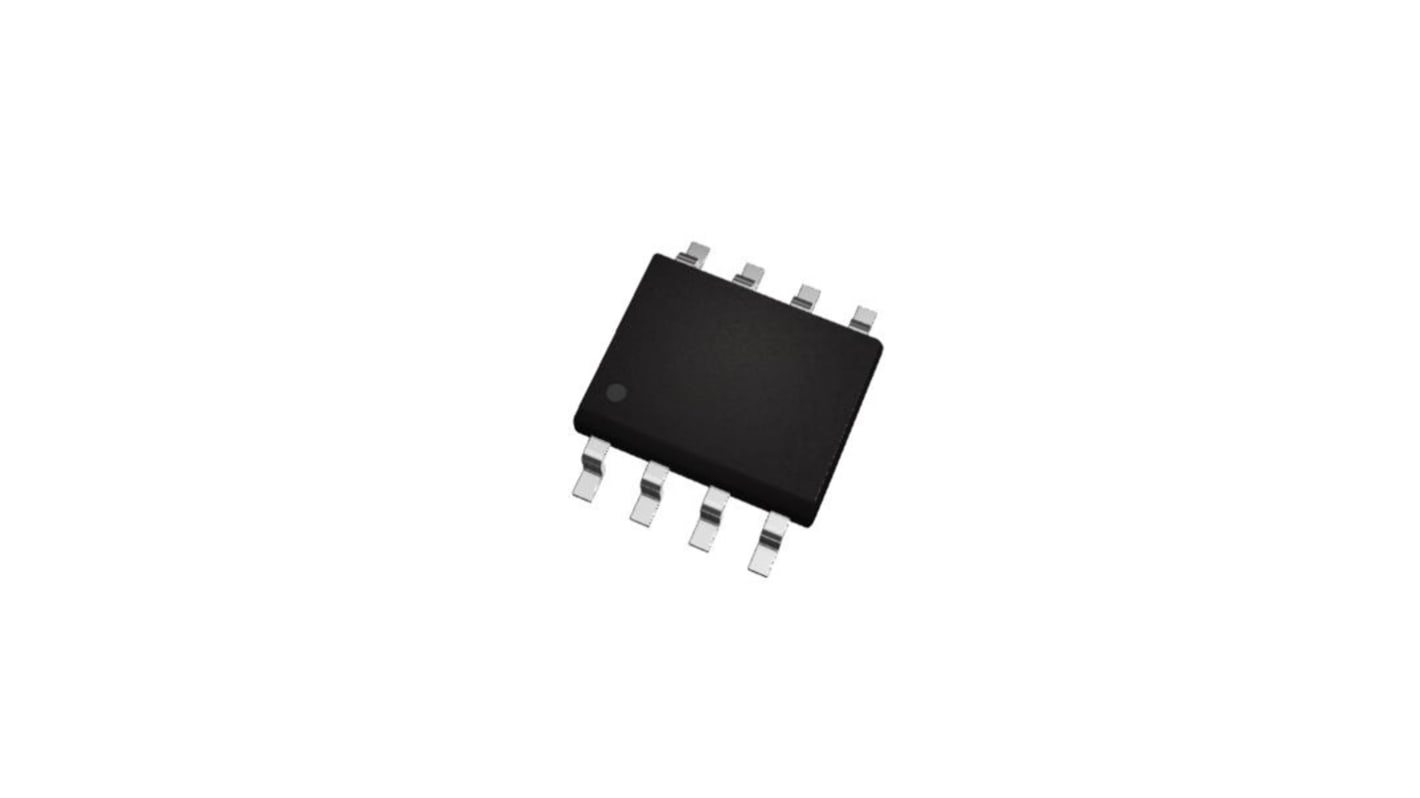

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
$9.50
(exc. GST)
$10.40
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- 100 unit(s) ready to ship from another location
- Plus 1,310 unit(s) shipping from 22 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 10 | $0.95 | $9.50 |
| 20 - 90 | $0.928 | $9.28 |
| 100 - 240 | $0.909 | $9.09 |
| 250 - 490 | $0.891 | $8.91 |
| 500 + | $0.872 | $8.72 |
*price indicative
- RS Stock No.:
- 244-9808
- Mfr. Part No.:
- NJM8080G-TE2
- Brand:
- Nisshinbo Micro Devices
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nisshinbo Micro Devices | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SOP-8 | |
| Number of Channels | 2 | |
| Pin Count | 8 | |
| GBP - Gain Bandwidth Product | 15MHz | |
| Maximum Supply Voltage | 18V | |
| Minimum Supply Voltage | 4V | |
| Minimum Operating Temperature | -40°C | |
| Input Bias Current | 100 to 500 nA | |
| Slew Rate | 5V/μs | |
| Vos - Input Offset Voltage | 0.3 mV | |
| Maximum Operating Temperature | 125°C | |
| Series | NJM8080 | |
| Standards/Approvals | JEDEC MO-187-DA | |
| Automotive Standard | No | |
| Input Offset Current | 5 to 200 nA | |
| Select all | ||
|---|---|---|
Brand Nisshinbo Micro Devices | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SOP-8 | ||
Number of Channels 2 | ||
Pin Count 8 | ||
GBP - Gain Bandwidth Product 15MHz | ||
Maximum Supply Voltage 18V | ||
Minimum Supply Voltage 4V | ||
Minimum Operating Temperature -40°C | ||
Input Bias Current 100 to 500 nA | ||
Slew Rate 5V/μs | ||
Vos - Input Offset Voltage 0.3 mV | ||
Maximum Operating Temperature 125°C | ||
Series NJM8080 | ||
Standards/Approvals JEDEC MO-187-DA | ||
Automotive Standard No | ||
Input Offset Current 5 to 200 nA | ||
The New Japan Radio NJM8080 series is of dual operational amplifier designed for audio applications. It finely refines to every detail from Si wafer to circuit layout, stick in a thorough improvement in sound quality. It features high resolution and crispy clear high frequency sound, which can fully perform the digital sound source with loss less. It can widely be used as the standard audio operational amplifier
Low Input Noise Voltage
Wide Gain Bandwidth Product of 15 MHz
Low Distortion
Slew Rate of 5V/μs
Bipolar Technology
Internal ESD Protection
