The 501 Series is a 100% Lead-free and Halogen-free fuse series designed specifically to provide over-current protection to circuits that operate under high working ambient temperatures up to 150ºC.The general design ensures excellent temperature stability and performance reliability. The high I2t values which is typical in the Littelfuse Ceramic Fuse family, ensure high inrush current withstand capability.

Features:
Operating Temperature from -55°C to +150°C
Designed to provide over-current protection in high current voltage regulator module (VRM) applications
100% Lead-free and Halogen-free
Suitable for both leaded and lead-free reflow / wave soldering
Applications:
Voltage Regulator Module (VRM) Equipment
Notebook PC
DC-DC Convertor

Units	Per unit	Per Pack**
10 - 740	$0.988	$9.88
750 - 1490	$0.964	$9.64
1500 +	$0.949	$9.49

Select all	Attribute	Value
	Brand	Wickmann
	Current Rating	10A
	Voltage Rating	32V
	Fuse Speed	F
	Body Material	Ceramic
	Body Length	3.2mm
	Body Width	1.63mm
	Body Height	0.83mm
	Breaking Capacity at Maximum Voltage Rating	150 A @ 32 V dc
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	+150°C
	Series	501
	Resistance	0.003Ω
	Dimensions	3.2 x 1.63 x 0.83mm

	Select all
	Brand Wickmann
	Current Rating 10A
	Voltage Rating 32V
	Fuse Speed F
	Body Material Ceramic
	Body Length 3.2mm
	Body Width 1.63mm
	Body Height 0.83mm
	Breaking Capacity at Maximum Voltage Rating 150 A @ 32 V dc
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature +150°C
	Series 501
	Resistance 0.003Ω
	Dimensions 3.2 x 1.63 x 0.83mm

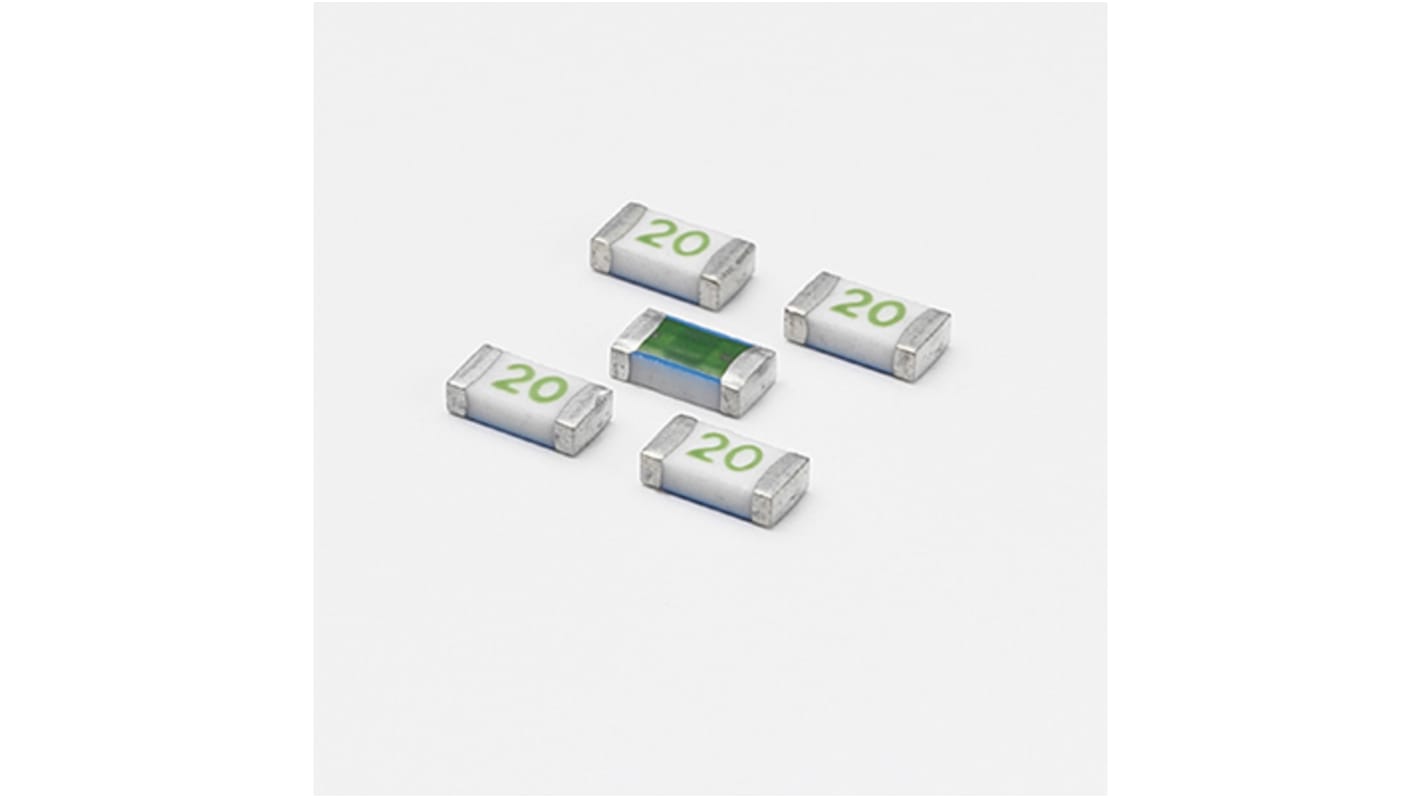

Wickmann SMD Non Resettable Fuse 10A, 32V
