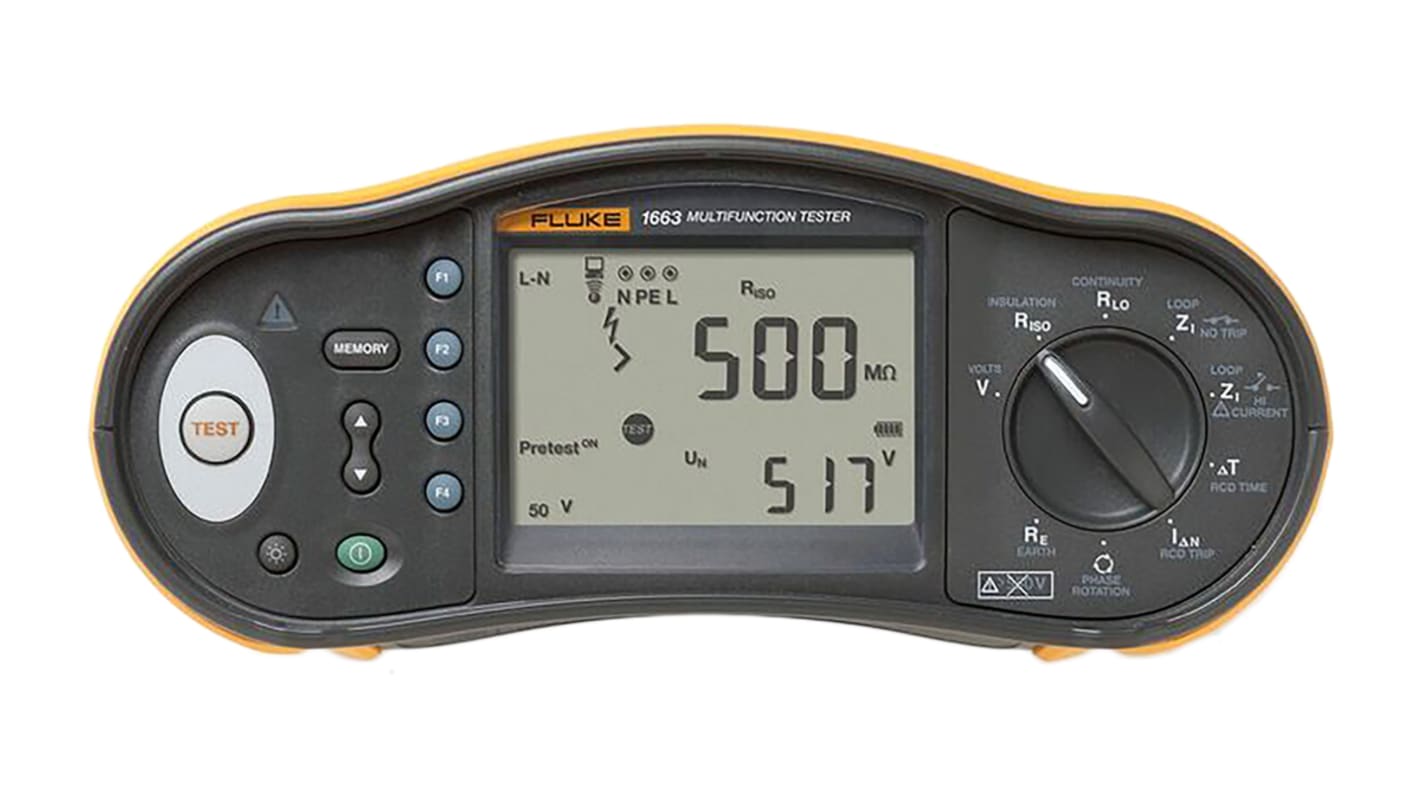

Fluke 1663 Multifunction Tester, 50 V, 100 V, 250 V, 500 V, 1000 V , Earth Resistance Measurement With USB
- RS Stock No.:
- 122-8556
- Mfr. Part No.:
- FLK-1663/FVF AU
- Manufacturer:
- Fluke
View all Multifunction Testers
2 In stock for delivery within 1 working day(s)
Price (ex. GST) Each
$3,227.00
(exc. GST)
$3,549.70
(inc. GST)
| units | Per unit |
| 1 + | $3,227.00 |
- RS Stock No.:
- 122-8556
- Mfr. Part No.:
- FLK-1663/FVF AU
- Manufacturer:
- Fluke
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details
Fluke Multifunction Installation Testers
The Fluke 1660 series multifunction installation tester with an insulation test voltage of 50V, 100V, 250V, 500V, 1000V. It ensures safe and correct installation of fixed wiring to meet the necessary requirements. It delivers full-featured functionality and advanced measurement capabilities that professional installers need. Its operation is intuitive and easily mastered by all levels of field workers. Fluke Connect allows you to send test results directly to your smartphone that can be transmitted to other members of the team. In addition to that, the data can be saved to Fluke Cloud™ storage, reducing the amount of paperwork and possible errors. It is a secure and accurate way to store test data and create test certificates with Fluke DMS. The autotest feature reduces test time as it performs five required installation tests in one sequence, including selectable Type A, AC, and RCD autotest. It reduces the number of manual connections, decreases the possibility of making errors, and reduces test time up to 40% from previous Fluke models.
Features and Benefits
Full-featured tester for installation professionals
Tests to all local regulations and provides test results for complete documentation
Tests continuity at L-N, N-PE inputs
Tests smooth dc sensitive RCDs (Type B)
Tests earth resistance, voltage, and frequency
Tests to all local regulations and provides test results for complete documentation
Tests continuity at L-N, N-PE inputs
Tests smooth dc sensitive RCDs (Type B)
Tests earth resistance, voltage, and frequency
Applications
Domestic
Industrial
Commercial
Industrial
Commercial
Certifications
CSA certified
CE certified
IP40 rated
EC/EN61557-1
IEC60364
IEC/EN61557-7
CE certified
IP40 rated
EC/EN61557-1
IEC60364
IEC/EN61557-7
Specifications
| Attribute | Value |
| Loop Impedance Test Type | Phase to Earth, Phase to Neutral |
| Automatic RCD Test | Yes |
| RCD Ramp Test | Yes |
| Non-Tripping | Yes |
| Insulation Test Voltage | 50 V, 100 V, 250 V, 500 V, 1000 V |
| Maximum Voltage Measurement | 500V ac/dc |
| Test Type | Automatic RCD Test Sequence, Continuity, Continuity at L-N/N-PE Inputs, Earth Resistance, Frequency, Insulation Resistance, Loop & Line Resistance, Measure Motor Windings with Continuity Test, Measures Trip Time & Current for RCD Type A & AC in One Test, Phase Sequence Test, Prospective Earth Fault Current, Prospective Short-Circuit Current, RCD Trip Current, RCD Trip Time, RCD Variable Current, Resistance, Test Smooth DC Sensitive RCDs, Voltage, Wiring Polarity Checker |
| Earth Resistance Measurement | Yes |
| Downloadable Data | Yes |
| Interface Type | USB |
| Continuity Test Current | 10mA |
| RCD Test Type | A/F, AC, B/B+, G, S |
| Remote Switch Mode | Yes |
| IP Rating | IP40 |
| Height | 125mm |
| Model Number p | 1663 |
| Plug Type | Australia, New Zealand |
| Maximum Continuity Resistance | 2000Ω |
| Safety Category Voltage | 300 V, 500 V |
| Battery Type | AA |
| Safety Category | CAT III 500 V, CAT IV 300 V |
| Display Type | LCD |
| Power Source | Battery |
| Dimensions | 100 x 250 x 125mm |
| Minimum Continuity Resistance | 20Ω |
| Weight | 1.3 (with Battery)kg |
| Safety Category Level | CAT III, CAT IV |
| Width | 250mm |
| Length | 100mm |
