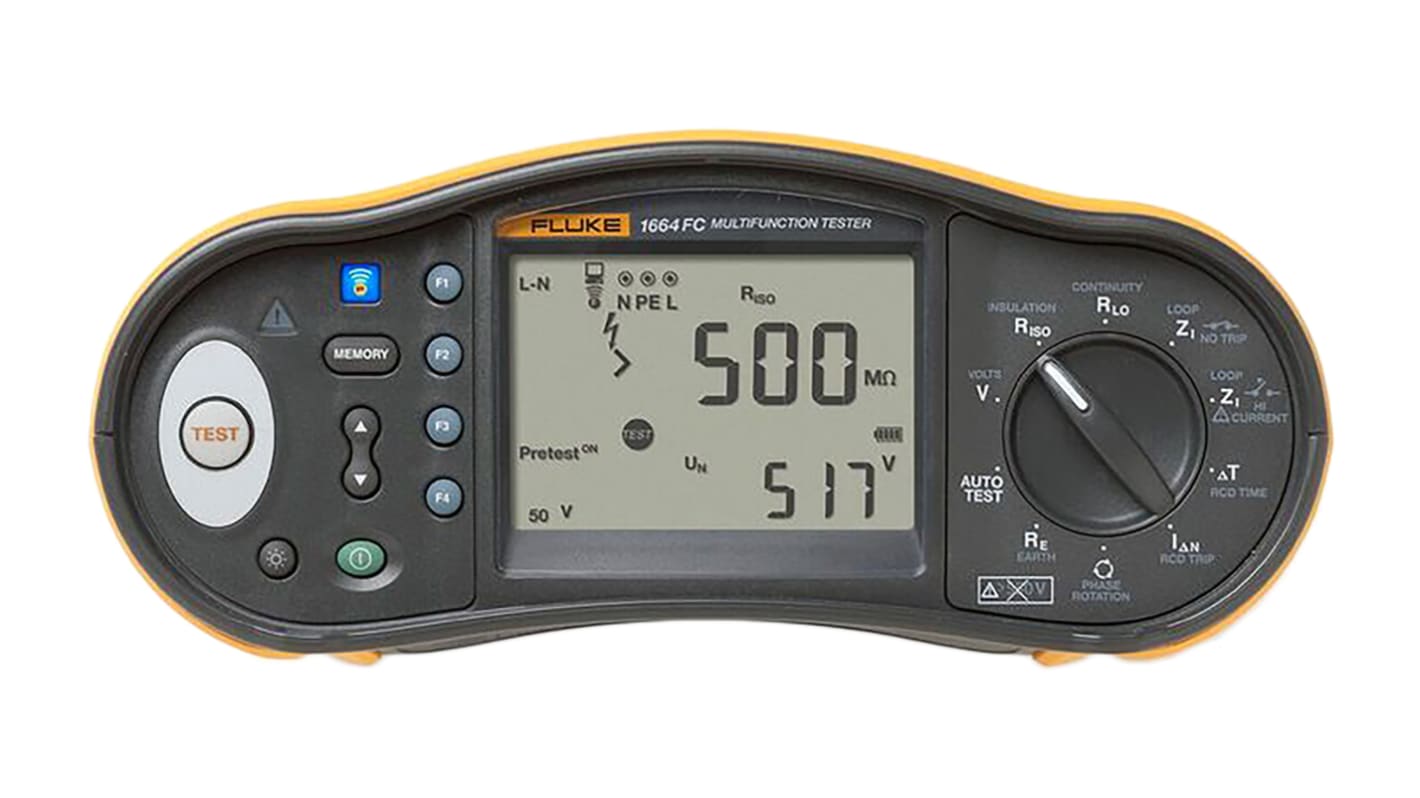

Fluke 1664FC Multifunction Tester, 50 V, 100 V, 250 V, 500 V, 1000 V , Earth Resistance Measurement With BLE, USB
- RS Stock No.:
- 122-8557
- Mfr. Part No.:
- FLK-1664FC/FVF AU
- Manufacturer:
- Fluke
View all Multifunction Testers
2 In stock for delivery within 1 working day(s)
Price (ex. GST) Each
$4,069.00
(exc. GST)
$4,475.90
(inc. GST)
| units | Per unit |
| 1 + | $4,069.00 |
- RS Stock No.:
- 122-8557
- Mfr. Part No.:
- FLK-1664FC/FVF AU
- Manufacturer:
- Fluke
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details
Fluke Multifunction Installation Testers
The Fluke 1660 series multifunction installation tester with an insulation test voltage of 50V, 100V, 250V, 500V, 1000V and with BLE and USB interface. It ensures the safe and correct installation of fixed wiring to meet the necessary requirements. It is the only tester that helps prevent damage to connected appliances. This tester contains the Insulation-Pre-Test™ safety function (patent pending) that prevents you from performing tests with appliances that are connected to the system during a test, eliminating accidental damage. Fluke Connect allows you to send test results directly to your smartphone that can be transmitted to other members of the team. In addition to that, the data can be saved to Fluke Cloud™ storage, reducing the amount of paperwork and possible errors. It is a secure and accurate way to store test data and create test certificates with Fluke DMS. The autotest feature reduces test time as it performs five required installation tests in one sequence, including selectable Type A, AC, and RCD autotest. It reduces the number of manual connections, decreases the possibility of making errors, and reduces test time up to 40% from previous Fluke models.
Supplied with 6 x AA (LR6) cell batteries, CI600 hard carrying case, zero adapters, heavy-duty mains cord, test lead set, padded carrying/waist strap, quick reference guide, TP165X remote control probe & lead set (FTP used probes - UK only) and User's manual on CD-ROM
Supplied with 6 x AA (LR6) cell batteries, CI600 hard carrying case, zero adapters, heavy-duty mains cord, test lead set, padded carrying/waist strap, quick reference guide, TP165X remote control probe & lead set (FTP used probes - UK only) and User's manual on CD-ROM
Features and Benefits
Includes "Insulation Pre-test" that detects when appliances are connected to the system and stops the test
Runs seven installation tests automatically in one sequence with a single connection through auto test
Retrieve stored results from anywhere
Share from anywhere
Performs fast voltage measurement between L-N, L-PE, and N-PE using the mains cord. No need to change measurement connections
Runs seven installation tests automatically in one sequence with a single connection through auto test
Retrieve stored results from anywhere
Share from anywhere
Performs fast voltage measurement between L-N, L-PE, and N-PE using the mains cord. No need to change measurement connections
Applications
Domestic
Industrial
Commercial
Industrial
Commercial
Certifications
CSA certified
CE certified
IP40 rated
EC/EN61557-1
IEC60364
IEC/EN61557-7
CE certified
IP40 rated
EC/EN61557-1
IEC60364
IEC/EN61557-7
Specifications
| Attribute | Value |
| Loop Impedance Test Type | Phase to Earth, Phase to Neutral |
| Automatic RCD Test | Yes |
| RCD Ramp Test | Yes |
| Non-Tripping | Yes |
| Insulation Test Voltage | 50 V, 100 V, 250 V, 500 V, 1000 V |
| Maximum Voltage Measurement | 500V ac/dc |
| Test Type | Automatic RCD Test Sequence, Continuity, Frequency, Insulation Resistance, Loop & Line Resistance, Measure Motor Windings with Continuity Test, Measures Trip Time & Current for RCD Type A & AC in One Test, Phase Sequence Test, Prospective Earth Fault Current, Prospective Short-Circuit Current, RCD Trip Current, RCD Trip Time, RCD Variable Current, Resistance, Voltage, Wiring Polarity Checker |
| Earth Resistance Measurement | Yes |
| Downloadable Data | Yes |
| Interface Type | BLE, USB |
| Continuity Test Current | 10mA |
| RCD Test Type | A/F, AC, B/B+, G, S |
| Remote Switch Mode | Yes |
| IP Rating | IP40 |
| Length | 100mm |
| Width | 250mm |
| Power Source | Battery |
| Model Number p | 1664FC |
| Height | 125mm |
| Minimum Continuity Resistance | 20Ω |
| Dimensions | 100 x 250 x 125mm |
| Display Type | LCD |
| Safety Category Voltage | 300 V, 500 V |
| Plug Type | Australia, New Zealand |
| Maximum Continuity Resistance | 2000Ω |
| Battery Type | AA |
| Weight | 1.3 (with Battery)kg |
| Safety Category Level | CAT III, CAT IV |
| Safety Category | CAT III 500 V, CAT IV 300 V |
