ROHM, Brushless Motor Driver IC 10-Pin, VSON
- RS Stock No.:
- 240-3972
- Mfr. Part No.:
- BD61248NUX-E2
- Brand:
- ROHM

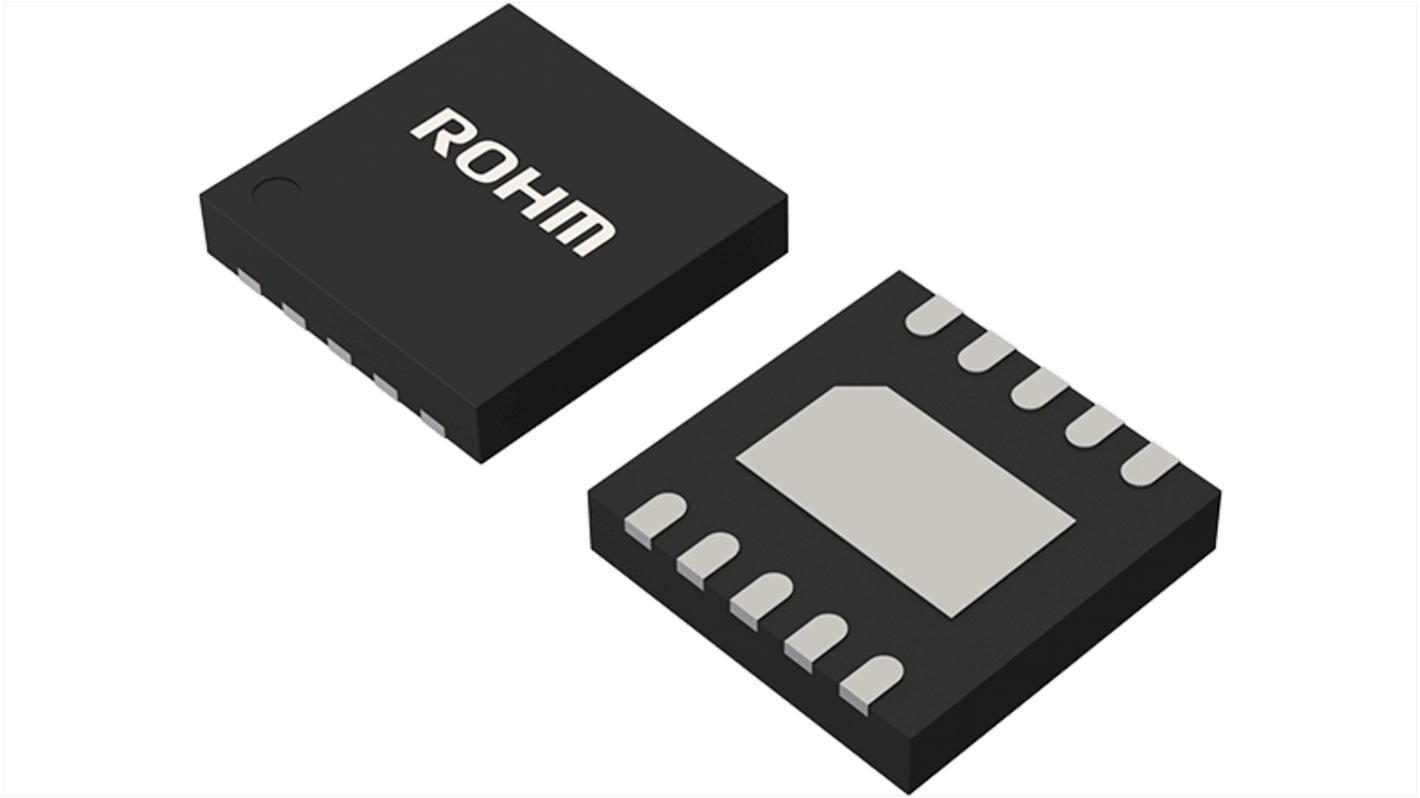

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 4000 units)*
$4,232.00
(exc. GST)
$4,656.00
(inc. GST)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 4000 - 16000 | $1.058 | $4,232.00 |
| 20000 + | $0.953 | $3,812.00 |
*price indicative
- RS Stock No.:
- 240-3972
- Mfr. Part No.:
- BD61248NUX-E2
- Brand:
- ROHM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Motor Driver IC | |
| Motor Type | Brushless | |
| Configuration | H Bridge | |
| Mount Type | Surface | |
| Package Type | VSON | |
| Pin Count | 10 | |
| Output Current | 1.2A | |
| Maximum Supply Voltage | 16V | |
| Minimum Supply Voltage | 4.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Series | BD61248NUX | |
| Length | 3mm | |
| Height | 0.6mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Motor Driver IC | ||
Motor Type Brushless | ||
Configuration H Bridge | ||
Mount Type Surface | ||
Package Type VSON | ||
Pin Count 10 | ||
Output Current 1.2A | ||
Maximum Supply Voltage 16V | ||
Minimum Supply Voltage 4.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Series BD61248NUX | ||
Length 3mm | ||
Height 0.6mm | ||
Automotive Standard No | ||
The ROHM multifunction single-phase full-wave fan motor driver is composed of H-bridge power DMOS FET. It realizes the quietness of the motor by PWM soft switching. The speed is controllable by PWM Input.
Quick start and start assist
Lock protection and automatic restart
High speed detection protection
Rotation speed pulse signal output (FG)
