TE Connectivity 1-Axis Surface Accelerometer 2 V 10 V, LCC, 8-Pin
- RS Stock No.:
- 262-4554
- Mfr. Part No.:
- 3038-2000
- Brand:
- TE Connectivity

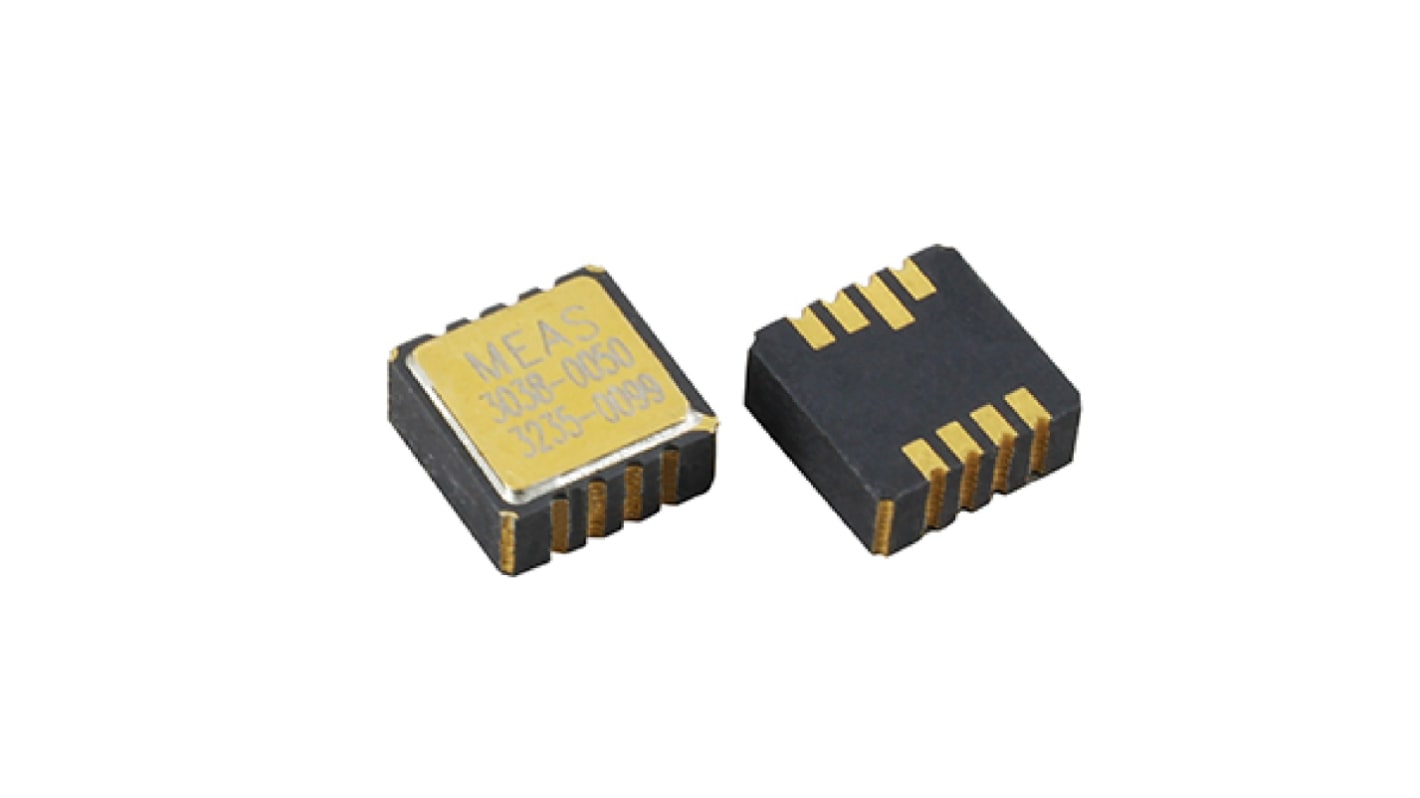

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
$323.20
(exc. GST)
$355.52
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 50 unit(s) shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | $323.20 |
| 10 - 24 | $292.86 |
| 25 - 49 | $282.77 |
| 50 + | $277.72 |
*price indicative
- RS Stock No.:
- 262-4554
- Mfr. Part No.:
- 3038-2000
- Brand:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Accelerometer | |
| Sensor Type | Accelerometer | |
| Number of Axis | 1 | |
| Technology | Accelerometer | |
| Mount Type | Surface | |
| Maximum Frequency Response | 4500Hz | |
| Minimum Frequency Response | 0Hz | |
| Minimum Supply Voltage | 2V | |
| Package Type | LCC | |
| Maximum Supply Voltage | 10V | |
| Minimum Operating Temperature | -55°C | |
| Sensitivity | 0.08mV/g | |
| Pin Count | 8 | |
| Maximum Operating Temperature | 125°C | |
| Width | 7.5 mm | |
| Length | 7.5mm | |
| Series | 3038 | |
| Height | 3.3mm | |
| Standards/Approvals | CS-SENS-0100 NIST Traceable Amplitude Calibration at 100Hz and 5Vdc Excitation | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Accelerometer | ||
Sensor Type Accelerometer | ||
Number of Axis 1 | ||
Technology Accelerometer | ||
Mount Type Surface | ||
Maximum Frequency Response 4500Hz | ||
Minimum Frequency Response 0Hz | ||
Minimum Supply Voltage 2V | ||
Package Type LCC | ||
Maximum Supply Voltage 10V | ||
Minimum Operating Temperature -55°C | ||
Sensitivity 0.08mV/g | ||
Pin Count 8 | ||
Maximum Operating Temperature 125°C | ||
Width 7.5 mm | ||
Length 7.5mm | ||
Series 3038 | ||
Height 3.3mm | ||
Standards/Approvals CS-SENS-0100 NIST Traceable Amplitude Calibration at 100Hz and 5Vdc Excitation | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The TE Connectivity model 3038 accelerometer designed for application durability in extreme temperature, vibration and shock environments. The Model 3038 helps improve sensing confidence and allows for simple installation with a hermetically sealed SMD design. It incorporates a gas damped piezo resistive MEMS sensing element providing outstanding long term stability.
Low power consumption
DC response, gas damping
