	Brand	ams OSRAM
	Sensor Type	Position Sensor
	Product Type	Position Sensor
	Number of Axis	1
	Technology	Digital
	Mount Type	Surface
	Interface Type	I2C, SPI
	Magnetic Type	Hall
	Maximum Frequency Response	12.4kHz
	Minimum Frequency Response	10.2kHz
	Minimum Supply Voltage	3V
	Package Type	TSSOP
	Maximum Supply Voltage	5.5V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	150°C
	Pin Count	14
	Height	1.2mm
	Series	AS5048B
	Standards/Approvals	No
	Width	6.4 mm
	Length	5mm
	Response Time	90.7μs
	Automotive Standard	No
	Supply Current	15mA

	Select all
	Brand ams OSRAM
	Sensor Type Position Sensor
	Product Type Position Sensor
	Number of Axis 1
	Technology Digital
	Mount Type Surface
	Interface Type I2C, SPI
	Magnetic Type Hall
	Maximum Frequency Response 12.4kHz
	Minimum Frequency Response 10.2kHz
	Minimum Supply Voltage 3V
	Package Type TSSOP
	Maximum Supply Voltage 5.5V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 150°C
	Pin Count 14
	Height 1.2mm
	Series AS5048B
	Standards/Approvals No
	Width 6.4 mm
	Length 5mm
	Response Time 90.7μs
	Automotive Standard No
	Supply Current 15mA

DataSheet - AS5048B-HTSP

The ams AG 14-bit magnetic hall sensor with high resolution output which IC measures the absolute position of the magnet’s rotation angle and consists of hall sensor, analogue digital converter and digital signal processing. It is easy to use and has a low material cost and in this no external programmer is needed.

Immune to external magnetic stray fields

It has zero position programmable via SPI or I2C

Temperature range is -40°C to 150°C

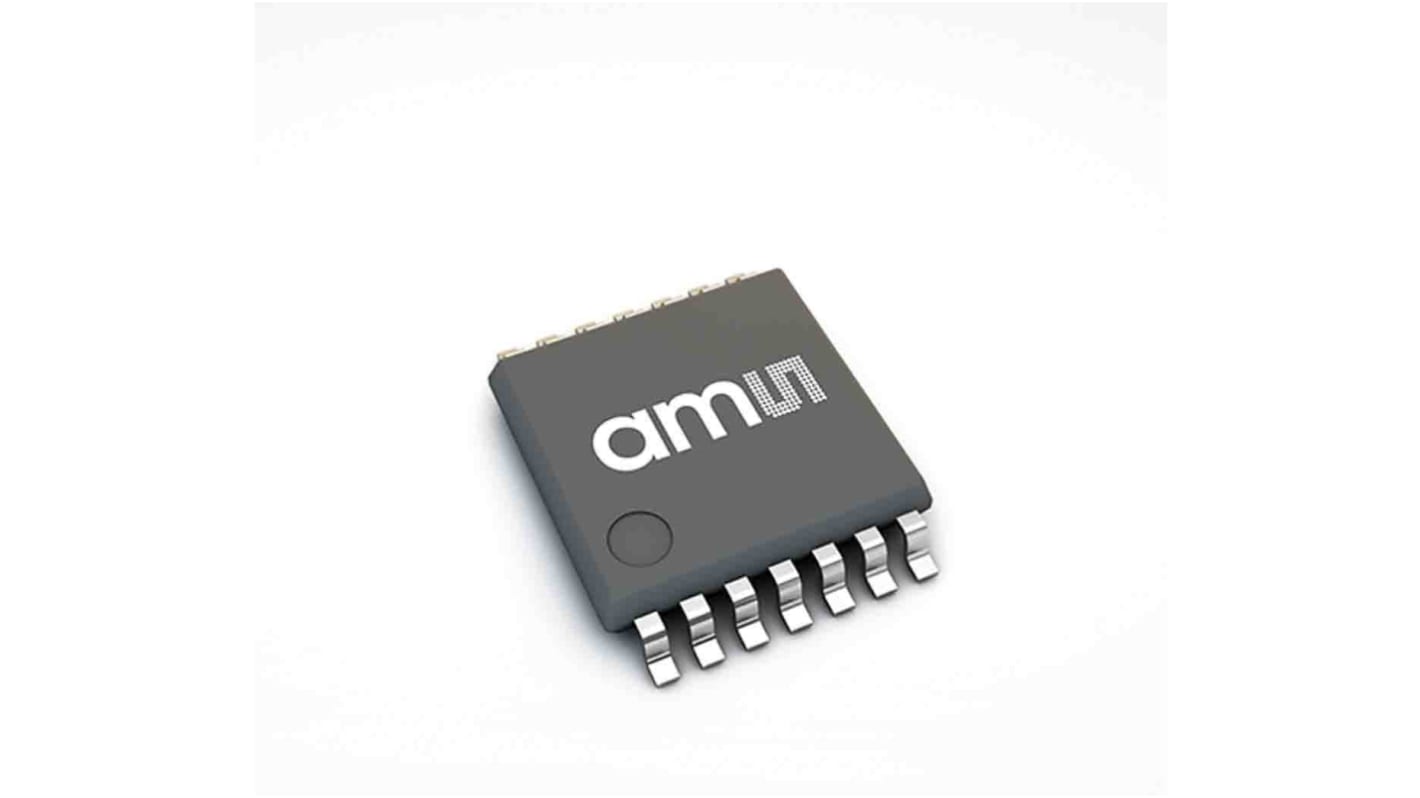

ams OSRAM 1-Axis Surface Position Sensor 3 V 5.5 V, I2C, SPI, TSSOP, 14-Pin
