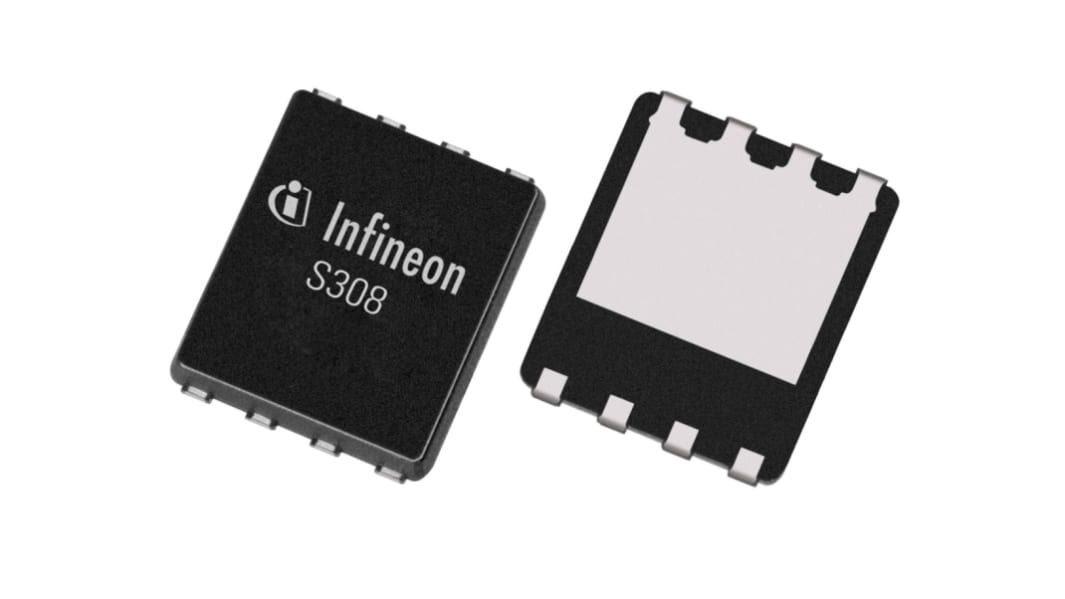

P-Channel MOSFET, 510 mA, 20 V, 8-Pin PQFN 3 x 3 Infineon BSZ15DC02KDHXTMA1
- RS Stock No.:
- 250-0563
- Mfr. Part No.:
- BSZ15DC02KDHXTMA1
- Brand:
- Infineon
On back order for despatch 30/04/2025, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 5000)
$0.80
(exc. GST)
$0.88
(inc. GST)
| Units | Per unit | Per Reel* |
| 5000 - 5000 | $0.80 | $4,000.00 |
| 10000 - 10000 | $0.72 | $3,600.00 |
| 15000 + | $0.648 | $3,240.00 |
| *price indicative | ||
- RS Stock No.:
- 250-0563
- Mfr. Part No.:
- BSZ15DC02KDHXTMA1
- Brand:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details
The Infineon makes this Complementary P + N channel, Enhancement mode. It is avalanche rated and halogen-free. This device is OptiMOS 2 + OptiMOS P 2 Small Signal Transistor with Super Logic level (2.5V rated). It has common drain and it is Avalanche rated. The operating temperature is 175°C. It is 100% lead-free, Halogen-free.
Super Logic level (2.5V rated)
100% lead-free
100% lead-free
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 510 mA |
| Maximum Drain Source Voltage | 20 V |
| Package Type | PQFN 3 x 3 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
