Infineon CoolMOS Type N-Channel MOSFET, 2.5 A, 800 V Enhancement, 3-Pin SOT-223

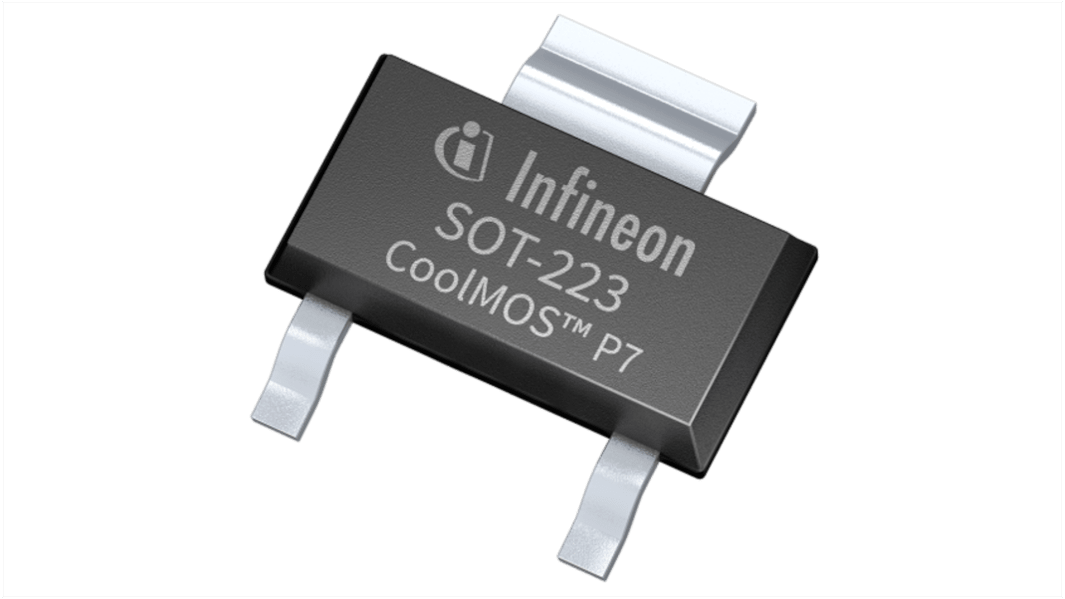

This image is representative of the product range

View all MOSFETs
Bulk discount available

Subtotal (1 reel of 3000 units)*

$1,404.00

(exc. GST)

$1,545.00

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • Plus 3,000 unit(s) shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 - 12000$0.468$1,404.00
15000 +$0.421$1,263.00

*price indicative

RS Stock No.:
222-4688
Mfr. Part No.:
IPN80R2K4P7ATMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Channel Type

Type N

Product Type

MOSFET

Maximum Continuous Drain Current Id

2.5A

Maximum Drain Source Voltage Vds

800V

Package Type

SOT-223

Series

CoolMOS

Mount Type

Surface

Pin Count

3

Maximum Drain Source Resistance Rds

2.4mΩ

Channel Mode

Enhancement

Typical Gate Charge Qg @ Vgs

7.5nC

Minimum Operating Temperature

-55°C

Maximum Gate Source Voltage Vgs

20 V

Maximum Power Dissipation Pd

6.3W

Forward Voltage Vf

0.9V

Maximum Operating Temperature

150°C

Width

3.7 mm

Length

6.7mm

Standards/Approvals

No

Height

1.8mm

Automotive Standard

No

The Infineon design of Cool MOS™ P7 series sets a new benchmark in 800V super junction technologies and combines best-in-class performance with state of the art ease-of-use, resulting from Infineon’s over 18 years pioneering super junction technology innovation.

Product validation acc. JEDEC Standard

Low switching losses (Eoss) Integrated ESD protection diode

Excellent thermal behaviour
