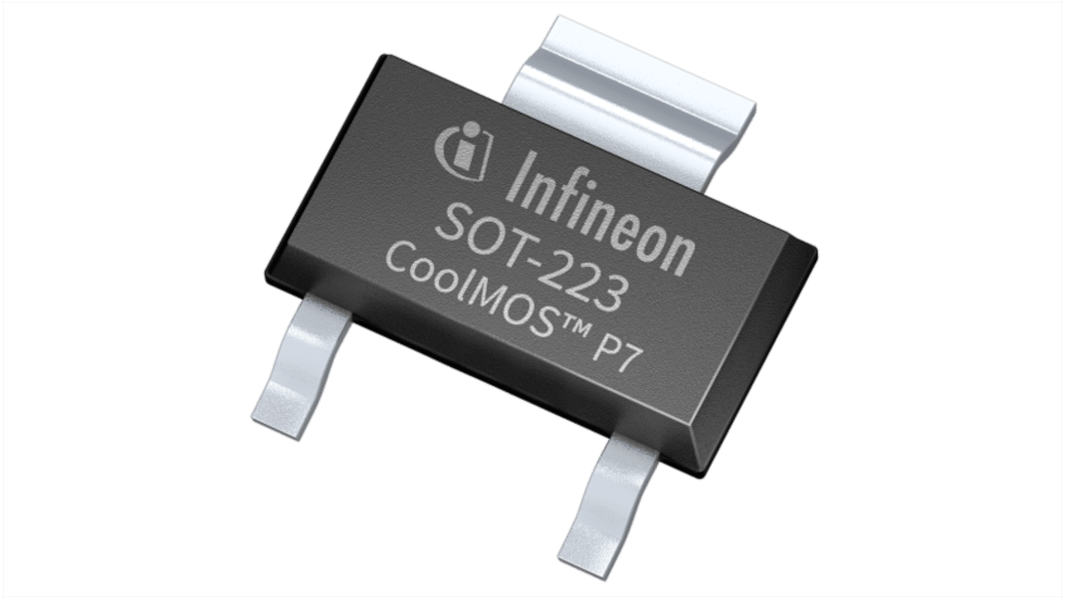

N-Channel MOSFET, 6.5 A, 700 V, 3-Pin SOT-223 Infineon IPN70R750P7SATMA1
- RS Stock No.:
- 217-2549
- Mfr. Part No.:
- IPN70R750P7SATMA1
- Brand:
- Infineon
8600 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (On a Reel of 3000)
$0.426
(exc. GST)
$0.469
(inc. GST)
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 3000 | $0.426 | $1,278.00 |
| 6000 - 9000 | $0.418 | $1,254.00 |
| 12000 + | $0.409 | $1,227.00 |
*price indicative
- RS Stock No.:
- 217-2549
- Mfr. Part No.:
- IPN70R750P7SATMA1
- Brand:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details
The Infineon CoolMOS™ P7 superjunction (SJ) MOSFET is designed to address typical challenges in the low power SMPS market, by offering excellent performance and ease-of-use, enabling improved form factors and price competitiveness. The SOT-223 package is a cost effective one-to-one drop-in alternative to DPAK that also enables footprint reduction in some designs. It can be placed on a typical DPAK footprint and shows comparable thermal performance. This combination makes CoolMOS™ P7 in SOT-223 a perfect fit for its target applications.
Best-fit performance superjunction technology
Cost-effective package solution
Best-in-class price/performance ratio
Cost-effective package solution
Best-in-class price/performance ratio
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 6.5 A |
| Maximum Drain Source Voltage | 700 V |
| Package Type | SOT-223 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 750 mO |
| Maximum Gate Threshold Voltage | 3.5V |
| Number of Elements per Chip | 1 |
