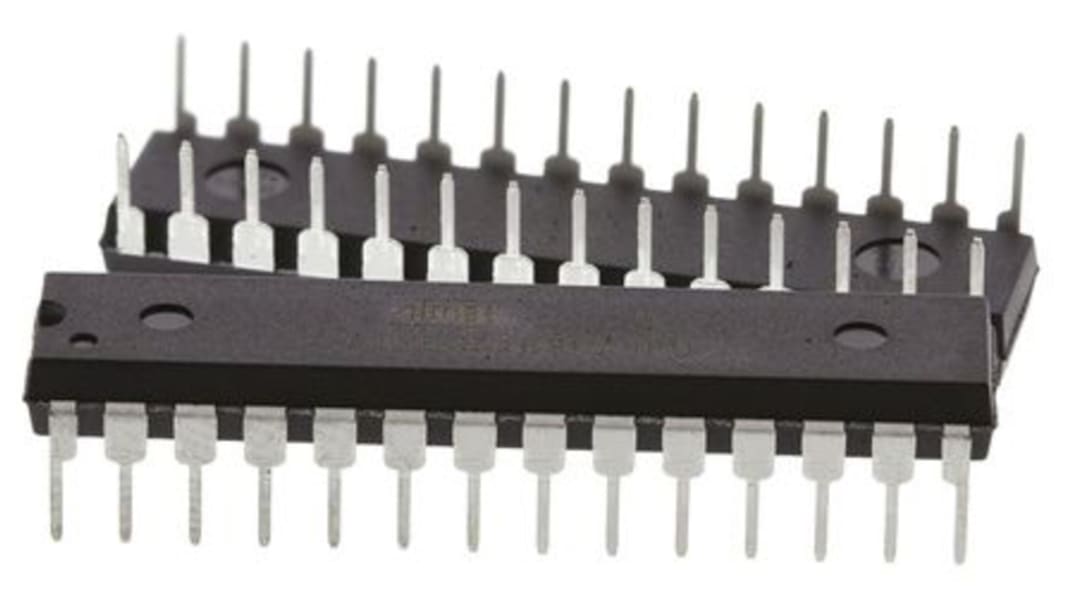

Microchip ATMEGA168PA-PU, 8bit AVR Microcontroller, ATmega, 20MHz, 16 kB Flash, 28-Pin PDIP

RS Stock No.:: 127-8268
Mfr. Part No.:: ATMEGA168PA-PU
Brand:: Microchip

Microchip ATMEGA168PA-PU, 8bit AVR Microcontroller, ATmega, 20MHz, 16 kB Flash, 28-Pin PDIP

Bulk discount available

Subtotal (1 pack of 2 units)**

$9.45

(exc. GST)

$10.39

(inc. GST)

6 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit	Per Pack**
2 - 8	$4.725	$9.45
10 +	$4.67	$9.34

**price indicative

Compare

RS Stock No.:: 127-8268
Mfr. Part No.:: ATMEGA168PA-PU
Brand:: Microchip

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Family Name	ATmega
Package Type	PDIP
Mounting Type	Through Hole
Pin Count	28
Device Core	AVR
Data Bus Width	8bit
Program Memory Size	16 kB
Maximum Frequency	20MHz
RAM Size	1 kB
USB Channels	0
Number of PWM Units	1
Number of SPI Channels	2
Typical Operating Supply Voltage	1.8 → 5.5 V
Number of I2C Channels	1
Number of UART Channels	1
Number of CAN Channels	0
Number of USART Channels	1
Height	4.06mm
Dimensions	34.79 x 7.49 x 4.06mm
Pulse Width Modulation	1 (6 Channel)
Width	7.49mm
Number of Ethernet Channels	0
Maximum Number of Ethernet Channels	0
Minimum Operating Temperature	-40 °C
Instruction Set Architecture	RISC
Program Memory Type	Flash
Maximum Operating Temperature	+85 °C
Length	34.79mm
ADCs	6 x 10 bit
Number of ADC Units	1

Microchip ATMEGA168PA-PU, 8bit AVR Microcontroller, ATmega, 20MHz, 16 kB Flash, 28-Pin PDIP

FREE delivery for orders over $60.00 ex GST

8-Bit PicoPower megaAVR Family Microcontrollers

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
