Honeywell Pin Plunger Micro Switch, Quick Connect Terminal, 5A, 250 V ac, 250 V dc, SPDT, IP40

RS Stock No.:: 205-9804
Mfr. Part No.:: V19S05-CZ050B01
Brand:: Honeywell

Honeywell Pin Plunger Micro Switch, Quick Connect Terminal, 5A, 250 V ac, 250 V dc, SPDT, IP40

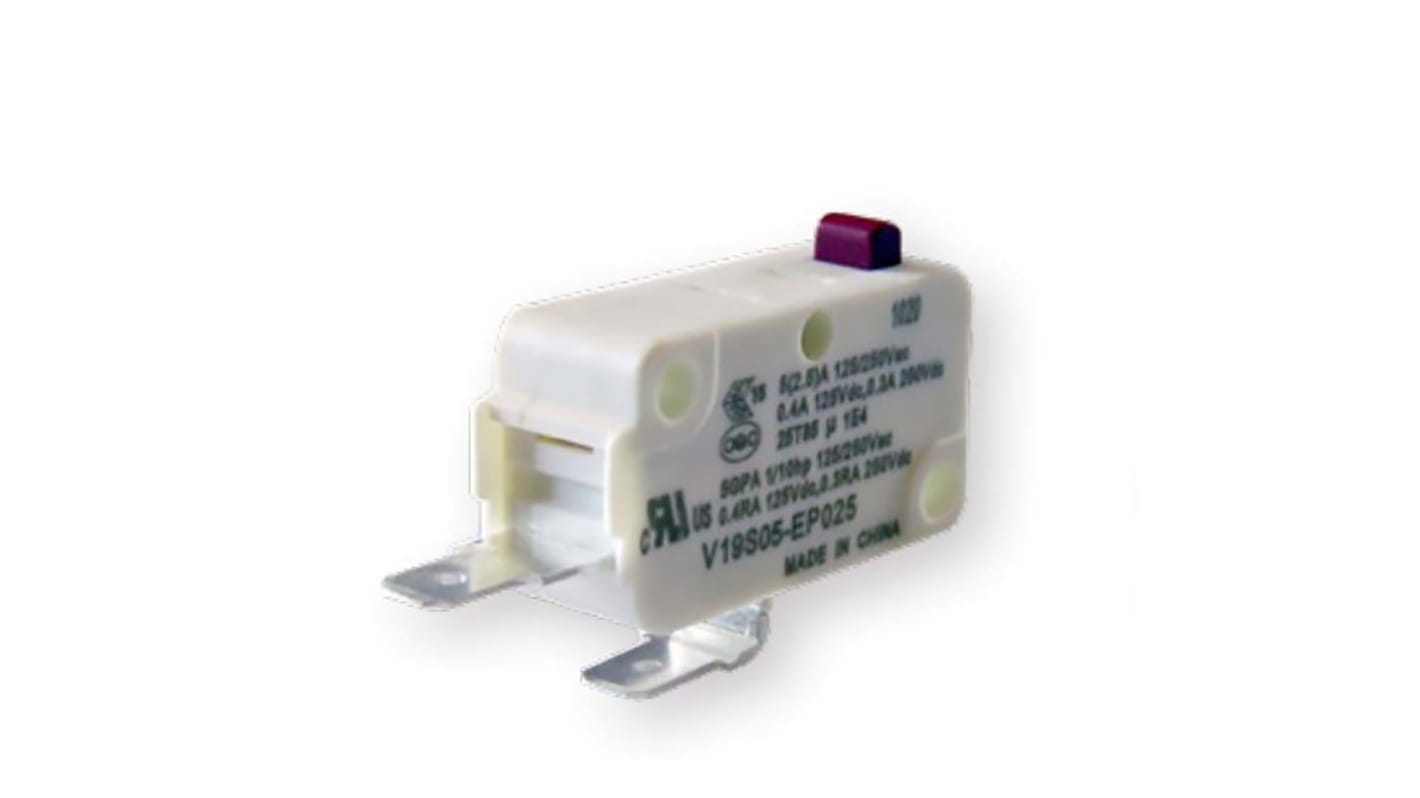

This image is representative of the product range

Bulk discount available

Subtotal (1 box of 250 units)*

$1,386.50

(exc. GST)

$1,525.25

(inc. GST)

FREE delivery for orders over $60.00 ex GST

Last RS stock

Final 250 unit(s), ready to ship from another location

Units	Per unit	Per Box*
250 - 250	$5.546	$1,386.50
500 - 750	$5.424	$1,356.00
1000 +	$5.308	$1,327.00

*price indicative

RS Stock No.:: 205-9804
Mfr. Part No.:: V19S05-CZ050B01
Brand:: Honeywell

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell
	Actuator Type	Pin Plunger
	Product Type	Micro Switch
	Terminal Type	Quick Connect
	Housing Material	Thermoplastic Polybutylene Terephthalate
	Contact Configuration	SPDT
	IP Rating	IP40
	Operating Force	0.5N
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	85°C
	Microswitch Type	Unsealed
	Contact AC Voltage	250V ac
	Contact DC Voltage	250V dc
	Standards/Approvals	CSA, CQC, cUL, ENEC, RoHS, UL
	Depth	15.9mm
	Length	27.8mm
	Hazardous Area Certification	NO
	Mechanical Life	60Cycles
	Series	V19

	Select all
	Brand Honeywell
	Actuator Type Pin Plunger
	Product Type Micro Switch
	Terminal Type Quick Connect
	Housing Material Thermoplastic Polybutylene Terephthalate
	Contact Configuration SPDT
	IP Rating IP40
	Operating Force 0.5N
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 85°C
	Microswitch Type Unsealed
	Contact AC Voltage 250V ac
	Contact DC Voltage 250V dc
	Standards/Approvals CSA, CQC, cUL, ENEC, RoHS, UL
	Depth 15.9mm
	Length 27.8mm
	Hazardous Area Certification NO
	Mechanical Life 60Cycles
	Series V19

Datasheet - V19S05-CZ050B01

Honeywell V19 Series Micro Switch, 5A Switch Contact Current, 0.5N Operating Force - V19S05-CZ050B01

This micro switch is a Compact electromechanical device designed to provide reliable single-pole changeover switching in control and detection assemblies. It is intended for use where a low actuation force and Compact footprint are needed, typically in industrial automation and electronic control panels. The component is unsealed and suited to environments that do not demand ingress protection beyond IP40.

Features and Benefits:

• Pin-plunger actuator delivers precise mechanical detection at 0.5 N operating force
• Rated for 5A switching to support moderate current loads
• Accepts up to 250V AC or 250V DC for versatile supply compatibility
• Quick-connect terminals enable fast, tool-free wiring connections
• Thermoplastic PBT housing offers stable electrical insulation
• Certified to multiple safety standards for regulated system integration

Applications

• Suitable for position sensing in automated machinery
• Ideal for limit switching on electromechanical actuators
• Used with control panels requiring Compact input switches
• Can be used for user-interface micro switches on industrial equipment
• Used for end-of-travel detection in small motion systems

What temperature range can it operate within?

It functions across a cold-to-warm span from -25 °C up to a maximum of 85 °C without derating listed electrical ratings.

How Durable is it under repeated actuation?

The device is specified with a mechanical life of 60 cycles for applications where only occasional switching is required.

What form factor should I allow for mounting?

The component presents a Compact rectangular profile measuring 27.8 x 10.3 x 15.9mm and uses a pin-style plunger for actuation.

Which certifications ensure conformity for industrial use?

It carries approvals including CSA, CQC, cUL, ENEC, RoHS and UL for deployment in certified equipment.
